Viessmann

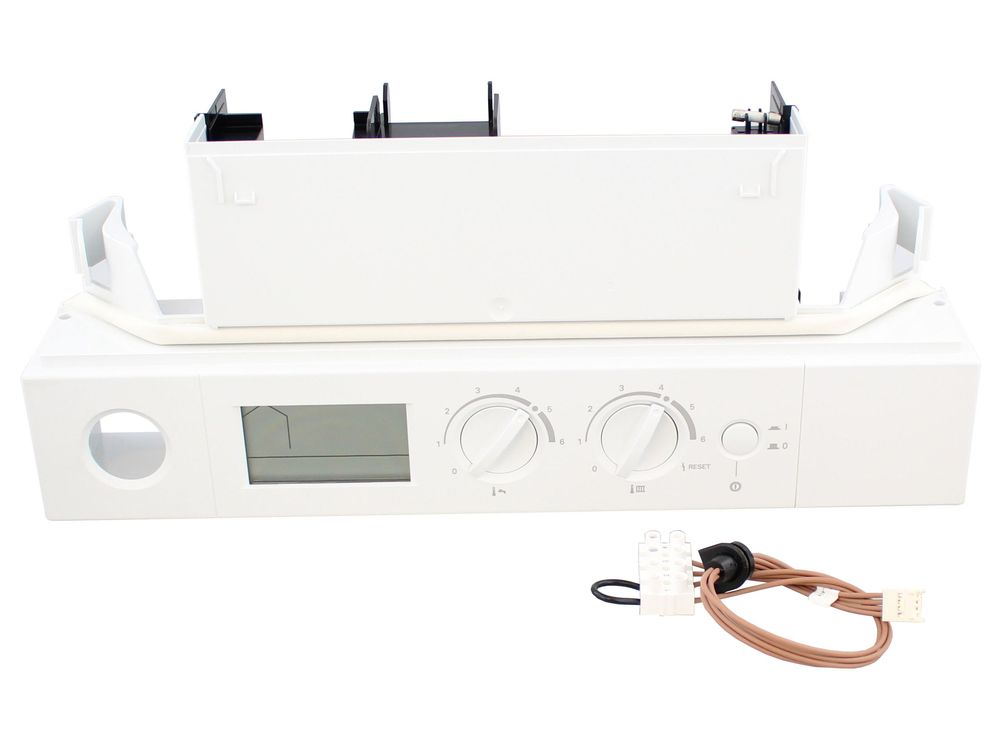

Viessmann Control VBC113-C10.001 PCB 7841748
Viessmann control PCB, part number 7841748, marked VBC113-C10.001, for Vitodens 100-W WB1C system and combi boilers.
At a glance
- Appliance family: Vitodens 100-W WB1C
- Also known as 2321242
£404.35
£336.96 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is the Viessmann control printed circuit board, part number 7841748, carrying the designation CONTROL VBC113-C10.001 PCB. It is the control console board used on Vitodens 100-W WB1C appliances, where it governs boiler operation and communicating controls. It is listed for both system and combi variants of the range.
Signs this part needs replacing
- The boiler fails to power up or the display and controls remain blank
- Repeated lockouts or fault codes that persist after the usual resets
- Controls or dial inputs stop responding, or the display behaves erratically
- Visible damage to the board, such as burnt tracks, discoloured components or corrosion
Before you order
- Confirm the appliance is a Vitodens 100-W WB1C by checking the data badge
- Match the serial number against the fitment list above
- Confirm whether the boiler is a system or combi variant and note its kW rating
- Check the designation on the existing board reads CONTROL VBC113-C10.001
Compliance
| Alternative numbers | 2321242 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS WB1C 100-W 19 KW SYSTEM SERIAL No. 7499423 | 41-819-26 | 41-819-26 | — | — |
| VIESSMANN VITODENS WB1C 100-W 26 KW SYSTEM SERIAL No. 7499424 | 41-819-27 | 41-819-27 | — | — |
| VIESSMANN VITODENS WB1C 100-W 26KW COMBI SERIAL No. 7499425 | 47-819-20 | 47-819-20 | — | — |
| VIESSMANN VITODENS WB1C 100-W 30 KW COMBI SERIAL No. 7499427 | 47-819-21 | 47-819-21 | — | — |
| VIESSMANN VITODENS WB1C 100-W 30 KW SYSTEM SERIAL No. 7499426 | 41-819-28 | 41-819-28 | — | — |
| VIESSMANN VITODENS WB1C 100-W 30KW GB COMBI SERIAL No. 7441745 | 47-819-21 | 47-819-21 | — | — |
| VIESSMANN VITODENS WB1C 100-W 35 KW COMBI SERIAL No. 7499429 | 47-819-22 | 47-819-22 | — | — |
| VIESSMANN VITODENS WB1C VITODENS 100-W 35 KW SYSTEM SERIAL No. 7499428 | 41-819-29 | 41-819-29 | — | — |
