Viessmann

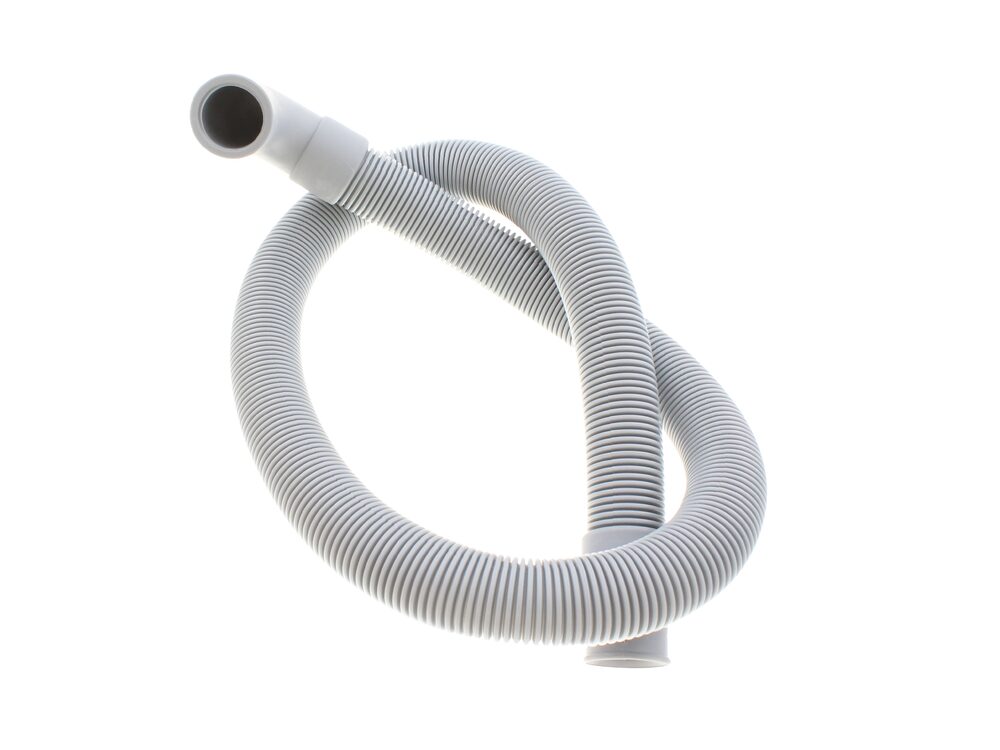

Viessmann Condensate Pipe 7841062
Corrugated condensate pipe, 19 x 800, supplied with an elbow, for Viessmann Vitodens gas boilers.
At a glance
- Also known as 2321484
£27.80
£23.17 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann condensate pipe, 19 x 800, is a corrugated condensate drainage component supplied with an elbow. It is used on Vitodens 100-W, 111-W and 200-W gas boiler installations to carry condensate away from the appliance. The pipe is identified by Viessmann part number 7841062.
Signs this part needs replacing
- Visible cracking, splitting or perishing of the corrugated wall
- Condensate leaking or weeping from the pipe run or elbow joint
- Blockage or restriction that cannot be cleared through normal cleaning
- Discolouration or hardening of the plastic indicating age-related deterioration
- The pipe has been disturbed or damaged during servicing and no longer seals correctly
Before you order
- Confirm the boiler model and serial number against the fitment list
- Check the existing pipe routing and elbow position before removal
- Inspect the condensate trap and downstream drainage for blockages while access is available
- Verify the pipe diameter and length markings on the existing component match those stated for this part
Compliance
| Alternative numbers | 2321484 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 100-W B1HA 19 KW SYSTEM ERP SERIAL No. 7543420 | 41-819-36 | 41-819-36 | — | — |
| VIESSMANN VITODENS 100-W B1HA 26 KW SYSTEM ERP SERIAL No. 7543421 | 41-819-37 | 41-819-37 | — | — |
| VIESSMANN VITODENS 100-W B1HA 26 SERIAL No. 7560853 | — | — | — | |
| VIESSMANN VITODENS 100-W B1HA 30 KW SYSTEM ERP SERIAL No. 7543423 | 41-819-38 | 41-819-38 | — | — |
| VIESSMANN VITODENS 100-W B1HA 35 KW SYSTEM ERP SERIAL No. 7543425 | 41-819-39 | 41-819-39 | — | — |
| VIESSMANN VITODENS 100-W B1HA 35 SERIAL No. 7560854 | — | — | — | |
| VIESSMANN VITODENS 100-W B1HC 19 KW SYSTEM SERIAL No. 7570671 | 41-819-40 | 41-819-40 | — | — |
| VIESSMANN VITODENS 100-W B1HC 26 KW SYSTEM SERIAL No. 7570672 | 41-819-41 | 41-819-41 | — | — |
| VIESSMANN VITODENS 100-W B1HC 30 KW SYSTEM SERIAL No. 7570674 | 41-819-42 | 41-819-42 | — | — |
| VIESSMANN VITODENS 100-W B1HC 35 KW SYSTEM SERIAL No. 7570676 | 41-819-43 | 41-819-43 | — | — |
Showing 10 of 42 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
