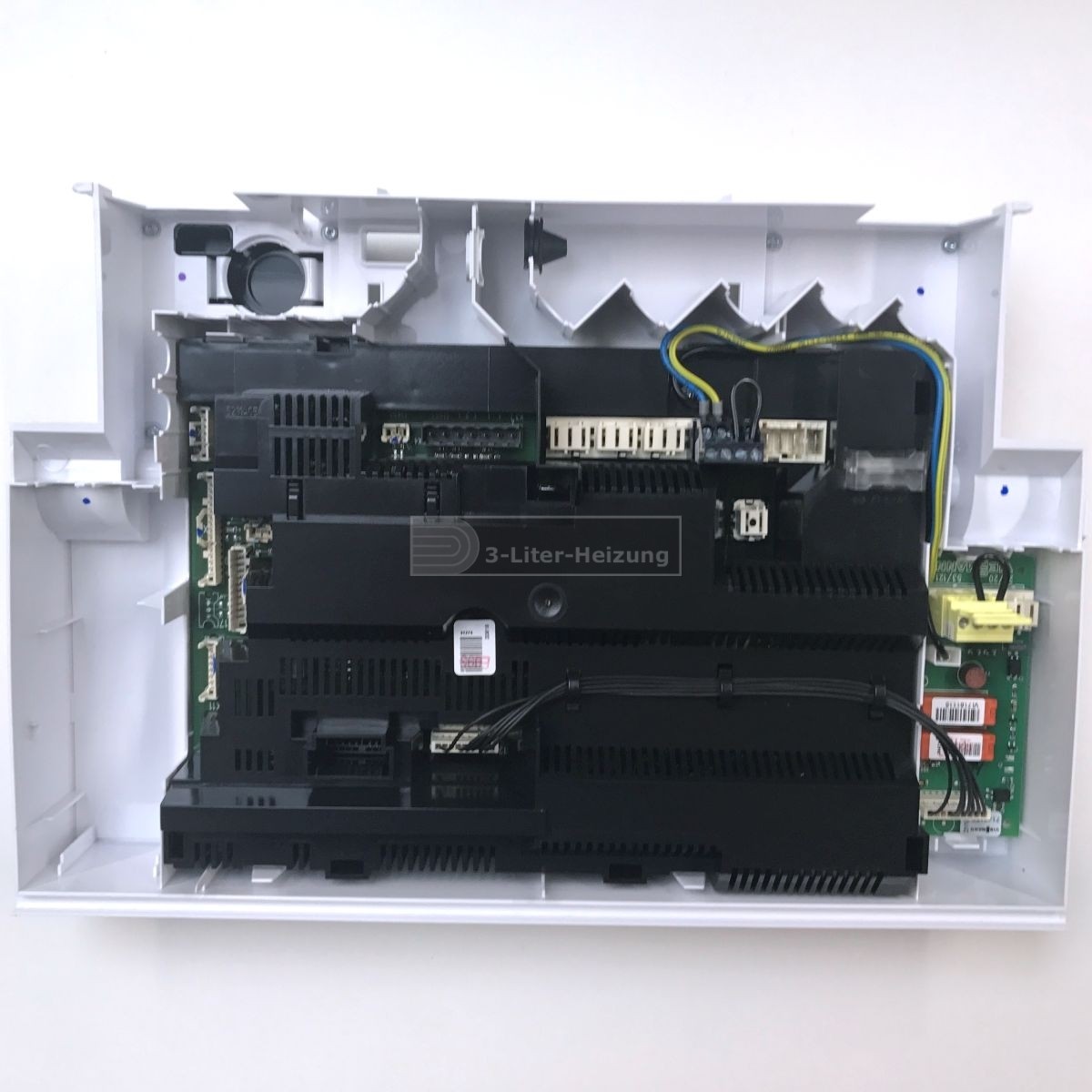

Viessmann Control PCB VBC132-A06.401 7838380
At a glance
- Part type: Control PCB
- Appliance family: Vitodens 222-F / 242-F
- Also known as 2321248
£980.71
£817.26 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann 7838380 is a control printed circuit board (PCB) carrying the board designation VBC132-A06.401. It is the main control board for Vitodens 222-F and 242-F gas condensing boilers, handling the operating sequence, burner management, temperature regulation and communication with the boiler's user interface. It is supplied as a replacement board for the appliance variants listed below.
Signs this part needs replacing
- The boiler fails to fire or repeatedly locks out with no mechanical fault evident.
- The display or control panel is blank, dead or unresponsive to input.
- Fault codes relating to the control unit appear and cannot be cleared.
- The boiler runs intermittently or shuts down unexpectedly during a demand.
- The burner or pump does not respond when heat or hot water is called for.
Before you order
- Check the GC number on the appliance data badge against the compatibility table above.
- Confirm the existing board carries the designation VBC132-A06.401 before ordering.
- Cross-reference the alternative part number 2321248 against older stock or documentation.
- Isolate the electrical supply before fitting, and have the work carried out by a competent engineer.
Mechanical
| Part type | Control PCB |
|---|---|
| Appliance family | Vitodens 222-F / 242-F |
Compliance
| Manufacturer part number (MPN) | 7838380 |
|---|---|
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 2321248 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 222-F FS2A 19KW MODEL NUMBER SERIAL No. 7419987 | 47-819-15 | 47-819-15 | — | — |
| VIESSMANN VITODENS 222-F FS2A 26KW MODEL NUMBER SERIAL No. 7374977 | 47-819-16 | 47-819-16 | — | — |
| VIESSMANN VITODENS 222-F FS2A 35KW MODEL NUMBER SERIAL No. 7374978 | 47-819-17 | 47-819-17 | — | — |
| VIESSMANN VITODENS 242-F B2SA 19KW SERIAL No. 7423015 | 47-819-18 | 47-819-18 | — | — |
| VIESSMANN VITODENS 242-F B2SA 26KW SERIAL No. 7374980 | 47-819-19 | 47-819-19 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
