Viessmann

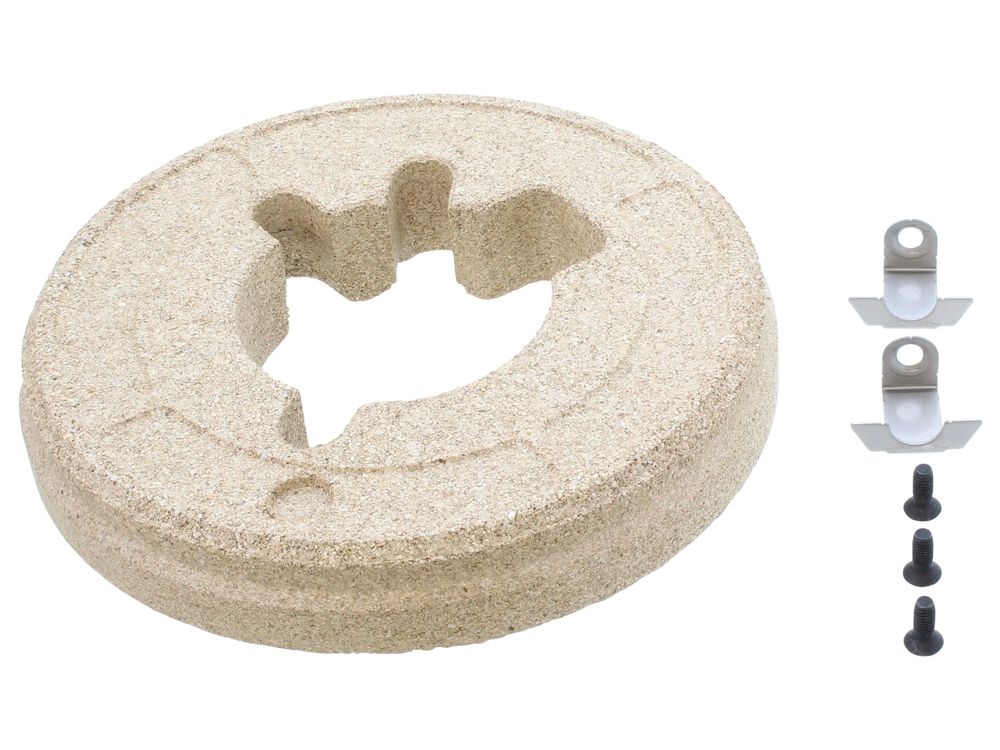

Viessmann Insulation Burner Tube 7836998
Viessmann 7836998 insulation burner tube for Vitodens 200-W and Vitodens 222-F series boilers.
At a glance
- Also known as 2321620
£69.50
£57.92 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann 7836998 is an insulation component for the burner tube on Viessmann Vitodens gas boilers. It sits at the burner tube location, insulating the burner assembly from the surrounding casing. It is supplied by Viessmann as a service part for the Vitodens 200-W and Vitodens 222-F families.
Signs this part needs replacing
- Visible cracking, crumbling or embrittlement of the insulation material
- Discolouration or heat damage around the burner tube area
- Insulation breaking up or dropping away from the burner tube when the burner is removed
- Deterioration or loss of material found during routine boiler servicing or combustion checks
Before you order
- Confirm the boiler model, for example B2HA, B2HB, B2KA, B2KB or B2TA, against the fit list above
- Check the boiler serial number against the applicable fit line for your model
- Confirm the existing part number 7836998 before ordering
- Inspect the burner tube and surrounding seals at the same time, as these are accessed together
Compliance
| Alternative numbers | 2321620 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 200-W B2HA 19 KW SYSTEM SERIAL No. 7454868 | 41-819-32 | 41-819-32 | — | — |
| VIESSMANN VITODENS 200-W B2HA 19 SERIAL No. 7510828 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HA 28 SERIAL No. 7510829 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HA 30 KW SYSTEM SERIAL No. 7454871 | 41-819-34 | 41-819-34 | — | — |
| VIESSMANN VITODENS 200-W B2HA 35 KW SYSTEM SERIAL No. 7454873 | 41-819-35 | 41-819-35 | — | — |
| VIESSMANN VITODENS 200-W B2HA 35 SERIAL No. 7510830 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HB 19 KW SYSTEM SERIAL No. 7570787 | 41-819-32 | 41-819-32 | — | — |
| VIESSMANN VITODENS 200-W B2HB 26 KW SYSTEM SERIAL No. 7570788 | 41-819-33 | 41-819-33 | — | — |
| VIESSMANN VITODENS 200-W B2HB 30 KW SYSTEM SERIAL No. 7570790 | 41-819-34 | 41-819-34 | — | — |
| VIESSMANN VITODENS 200-W B2HB 35 KW SYSTEM SERIAL No. 7570792 | 41-819-35 | 41-819-35 | — | — |
Showing 10 of 22 compatible appliances.
