Viessmann

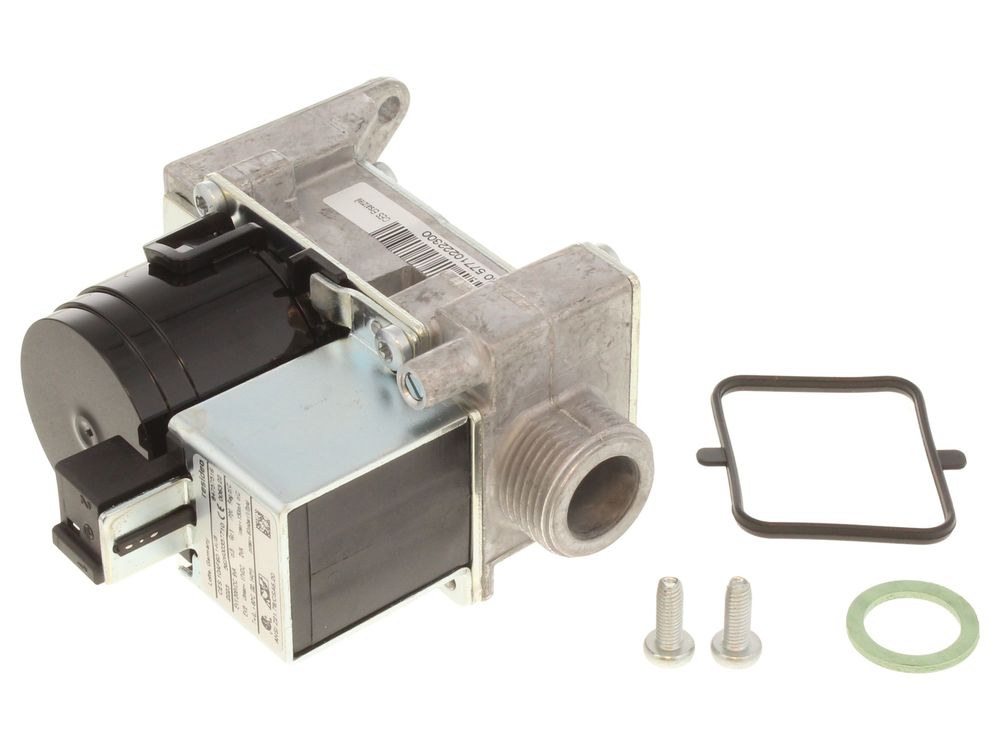

Viessmann Gas Valve CES W Gskts 7836324
Viessmann gas valve 7836324 supplied with gaskets, for Vitodens 200-W, 222-F and 242-F boilers.
At a glance
- Appliance family: Vitodens 200-W, Vitodens 222-F, Vitodens 242-F
- Also known as 2320834
£209.76
£174.80 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann Gas Valve CES W Gskts is a gas valve assembly supplied with gaskets, listed under part number 7836324. It controls the flow of gas to the burner in Viessmann Vitodens condensing boilers. It is used across the Vitodens 200-W, 222-F and 242-F appliance families.
Signs this part needs replacing
- The boiler fails to fire or drops out during a demand for heat or hot water
- Repeated lockouts or ignition faults traced back to the gas valve
- Unstable or erratic flame that will not hold steady across the burner
- Gas valve failing to modulate, causing poor output control
- Leaks or damage at the valve body or its gasket joints
Before you order
- Confirm the appliance model and serial number against the fit list before ordering
- Check that the existing valve is the CES type with gaskets
- Inspect the valve and gasket joints for signs of leakage or mechanical damage
- Gas valve work must be carried out by a competent, registered engineer
Compliance
| Alternative numbers | 2320834 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 200-W B2HA 19 KW SYSTEM SERIAL No. 7454868 | 41-819-32 | 41-819-32 | — | — |
| VIESSMANN VITODENS 200-W B2HA 30 KW SYSTEM SERIAL No. 7454871 | 41-819-34 | 41-819-34 | — | — |
| VIESSMANN VITODENS 200-W B2HA 35 KW SYSTEM SERIAL No. 7454873 | 41-819-35 | 41-819-35 | — | — |
| VIESSMANN VITODENS 200-W B2HA, 69 TO 99 KW SERIAL No. 7571045 | 41-819-61 | 41-819-61 | — | — |
| VIESSMANN VITODENS 200-W B2KA 26 KW COMBI SERIAL No. 7454870 | 47-819-28 | 47-819-28 | — | — |
| VIESSMANN VITODENS 200-W B2KA 30 KW COMBI SERIAL No. 7454872 | 47-819-29 | 47-819-29 | — | — |
| VIESSMANN VITODENS 200-W B2KA 35 KW COMBI SERIAL No. 7454874 | 47-819-30 | 47-819-30 | — | — |
| VIESSMANN VITODENS 200-W WB2B 19KW SERIAL No. 7248823 | 41-819-14 | 41-819-14 | — | — |
| VIESSMANN VITODENS 200-W WB2B 26KW SERIAL No. 7248824 | 41-819-15 | 41-819-15 | — | — |
| VIESSMANN VITODENS 200-W WB2B 26KW SERIAL No. 7248825 | 47-819-09 | 47-819-09 | — | — |
Showing 10 of 34 compatible appliances.
