Viessmann

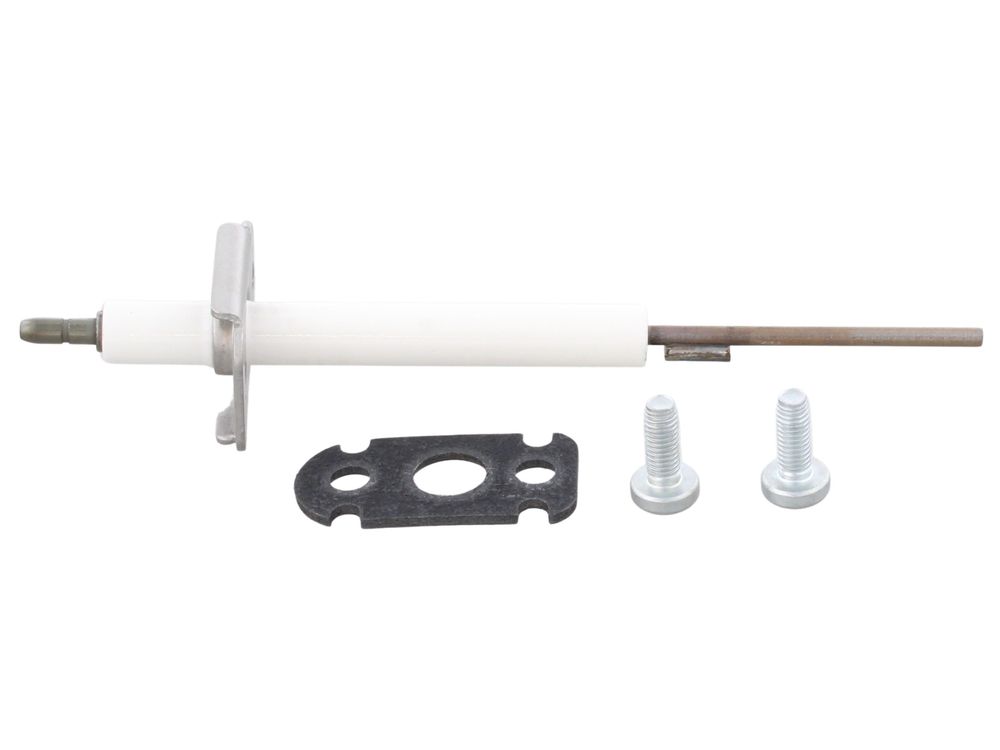

Viessmann Ionization Electrode C/W Gasket 7834235
Viessmann ionization electrode with gasket, part 7834235, for Vitodens 200-W WB2B boilers.
At a glance
- Appliance family: Vitodens 200-W WB2B
- Also known as 2321228
£54.34
£45.28 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is a Viessmann ionization electrode supplied complete with its gasket, part number 7834235. It is a flame-monitoring electrode used in the combustion circuit of Vitodens 200-W WB2B gas boilers, where it signals burner flame presence to the control PCB. The gasket is included as part of the assembly so the electrode can be refitted with a fresh seal.
Signs this part needs replacing
- Boiler repeatedly locks out or fails to prove flame after the burner has ignited
- Intermittent flame-loss faults logged by the control, often after the boiler has run for a period
- Difficult or delayed ignition with the burner lighting and then cutting out
- Visible damage to the electrode probe, ceramic insulator or its lead
- A deteriorated or hardened gasket at the electrode mounting point
Before you order
- Confirm the boiler model and serial number against the fitment list above, as the WB2B range covers several outputs and build batches
- Inspect the electrode and its lead for cracks, contamination or mechanical damage before replacing
- Check that the gasket seating face on the combustion cover is clean and undamaged so the new seal can seat properly
- Confirm the part number 7834235 matches the electrode currently fitted
Compliance
| Alternative numbers | 2321228 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 200-W WB2B-105 SERIAL No.7374869 | — | — | — | |
| VIESSMANN VITODENS 200-W WB2B-105 SERIAL No.7424194 | — | — | — | |
| VIESSMANN VITODENS 200-W WB2B-45 SERIAL No.7374866 | — | — | — | |
| VIESSMANN VITODENS 200-W WB2B-60 SERIAL No.7374867 | — | — | — | |
| VIESSMANN VITODENS 200-W WB2B-80 SERIAL No.7374868 | — | — | — | |
| VIESSMANN VITODENS 200-W WB2B-80 SERIAL No.7424193 | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
