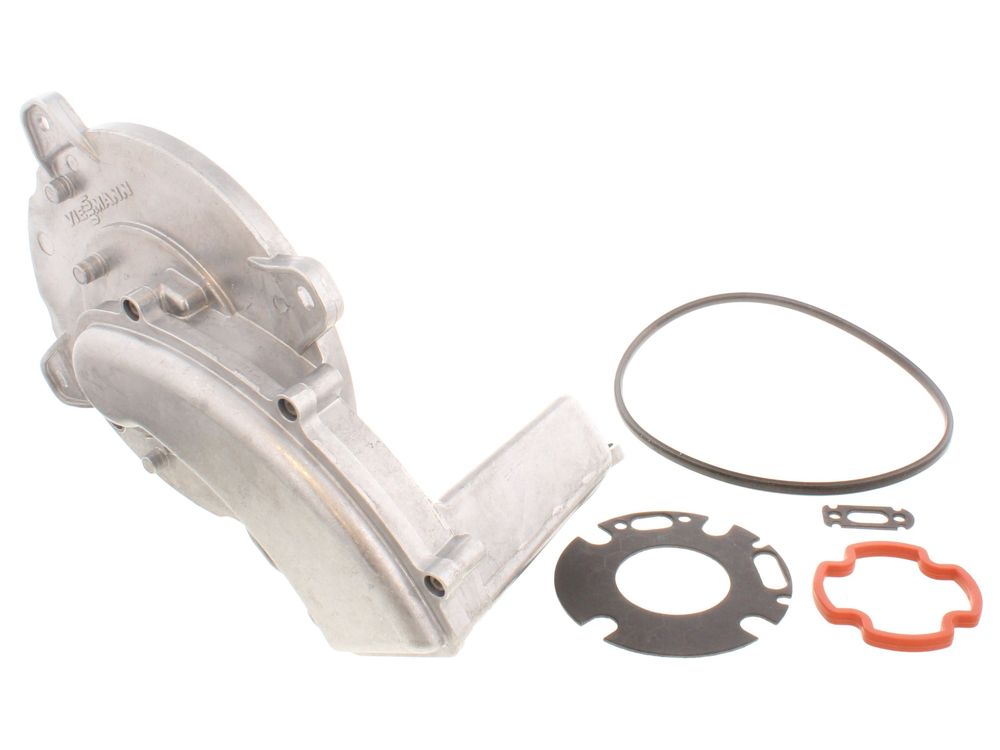

Viessmann Burner Door 7831348
Viessmann burner door, part number 7831348, a burner mounting flange assembly for Vitodens 100W Compact condensing boilers.
At a glance
- Also known as 2321790
£177.89
£148.24 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann burner door, part number 7831348, is the burner mounting flange assembly fitted to Vitodens 100W Compact condensing boilers. It closes and locates the burner at the combustion chamber face, keeping the combustion path sealed and correctly aligned. It is listed by Viessmann as the burner mounting flange assembly for B2HB 45-57 applications.
Signs this part needs replacing
- Heat damage, distortion or corrosion on the door or flange sealing face
- Sooting or staining around the burner door joint after servicing
- Traces of flue gas leakage or combustion odour at the burner face
- The burner door no longer sitting squarely or sealing correctly on reassembly
- Cracking or material breakdown in the door or flange body
Before you order
- Confirm the boiler model and serial number against the fit list
- Match part number 7831348 against the marking on the existing component
- Check whether the burner door gasket or seal is ordered separately
- Confirm the appliance kW rating before ordering
Compliance
| Alternative numbers | 2321790 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 100W COMPACT 13KW SERIAL No. 7416307 | 41-819-21 | 41-819-21 | — | — |
| VIESSMANN VITODENS 100W COMPACT 16KW SERIAL No. 7416302 | 41-819-22 | 41-819-22 | — | — |
| VIESSMANN VITODENS 100W COMPACT 19KW SERIAL No. 7416303 | 41-819-23 | 41-819-23 | — | — |
| VIESSMANN VITODENS 100W COMPACT 26KW SERIAL No. 7416304 | 41-819-24 | 41-819-24 | — | — |
| VIESSMANN VITODENS 100W COMPACT 35KW SERIAL No. 7499606 | 41-819-25 | 41-819-25 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
