Viessmann
Viessmann Ignition & Ionization Electrode 7831346

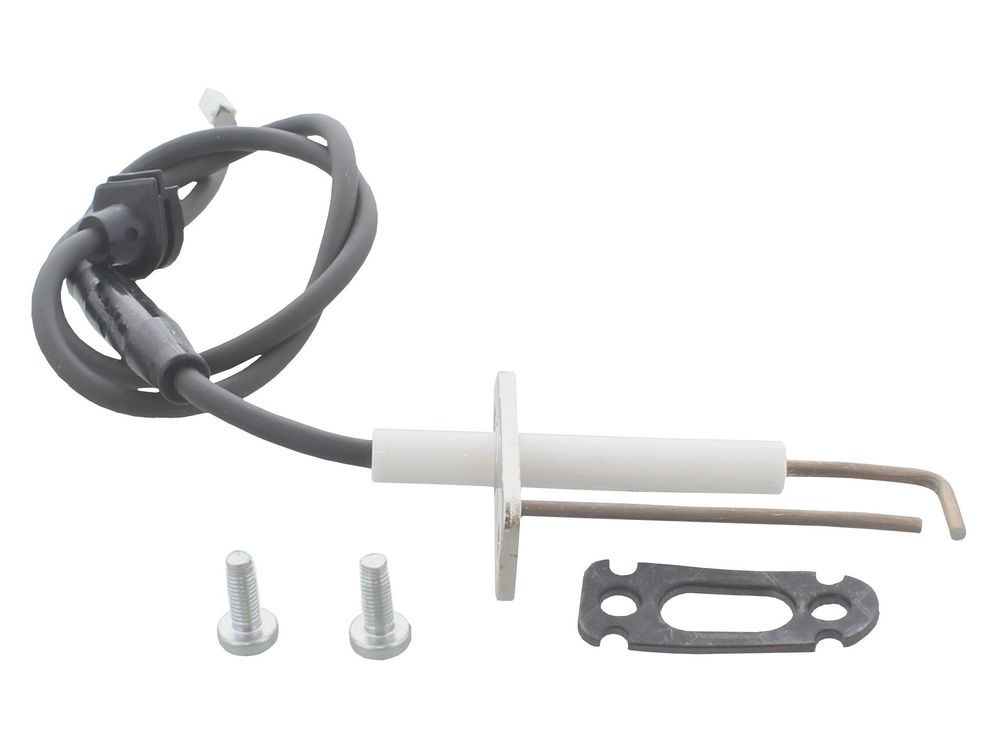

Viessmann ignition and ionization electrode supplied with lead and gasket for Vitodens 100W Compact gas boilers.
At a glance
- Also known as 2321096
£55.60
£46.33 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann Ignition & Ionization Electrode + Lead & Gasket is a combined spark and flame sensing electrode assembly for Viessmann Vitodens 100W Compact gas boilers. It provides the ignition spark at the burner and, once a flame is established, signals flame presence back to the boiler control. The assembly is supplied with its lead and gasket.
Signs this part needs replacing
- Boiler attempts to fire but does not ignite, ending in a lockout
- No spark at the burner during the ignition sequence
- Boiler fires briefly then shuts down because flame is not detected
- Repeated lockouts or intermittent ignition across successive cycles
- Visible damage, cracking or heavy contamination at the electrode tip or lead
Before you order
- Confirm the boiler model and serial number against the fit list above
- Check the condition of the electrode tip, insulation and lead before ordering
- Isolate the electrical supply and gas before any work on the burner assembly
- Follow the manufacturer's servicing instructions for electrode fitting and gap setting
Compliance
| Alternative numbers | 2321096 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 100W COMPACT 13KW SERIAL No. 7416307 | 41-819-21 | 41-819-21 | — | — |
| VIESSMANN VITODENS 100W COMPACT 16KW SERIAL No. 7416302 | 41-819-22 | 41-819-22 | — | — |
| VIESSMANN VITODENS 100W COMPACT 19KW SERIAL No. 7416303 | 41-819-23 | 41-819-23 | — | — |
| VIESSMANN VITODENS 100W COMPACT 26KW SERIAL No. 7416304 | 41-819-24 | 41-819-24 | — | — |
| VIESSMANN VITODENS 100W COMPACT 35KW SERIAL No. 7499606 | 41-819-25 | 41-819-25 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
