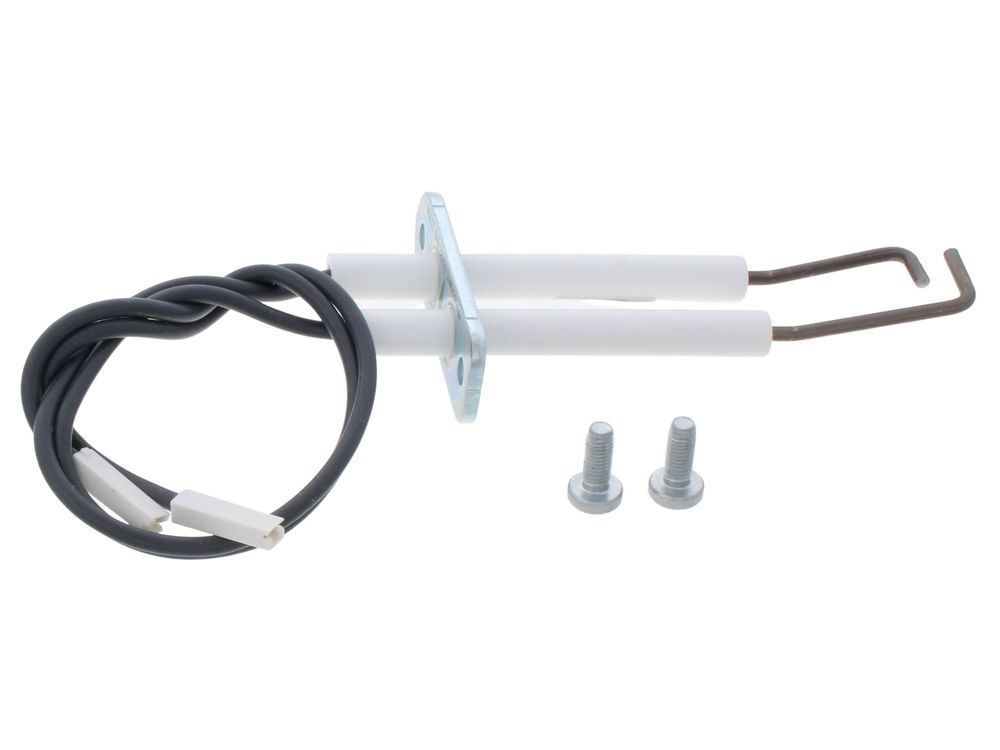

Viessmann Ignition Electrode With Gasket 7829798
Viessmann ignition electrode with gasket, part number 7829798, for Vitodens 200-W boilers.
At a glance
- Appliance family: Vitodens 200-W
- Also known as 2321078
£59.39
£49.49 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann 7829798 ignition electrode with gasket is a spark electrode assembly used to ignite the gas/air mixture in Viessmann Vitodens 200-W condensing boilers. It is supplied with its mounting gasket. The electrode forms part of the boiler's ignition circuit and is listed under electrodes in the gas boiler spares range.
Signs this part needs replacing
- Boiler fails to light or repeatedly goes to lockout during ignition
- No visible spark at the electrode when the ignition sequence runs
- Electrode tip shows erosion, heavy carbon build-up or cracking of the ceramic insulator
- Gasket around the electrode is perished, hardened or showing signs of leakage
Before you order
- Confirm the boiler model and serial number against the fit list above
- Check the existing electrode and its gasket for damage before ordering
- Verify the part number 7829798 matches the component being replaced
Compliance
| Alternative numbers | 2321078 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 200-W B2HA 100 SERIAL No. 7510834 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HA 100 SERIAL No. 7554707 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HA 45 SERIAL No. 7510831 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HA 60 SERIAL No. 7510832 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HA 80 SERIAL No. 7510833 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HA 80 SERIAL No. 7554705 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HA 88 SERIAL No. 7554706 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HA, 69 TO 99 KW SERIAL No. 7571045 | 41-819-61 | 41-819-61 | — | — |
| VIESSMANN VITODENS 200-W B2HB 45 SERIAL No. 7554703 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HB 57 SERIAL No. 7554704 | — | — | — |
Showing 10 of 16 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
