Viessmann Condensate Hose 400mm WB1B 7829788
Viessmann condensate hose, 400 mm, for Vitodens 100-W WB1B and WB1BC boilers.
At a glance
- Also known as 2321072
£15.17
£12.64 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

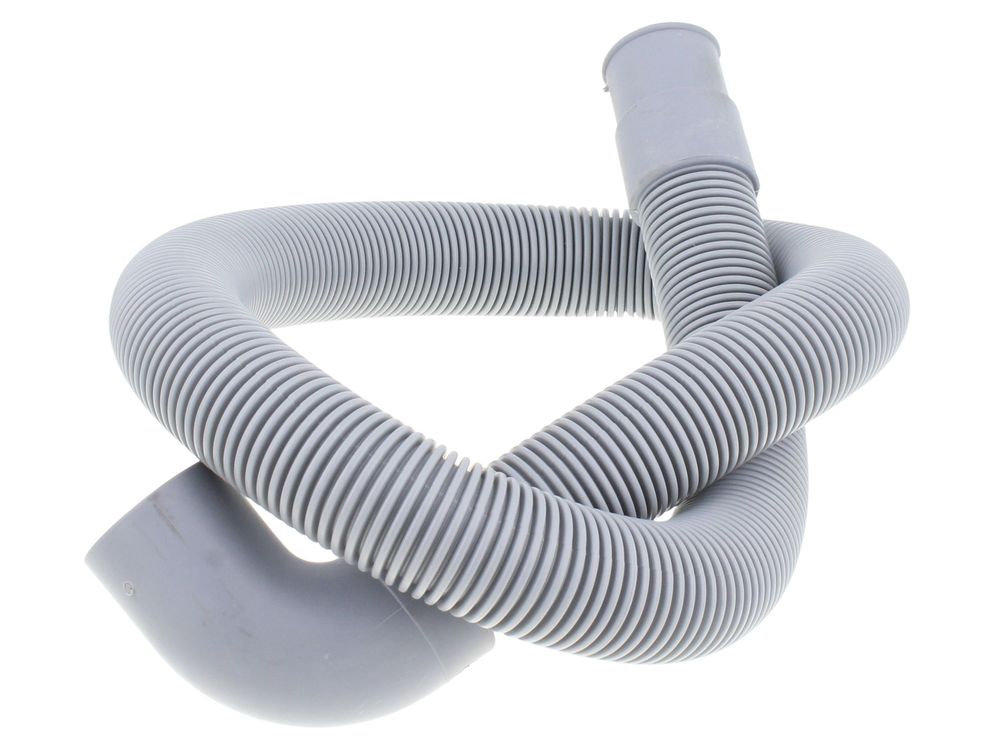

This is the Viessmann condensate hose, 400 mm, listed under part number 7829788. It is a flexible hose used within the condensate trap assembly of Viessmann Vitodens 100-W WB1B and WB1BC boilers, carrying condensate away from the trap to the drainage point. The 400 mm length suits the routing within these appliance families.
Signs this part needs replacing
- Water pooling or damp around the condensate trap or boiler base.
- Visible cracks, hardening or perishing of the hose material.
- Scale or sludge build-up inside the hose restricting condensate flow.
- Boiler locking out or faulting because condensate cannot drain away.
- Hose pulled loose or kinked at its connection points.
Before you order
- Confirm the boiler model and serial number against the fit list above.
- Check the existing hose length and routing to confirm 400 mm is suitable.
- Inspect the trap body and connections for damage that may also need attention.
- Verify the part number 7829788 against the appliance documentation.
Compliance
| Alternative numbers | 2321072 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 100-W WB1B 26 KW COMBI SERIAL No. 7373061 | 47-819-12 | 47-819-12 | — | — |
| VIESSMANN VITODENS 100-W WB1B 26 KW SYSTEM SERIAL No. 7373060 | — | — | — | |
| VIESSMANN VITODENS 100-W WB1B 26 SERIAL No. 7374861 | — | — | — | |
| VIESSMANN VITODENS 100-W WB1B 30 KW COMBI SERIAL No. 7373063 | 47-819-13 | 47-819-13 | — | — |
| VIESSMANN VITODENS 100-W WB1B 30 KW SYSTEM SERIAL No. 7373062 | — | — | — | |
| VIESSMANN VITODENS 100-W WB1B 35 KW COMBI SERIAL No. 7373065 | 47-819-14 | 47-819-14 | — | — |
| VIESSMANN VITODENS 100-W WB1B 35 KW SYSTEM SERIAL No. 7373064 | 41-819-20 | 41-819-20 | — | — |
| VIESSMANN VITODENS 100-W WB1B 35 SERIAL No. 7374862 | — | — | — | |
| VIESSMANN VITODENS 100-W WB1BC 26 SERIAL No. 7457960 | — | — | — | |
| VIESSMANN VITODENS 100-W WB1BC 35 SERIAL No. 7457961 | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
