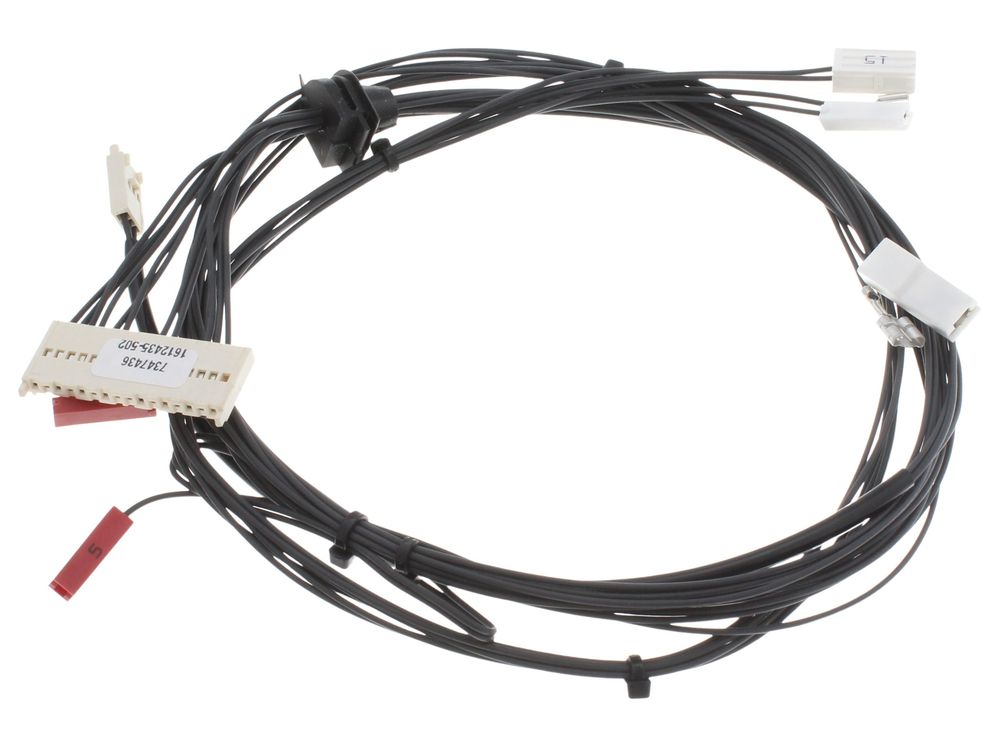

Viessmann Cable Tree X20 7828981
Viessmann Cable Tree X20, part number 7828981, for Vitodens 100-W WB1B and WB1C gas boilers.
At a glance
- Appliance family: Vitodens 100-W
- Also known as 2321032
£36.65
£30.54 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Cable Tree X20 is a Viessmann wiring harness assembly, supplied under part number 7828981. It routes and connects the electrical cabling between components inside Vitodens 100-W gas boilers. It is a service part intended for fitting by a competent heating engineer.
Signs this part needs replacing
- Boiler fails to power up or intermittent electrical faults traced to the wiring harness
- Fault codes or lockouts linked to a broken or interrupted connection in the loom
- Visible damage to the cable tree, such as chafed, burnt or brittle wiring
- Loose, corroded or heat-damaged plugs and terminals on the harness
- A connector or retaining clip on the cable tree has been broken during previous service work
Before you order
- Confirm the boiler model is a Vitodens 100-W WB1B or WB1C, as listed in the fitment above
- Check the appliance serial number against the list to confirm the correct variant
- Inspect the existing harness and connectors to verify the fault lies with the cable tree rather than a separate component
- Have the part number 7828981 to hand when ordering
Compliance
| Alternative numbers | 2321032 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 100-W WB1B 26 KW SYSTEM SERIAL No. 7373060 | — | — | — | |
| VIESSMANN VITODENS 100-W WB1B 30 KW SYSTEM SERIAL No. 7373062 | — | — | — | |
| VIESSMANN VITODENS 100-W WB1B 35 KW SYSTEM SERIAL No. 7373064 | 41-819-20 | 41-819-20 | — | — |
| VIESSMANN VITODENS WB1C 100-W 19 KW SYSTEM SERIAL No. 7499423 | 41-819-26 | 41-819-26 | — | — |
| VIESSMANN VITODENS WB1C 100-W 26 KW SYSTEM SERIAL No. 7499424 | 41-819-27 | 41-819-27 | — | — |
| VIESSMANN VITODENS WB1C 100-W 30 KW SYSTEM SERIAL No. 7499426 | 41-819-28 | 41-819-28 | — | — |
| VIESSMANN VITODENS WB1C VITODENS 100-W 35 KW SYSTEM SERIAL No. 7499428 | 41-819-29 | 41-819-29 | — | — |
