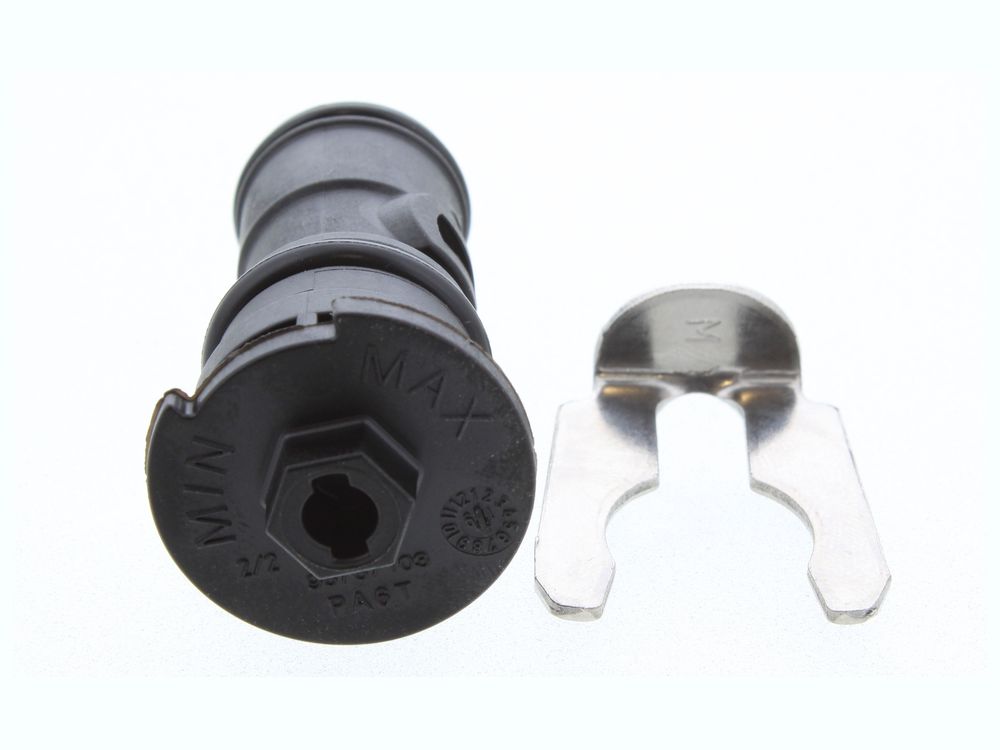

Viessmann Bypass Cartridge 7828756
Viessmann 7828756 bypass cartridge for the DHW circuit of Vitodens 100-W gas boilers.
At a glance
- Part type: bypass cartridge, DHW circuit
- Appliance family: Vitodens 100-W
- Also known as 2321014
£50.54
£42.12 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann 7828756 is a bypass cartridge for the domestic hot water circuit of Vitodens 100-W gas boilers. It manages flow through the DHW side of the appliance so the boiler can hold stable temperature control at the tap. The part is listed by Viessmann under part number 7828756.
Signs this part needs replacing
- DHW temperature at the tap is unstable or drifts away from the set point
- Hot water output is weaker than expected when drawing off
- Domestic hot water takes longer than normal to reach temperature
- Central heating circuit warms while hot water is being drawn
Before you order
- Read the model and serial number from the appliance data plate and match it against the fitment list
- Confirm the part number on the existing cartridge or in the boiler documentation is 7828756
- Check the cartridge housing and sealing faces for scale or damage before fitting the new part
- Isolate the appliance and drain the relevant circuit before removal
Compliance
| Alternative numbers | 2321014 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 100-W B1HA 19 KW SYSTEM ERP SERIAL No. 7543420 | 41-819-36 | 41-819-36 | — | — |
| VIESSMANN VITODENS 100-W B1HA 26 KW SYSTEM ERP SERIAL No. 7543421 | 41-819-37 | 41-819-37 | — | — |
| VIESSMANN VITODENS 100-W B1HA 26 SERIAL No. 7560853 | — | — | — | |
| VIESSMANN VITODENS 100-W B1HA 30 KW SYSTEM ERP SERIAL No. 7543423 | 41-819-38 | 41-819-38 | — | — |
| VIESSMANN VITODENS 100-W B1HA 35 KW SYSTEM ERP SERIAL No. 7543425 | 41-819-39 | 41-819-39 | — | — |
| VIESSMANN VITODENS 100-W B1HA 35 SERIAL No. 7560854 | — | — | — | |
| VIESSMANN VITODENS 100-W B1HC 19 KW SYSTEM SERIAL No. 7570671 | 41-819-40 | 41-819-40 | — | — |
| VIESSMANN VITODENS 100-W B1HC 26 KW SYSTEM SERIAL No. 7570672 | 41-819-41 | 41-819-41 | — | — |
| VIESSMANN VITODENS 100-W B1HC 30 KW SYSTEM SERIAL No. 7570674 | 41-819-42 | 41-819-42 | — | — |
| VIESSMANN VITODENS 100-W B1HC 35 KW SYSTEM SERIAL No. 7570676 | 41-819-43 | 41-819-43 | — | — |
Showing 10 of 33 compatible appliances.
