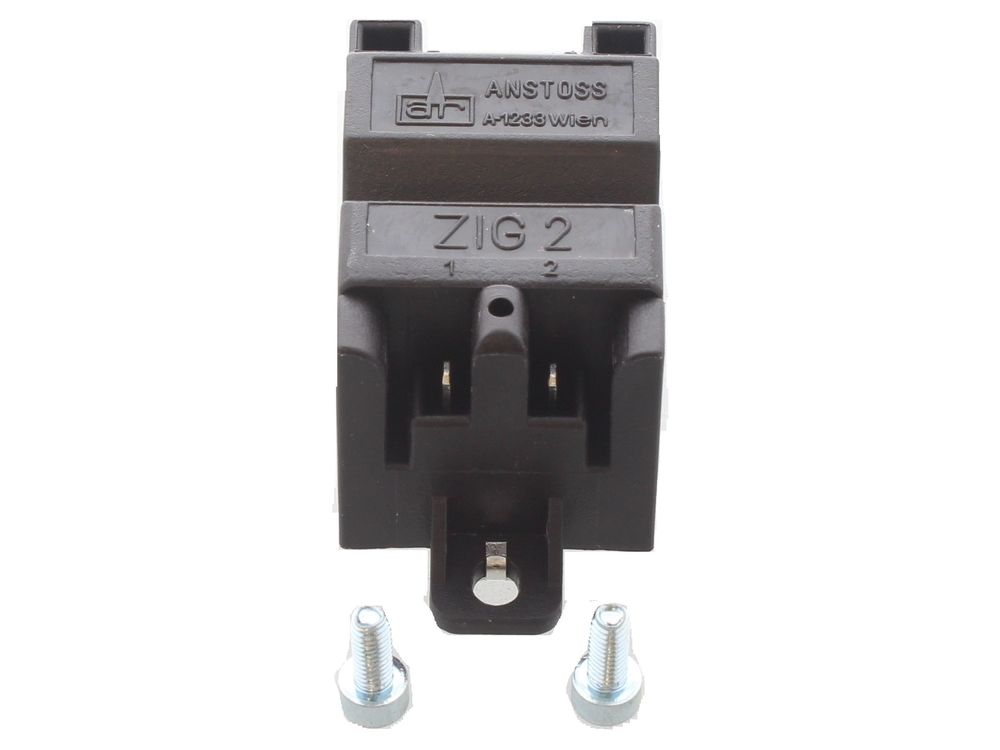

Viessmann Ignition Transformer Module ZIG 2/12 7828522
Ignition transformer module ZIG 2/12 for Viessmann Vitodens WB1A boilers, part number 7828522.
At a glance
- Appliance family: Vitodens WB1A
- Also known as 2320102, N8125
£51.76
£43.13 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann ZIG 2/12 ignition transformer module, part number 7828522, is an ignition unit used on Vitodens WB1A gas boilers. It produces the high-voltage spark that lights the burner when there is a demand for heat. It is listed for the Vitodens 100 and 100-W appliance families.
Signs this part needs replacing
- The boiler goes to lockout without a spark at the burner
- Repeated failed ignition attempts on a call for heat
- Ignition is intermittent, with the boiler lighting on some attempts and not others
- Clicking from the ignition unit is audible but the burner does not light
- Cracking, tracking or other visible damage on the module body or its leads
Before you order
- Confirm the appliance model matches one of the fitments listed above, including the WB1A variant.
- Where a serial number is given in the fitment list, check it against the data badge on the appliance.
- Compare the part number and markings on the existing ignition module with 7828522.
- Isolate the electrical supply and gas before carrying out any work on the boiler.
Compliance
| Alternative numbers | 2320102, N8125 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 100 SYSTEM 24KW | — | — | — | |
| VIESSMANN VITODENS 100-W WB1A 24 SERIAL No. 7246174 | — | — | — | |
| VIESSMANN VITODENS 100-W WB1A 30 SERIAL No. 7246175 | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI 24KW | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI 30KW | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI C24KW (7246794) | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI C24KW (7247428) | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI C24KW (7248590) | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI C30KW | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI PLUS 30KW (7246793) | — | — | — |
Showing 10 of 15 compatible appliances.
