Viessmann

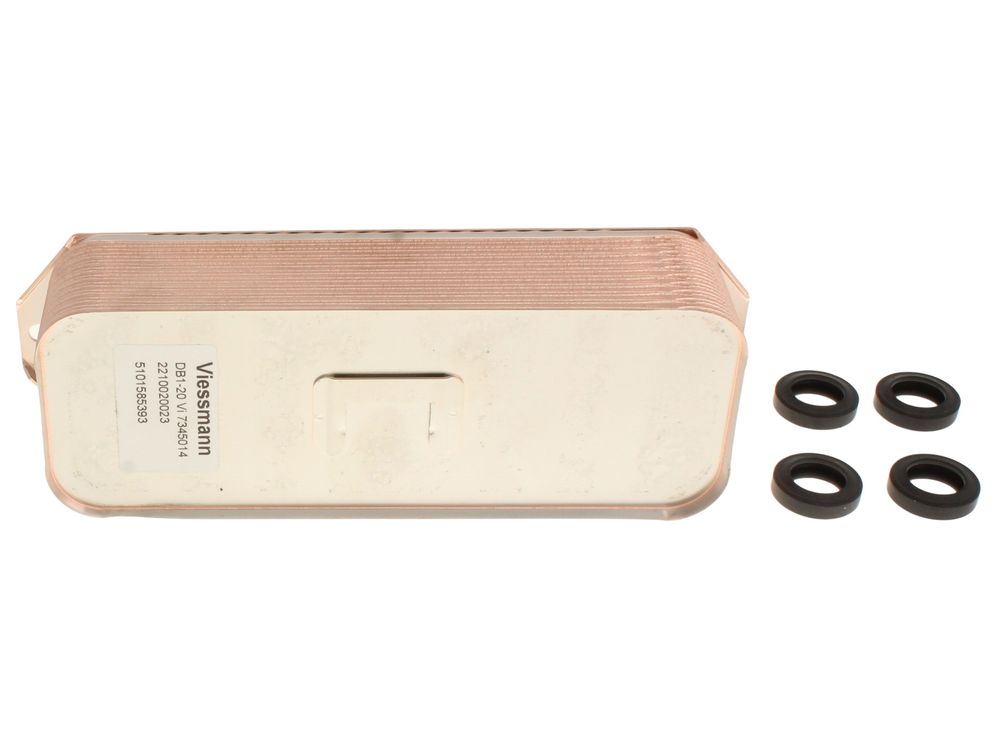

Viessmann Plate Heat Exchanger 7827950
The Viessmann 7827950 plate heat exchanger transfers heat between the primary and domestic hot water circuits in Vitodens 200-W combi boilers.
At a glance
- Appliance family: Vitodens 200-W combi boilers
- Also known as 2320898
£270.41
£225.34 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann plate heat exchanger, part number 7827950, is a component used in Viessmann Vitodens 200-W combi boilers. It transfers heat between the boiler's primary circuit and the domestic hot water circuit. The plate design provides a large surface area for efficient heat transfer within a compact unit.
Signs this part needs replacing
- Domestic hot water runs lukewarm or does not reach the temperature set at the boiler.
- DHW temperature fluctuates during use.
- Reduced hot water flow rate at the taps.
- Water weeping or dripping from the plate pack.
- Primary pressure drops or DHW is discoloured due to an internal cross-leak.
Before you order
- Confirm the boiler model and serial number match one of the listed appliances.
- Verify the existing part number before ordering, as the plate heat exchanger is model-specific.
- Inspect the system for scale or debris that may have caused the failure.
Compliance
| Alternative numbers | 2320898 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 200-W B2KA 30 KW COMBI SERIAL No. 7454872 | 47-819-29 | 47-819-29 | — | — |
| VIESSMANN VITODENS 200-W B2KA 35 KW COMBI SERIAL No. 7454874 | 47-819-30 | 47-819-30 | — | — |
| VIESSMANN VITODENS 200-W WB2B 30KW SERIAL No. 7248827 | 47-819-10 | 47-819-10 | — | — |
| VIESSMANN VITODENS 200-W WB2B 35KW SERIAL No. 7248829 | 47-819-11 | 47-819-11 | — | — |
| VIESSMANN VITODENS 200-W WB2C 30KW SERIAL No. 7424989 | 47-819-10 | 47-819-10 | — | — |
| VIESSMANN VITODENS 200-W WB2C 35KW SERIAL No. 7424991 | 47-819-11 | 47-819-11 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
