Viessmann

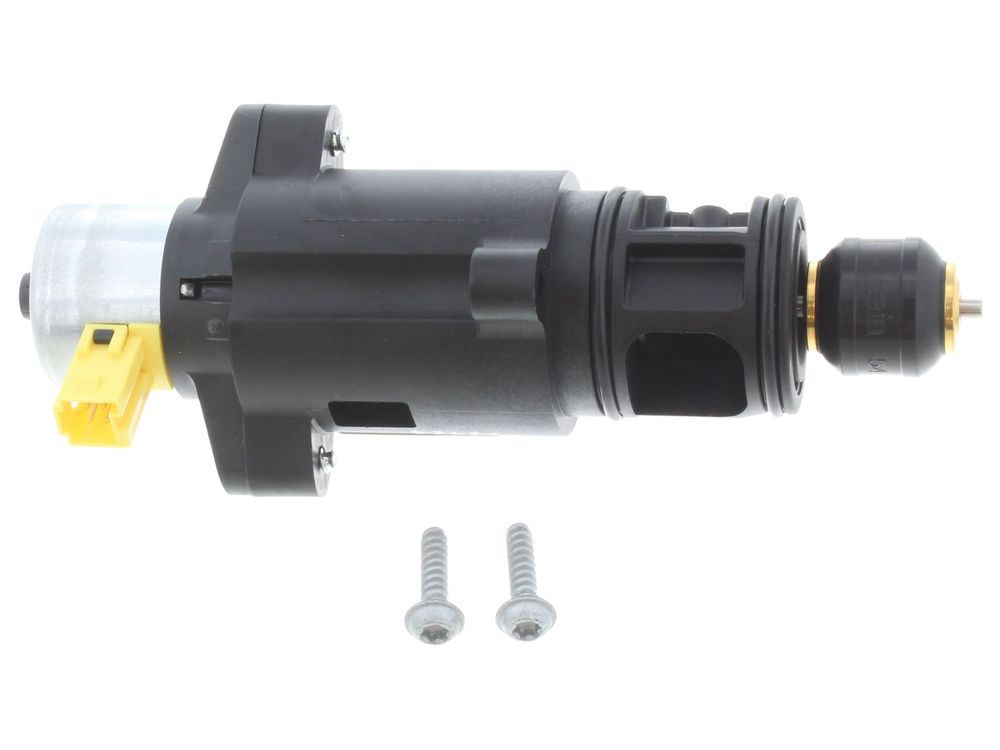

Viessmann Valve Insert (Diverter Valve) 7827932
Viessmann valve insert for the diverter valve on Vitodens 111-W, 222-F and 242-F boilers.
At a glance
- Part type: valve insert for the diverter valve
- Also known as 2320882
£112.46
£93.72 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann 7827932 valve insert is the internal service component of the diverter valve used on Vitodens 111-W, 222-F and 242-F appliances. It controls the changeover between domestic hot water and central heating within the valve body. Supplied as a Viessmann part for servicing or repair of the diverter valve assembly.
Signs this part needs replacing
- Hot water runs lukewarm or cold while the boiler is firing
- Radiators heat up during a hot water draw-off, or hot water temperature drops when a heating demand starts
- The diverter valve fails to change over between heating and hot water modes
- The valve insert becomes stiff or sticking through scale and debris in the system water
- Water weeping from the diverter valve body around the insert
Before you order
- Confirm the boiler model and serial number against the fit list above
- Check the appliance variant code, for example B1LA, B1LB, B2TA, B2TB, Fs2A or B2SA
- Establish whether the fault lies with the valve insert, the valve body or the motorised head before ordering
Mechanical
| Part type | DIVERTER VALVES & HYDRAULICS |
|---|
Compliance
| Manufacturer part number (MPN) | 7827932 |
|---|---|
| Alternative numbers | 2320882 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 111-W B1LA 26 KW STORAGE COMBI SERIAL No. 7499484 | 47-819-24 | 47-819-24 | — | — |
| VIESSMANN VITODENS 111-W B1LA 35KW STORAGE COMBI SERIAL No. 7499485 | 47-819-25 | 47-819-25 | — | — |
| VIESSMANN VITODENS 111-W B1LB 26 KW GB ERP SERIAL No. 7543448 | 47-819-36 | 47-819-36 | — | — |
| VIESSMANN VITODENS 111-W B1LB 35 KW GB ERP SERIAL No. 7543449 | 47-819-37 | 47-819-37 | — | — |
| VIESSMANN VITODENS 111-W B1LD 26 KW GB SERIAL No. 7570732 | 47-819-43 | 47-819-43 | — | — |
| VIESSMANN VITODENS 111-W B1LD 35 KW GB SERIAL No. 7570733 | 47-819-44 | 47-819-44 | — | — |
| VIESSMANN VITODENS 222-F B2TA 19 SERIAL No. 7510826 | — | — | — | |
| VIESSMANN VITODENS 222-F B2TA 19KW SERIAL No. 7513044 | 47-819-15 | 47-819-15 | — | — |
| VIESSMANN VITODENS 222-F B2TA 26KW SERIAL No. 7513045 | 47-819-16 | 47-819-16 | — | — |
| VIESSMANN VITODENS 222-F B2TA 35 SERIAL No. 7510827 | — | — | — |
Showing 10 of 19 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
