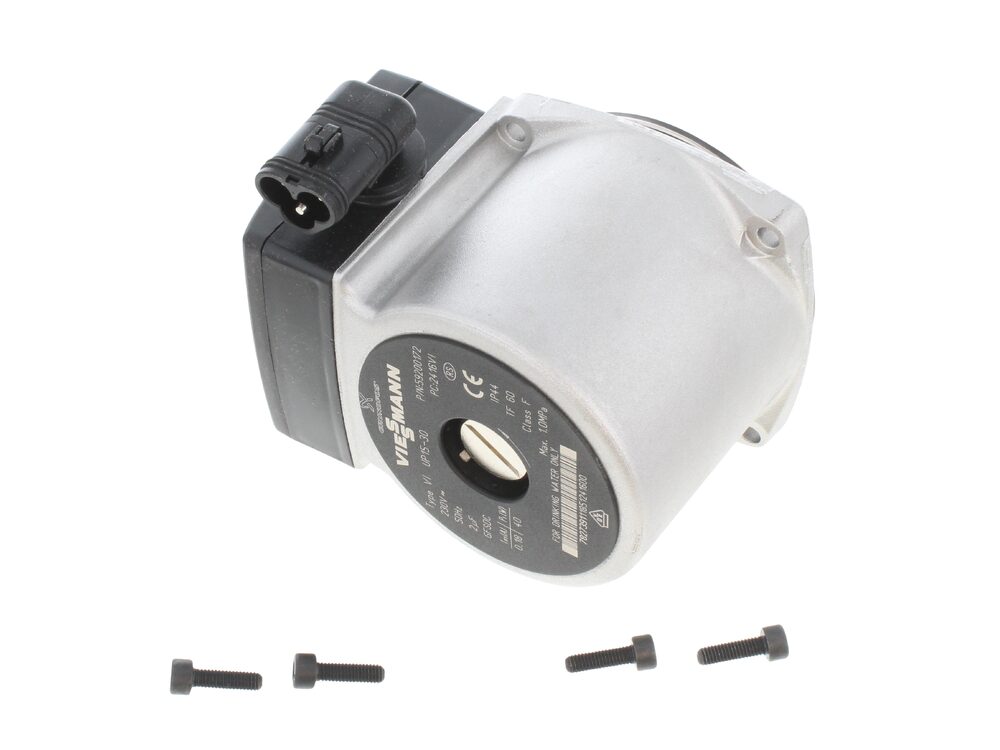

Viessmann DHW Cylinder Loading Pump Head 7827391
Pump head for the DHW cylinder loading circuit on Viessmann Vitodens 111-W and 222-F storage combi boilers.
At a glance
- Also known as 2321978
£274.20
£228.50 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann DHW cylinder loading pump head is a circulation pump motor used on the domestic hot water loading circuit of Vitodens storage combi appliances. It is the pump head (motor) component, identified by Viessmann part number 7827391. Its function is to circulate primary water through the DHW cylinder loading circuit so the stored cylinder can be reheated.
Signs this part needs replacing
- Domestic hot water runs cold or the cylinder does not reheat as expected
- The loading circuit pump is silent when it should be running
- Boiler reports a pump or circulation fault and locks out
- The pump head runs hot, hums loudly or is noticeably noisier than normal
- Intermittent DHW performance with the pump cutting in and out
Before you order
- Match your appliance model and serial number against the fits list above
- Confirm the part number on the existing pump head is 7827391
- Check your appliance is the storage combi variant in the list, not a different Vitodens range
- Confirm whether the pump head alone is the correct item for the fault found
Compliance
| Alternative numbers | 2321978 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 111-W B1LA 26 KW STORAGE COMBI SERIAL No. 7499484 | 47-819-24 | 47-819-24 | — | — |
| VIESSMANN VITODENS 111-W B1LA 35KW STORAGE COMBI SERIAL No. 7499485 | 47-819-25 | 47-819-25 | — | — |
| VIESSMANN VITODENS 111-W B1LB 26 KW GB ERP SERIAL No. 7543448 | 47-819-36 | 47-819-36 | — | — |
| VIESSMANN VITODENS 111-W B1LB 35 KW GB ERP SERIAL No. 7543449 | 47-819-37 | 47-819-37 | — | — |
| VIESSMANN VITODENS 111-W B1LD 26 KW GB SERIAL No. 7570732 | 47-819-43 | 47-819-43 | — | — |
| VIESSMANN VITODENS 111-W B1LD 35 KW GB SERIAL No. 7570733 | 47-819-44 | 47-819-44 | — | — |
| VIESSMANN VITODENS 111-W B1LF 25 KW STORAGE COMBI SERIAL No. 7551269 | 47-819-53 | 47-819-53 | — | — |
| VIESSMANN VITODENS 111-W B1LF 32 KW STORAGE COMBI SERIAL No. 7551270 | 47-819-54 | 47-819-54 | — | — |
| VIESSMANN VITODENS 222-F B2TE 19 KW STORAGE COMBI SERIAL No. 7544736 | 47-819-47 | 47-819-47 | — | — |
| VIESSMANN VITODENS 222-F B2TE 25 KW STORAGE COMBI SERIAL No. 7544737 | 47-819-48 | 47-819-48 | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
