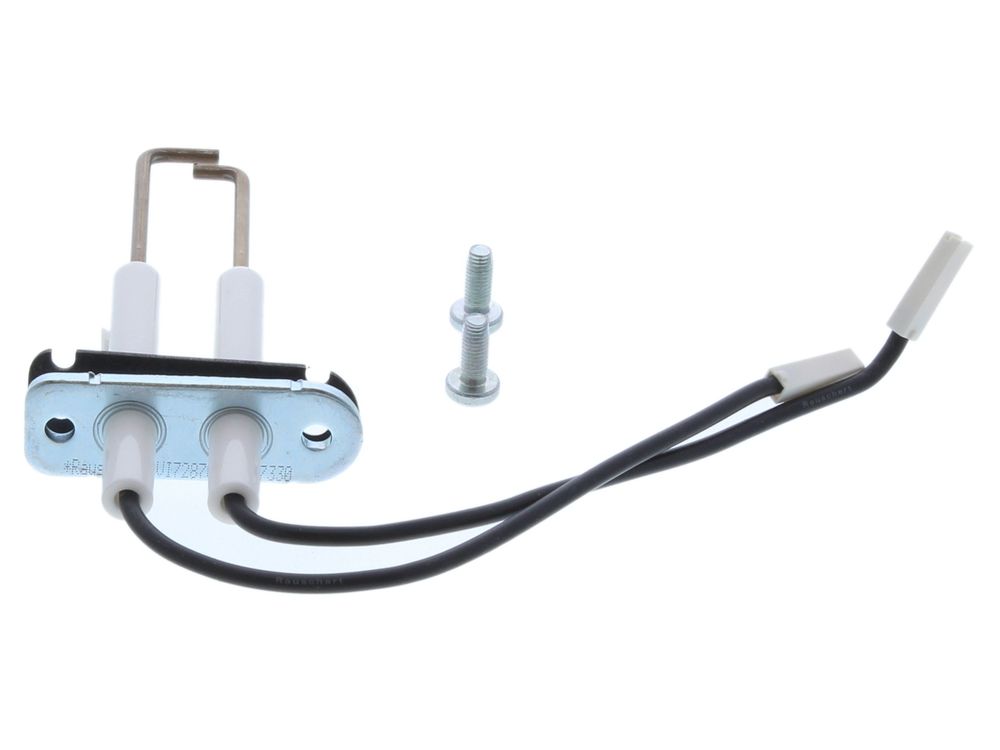

Viessmann Ignition Electrode With Gasket 7826516
Viessmann ignition electrode supplied with a gasket, used to spark the burner on Vitodens gas boilers.
At a glance
- Also known as 2320512
£53.08
£44.23 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann ignition electrode with gasket is a burner ignition component for Viessmann Vitodens gas boilers. It delivers the ignition spark at the burner to light the gas under demand from the control. The electrode is supplied with its mounting gasket.
Signs this part needs replacing
- Boiler fails to light and locks out on an ignition fault
- No visible spark at the electrode when the boiler calls for heat
- Electrode tip eroded, cracked or badly discoloured
- Insulator body contaminated with soot, white deposits or moisture, causing the spark to track to earth
- Intermittent ignition faults that clear and return without any other fault code present
Before you order
- Confirm the boiler model and serial number against the fitment list above, as several Vitodens variants use different electrodes
- Check the electrode and its gasket seat for damage or contamination before fitting
- Isolate the electrical supply and gas at the boiler before starting work
- Check the ignition lead and its connection to the electrode as part of the same diagnosis
Compliance
| Alternative numbers | 2320512 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 200-W B2HA 28 SERIAL No. 7510829 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HA 30 KW SYSTEM SERIAL No. 7454871 | 41-819-34 | 41-819-34 | — | — |
| VIESSMANN VITODENS 200-W B2HA 35 KW SYSTEM SERIAL No. 7454873 | 41-819-35 | 41-819-35 | — | — |
| VIESSMANN VITODENS 200-W B2HA 35 SERIAL No. 7510830 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HB 26 SERIAL No. 7538093 | — | — | — | |
| VIESSMANN VITODENS 200-W B2HB 35 SERIAL No. 7538094 | — | — | — | |
| VIESSMANN VITODENS 200-W B2KA 26 KW COMBI SERIAL No. 7454870 | 47-819-28 | 47-819-28 | — | — |
| VIESSMANN VITODENS 200-W B2KA 30 KW COMBI SERIAL No. 7454872 | 47-819-29 | 47-819-29 | — | — |
| VIESSMANN VITODENS 200-W B2KA 35 KW COMBI SERIAL No. 7454874 | 47-819-30 | 47-819-30 | — | — |
| VIESSMANN VITODENS 200-W WB2B 26KW SERIAL No. 7248824 | 41-819-15 | 41-819-15 | — | — |
Showing 10 of 35 compatible appliances.
