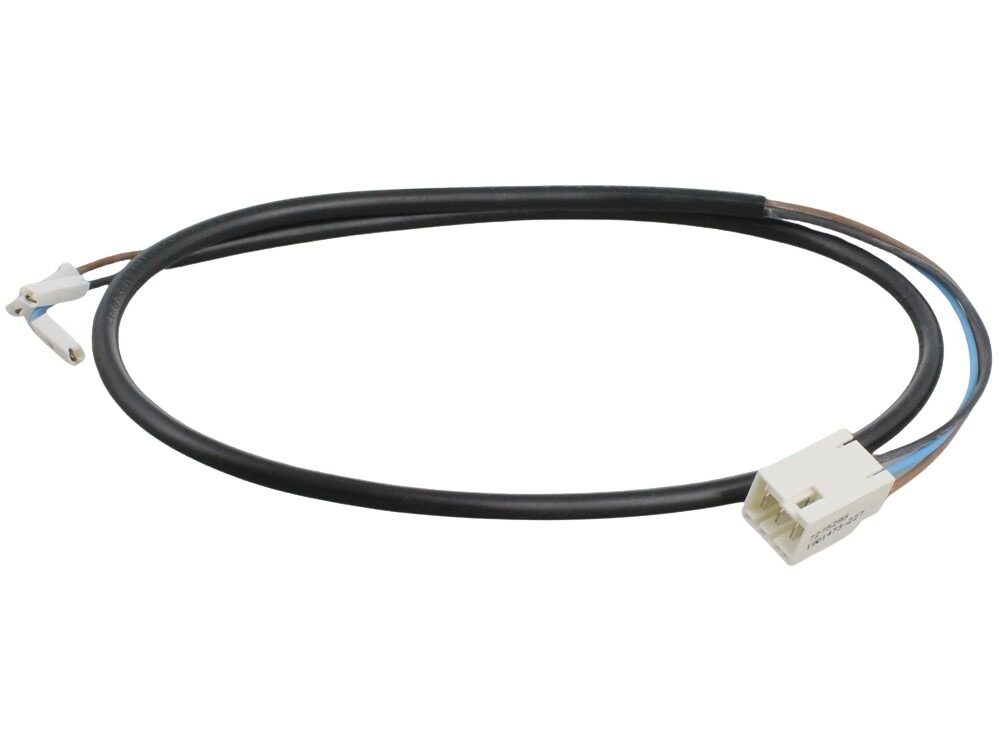

Viessmann Connecting Pipe Ignition 7823972
Viessmann connecting pipe for the ignition circuit on Vitodens 100-W WB1A boilers built from 23.03.2005.
At a glance
- Also known as 2320154
- Work on the ignition circuit and gas-carrying components must be carried out by a competent Gas Safe registered engineer
£15.92
£13.27 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is the connecting pipe ignition listed by Viessmann under part number 7823972, used on Vitodens 100-W WB1A series appliances manufactured from 23.03.2005. It forms part of the ignition circuit on the boiler, carrying the ignition path from the burner assembly. The part is supplied for service and repair of the ignition arrangement on these condensing boilers.
Signs this part needs replacing
- Boiler fails to light and locks out on ignition sequence
- No spark or weak spark at the burner during start-up
- Repeated ignition lockouts that clear only after a reset
- Visible damage, distortion or corrosion on the connecting pipe
- Ignition faults traced to the pipe run after other ignition components have been checked
Before you order
- Confirm the appliance is a Vitodens 100-W WB1A and check the serial number against the fit list above
- Confirm the build date is 23.03.2005 or later
- Compare the existing pipe against part number 7823972 before ordering
- Work on the ignition circuit and gas-carrying components must be carried out by a competent Gas Safe registered engineer
Compliance
| Alternative numbers | 2320154 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 100 SYSTEM BOILER 24KW SERIAL No. 7179918 | — | — | — | |
| VIESSMANN VITODENS 100-W WB1A 24 SERIAL No. 7246174 | — | — | — | |
| VIESSMANN VITODENS 100-W WB1A 30 SERIAL No. 7246175 | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI 24KW SERIAL No. 7179917 | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI 30KW SERIAL No. 7179916 | 47-819-05 | 47-819-05 | — | — |
| VIESSMANN VITODENS WB1A COMBI C24KW SERIAL No. 7246794 | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI C24KW SERIAL No. 7247428 | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI C24KW SERIAL No. 7248590 | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI C30KW SERIAL No. 7248589 | — | — | — | |
| VIESSMANN VITODENS WB1A COMBI PLUS 30KW SERIAL No. 7246793 | — | — | — |
Showing 10 of 13 compatible appliances.
