Viessmann

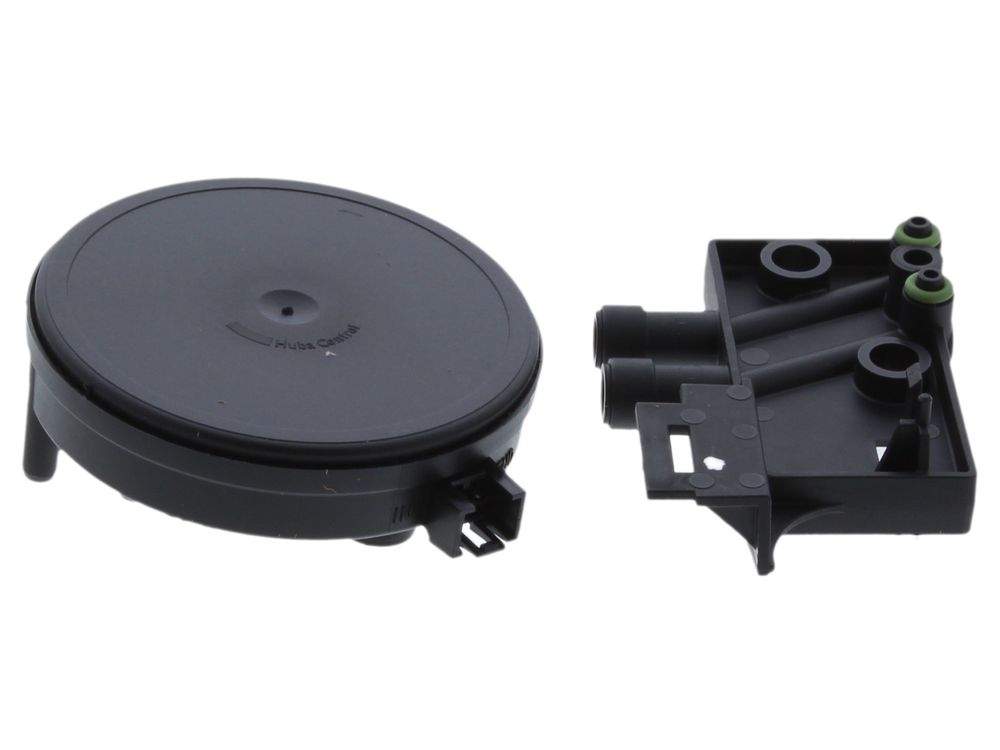

Viessmann Differential Pressure Sensor 7822897
Differential pressure sensor for Viessmann Vitodens 200 and 333-F gas boilers, used from 17 June 2004.
At a glance
- Also known as 2320250
£118.31
£98.59 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann 7822897 is a differential pressure sensor used in Viessmann Vitodens gas boilers. It monitors the pressure difference across the combustion air path and provides a signal to the boiler control. This sensor is specified for appliances manufactured from 17 June 2004.
Signs this part needs replacing
- Boiler locks out or fails to fire
- Intermittent ignition or nuisance lockouts
- Fan runs but burner does not light
- Error code relating to air pressure or fan operation
- Boiler short-cycles or operates erratically
Before you order
- Check the boiler model and serial number against the fit list above.
- Confirm the existing sensor carries part number 7822897.
- Verify the appliance was manufactured from 17 June 2004.
- If unsure, consult the manufacturer's parts list for your exact model.
Compliance
| Alternative numbers | 2320250 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 200 WB2 6-24 SERIAL No. 7167064 | — | — | — | |
| VIESSMANN VITODENS 200 WB2 6-24C SERIAL No. 7167063 | — | — | — | |
| VIESSMANN VITODENS 200 WB2 8-32 SERIAL No. 7167065 | — | — | — | |
| VIESSMANN VITODENS 200 WB2 11-44 SERIAL No. 7167066 | — | — | — | |
| VIESSMANN VITODENS 200 WB2 11-44 SERIAL No. 7188578 | — | — | — | |
| VIESSMANN VITODENS 200 WB2 15-60 SERIAL No. 7167067 | — | — | — | |
| VIESSMANN VITODENS 200 WB2 15-60 SERIAL No. 7188577 | — | — | — | |
| VIESSMANN VITODENS 200 WB2A 6-24 SERIAL No. 7170318 | — | — | — | |
| VIESSMANN VITODENS 200 WB2A 6-24C SERIAL No. 7170317 | — | — | — | |
| VIESSMANN VITODENS 200 WB2A 8-32 SERIAL No. 7170319 | — | — | — |
Showing 10 of 23 compatible appliances.
