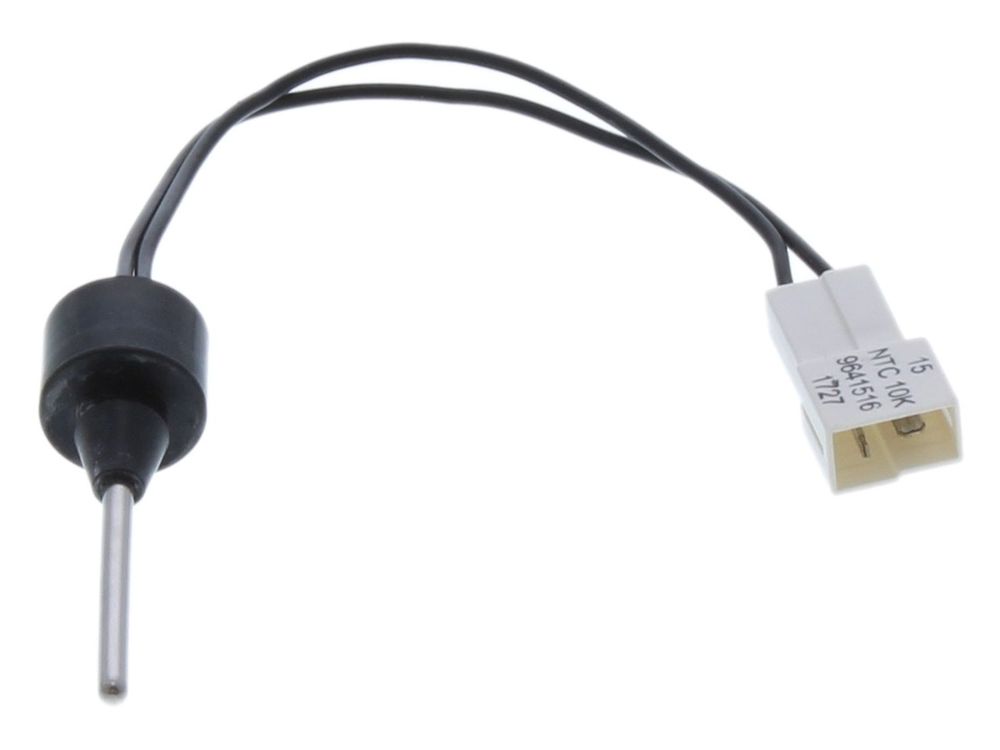

Viessmann Flue Gas Temperature Sensor 7822767
Viessmann 7822767 flue gas temperature sensor for Vitodens WB1B and WB2B series boilers and Vitocrossal 300 Cu3A appliances.
At a glance
- Also known as 2320522
£34.51
£28.76 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Viessmann 7822767 is a flue gas temperature sensor (thermistor) used on Viessmann gas boilers. It monitors the temperature of the flue gases leaving the appliance, allowing the control system to regulate combustion and shut the boiler down if flue temperatures rise outside normal limits. This sensor is listed for Vitodens WB1B and WB2B series appliances and Vitocrossal 300 Cu3A models.
Signs this part needs replacing
- The boiler locks out or shuts down repeatedly with a flue gas temperature related fault.
- Flue gas temperature readings are erratic, implausible or clearly out of range on the boiler display.
- The appliance cuts out shortly after ignition and will not run continuously.
- Resistance measured across the sensor does not track temperature as expected when tested.
- Intermittent faults that clear on reset but return once the boiler reaches operating temperature.
Before you order
- Confirm your appliance model and serial number against the fitment list above.
- Check the part number on the sensor being removed matches 7822767.
- Inspect the sensor connector and mounting arrangement against the item being replaced.
- Verify the fault lies with the sensor rather than the wiring or control board before ordering.
Compliance
| Alternative numbers | 2320522 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITOCROSSAL 300 CU3A 26 SERIAL No. 7553000 | — | — | — | |
| VIESSMANN VITOCROSSAL 300 CU3A 35 SERIAL No. 7553001 | — | — | — | |
| VIESSMANN VITOCROSSAL 300 CU3A 45 SERIAL No. 7553002 | — | — | — | |
| VIESSMANN VITOCROSSAL 300 CU3A 57 SERIAL No. 7553003 | — | — | — | |
| VIESSMANN VITODENS 050-W BPJC 29 KW COMBI SERIAL No. 7537906 | 47-819-31 | 47-819-31 | — | — |
| VIESSMANN VITODENS 050-W BPJC 35 KW COMBI SERIAL No. 7537947 | 47-819-32 | 47-819-32 | — | — |
| VIESSMANN VITODENS 050-W BPJD 29KW COMBI SERIAL No. 7202938 | 47-819-38 | 47-819-38 | — | — |
| VIESSMANN VITODENS 050-W BPJD 35 KW COMBI SERIAL No. 7202939 | 47-819-39 | 47-819-39 | — | — |
| VIESSMANN VITODENS 100-W B1HA 19 KW SYSTEM ERP SERIAL No. 7543420 | 41-819-36 | 41-819-36 | — | — |
| VIESSMANN VITODENS 100-W B1HA 26 KW SYSTEM ERP SERIAL No. 7543421 | 41-819-37 | 41-819-37 | — | — |
Showing 10 of 130 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VIESSMANN appliance manual — VITODENS 222-F B2TB 19 SERIAL NO. 7542250, VITODENS 222-F B2TB 35 SERIAL NO. 7542251
manualmanualVIESSMANN appliance manual — VITODENS WB1C 100-W 19 KW SYSTEM SERIAL No. 7499423 (GC 41-819-26), VITODENS WB1C 100-W 26 KW SYSTEM SERIAL No. 7499424 (GC 41-819-27), VITODENS WB1C 100-W 26KW COMBI SERIAL No. 7499425 (GC 47-819-20), VITODENS WB1C 100-W 30 KW COMBI SERIAL No. 7499427 (GC 47-819-21), VITODENS WB1C 100-W 30 KW SYSTEM SERIAL No. 7499426 (GC 41-819-28), VITODENS WB1C 100-W 30KW GB COMBI SERIAL No. 7441745 (GC 47-819-21), VITODENS WB1C 100-W 35 KW COMBI SERIAL No. 7499429 (GC 47-819-22), VITODENS WB1C VITODENS 100-W 35 KW SYSTEM SERIAL No. 7499428 (GC 41-819-29)
manualNo technical questions yet for this part.
