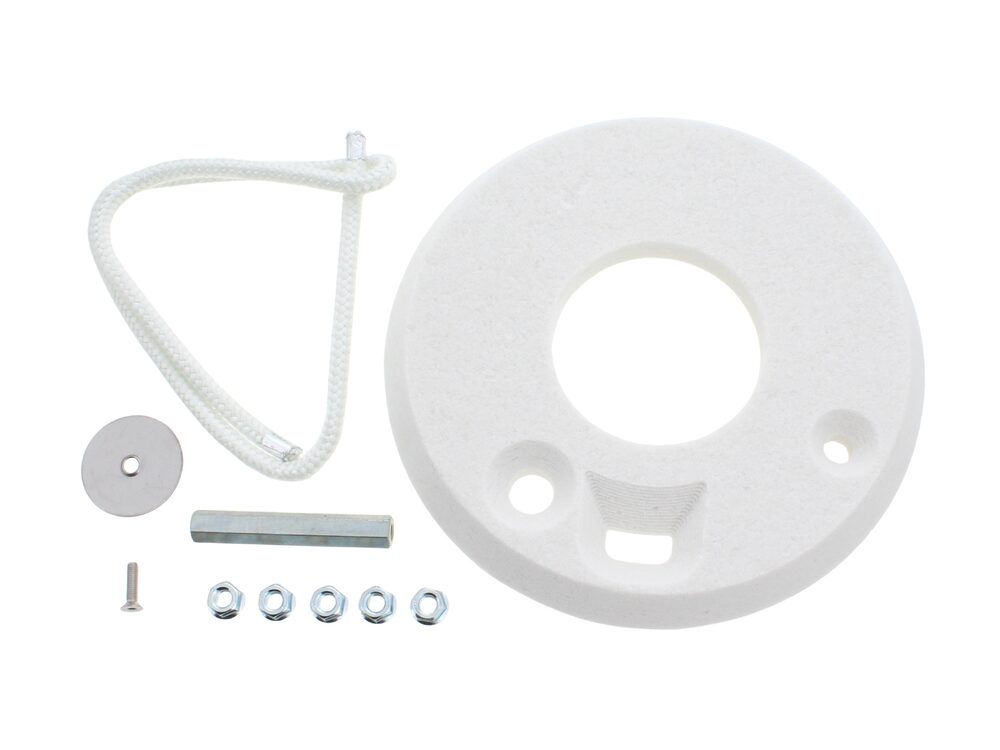

Baxi Insulation Burner Flange 7809902
Baxi insulation burner flange, part 7809902, for Potterton Commercial Gold and Baxi Quinta Ace S appliances; heat-shield insulation for the burner flange.
At a glance
- Part type: Insulation
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£56.40
£47.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The insulation burner flange is a heat-shield component that sits at the burner flange on Baxi and Potterton Commercial appliances. It is supplied under part number 7809902 and falls within the insulation, heat shields and firebricks spare part group. Its job is to insulate the burner mounting area, protecting surrounding metalwork and gaskets from sustained radiant and conducted heat.
Signs this part needs replacing
- Visible cracking, crumbling or flaking of the insulation material at the burner flange
- Discolouration, charring or glazing of the shield surface after prolonged heat exposure
- Insulation breaking up or dropping away from the flange when the burner is removed
- Heat damage or scorching on adjacent gaskets, seals or metalwork
- Disturbed or unstable combustion readings traced back to the burner mounting area
Before you order
- Confirm your appliance model against the compatibility list, as this part covers both Potterton Commercial Gold and Baxi Quinta Ace S ranges
- Check the existing part number on the appliance or in the service documentation matches 7809902
- Inspect the burner flange gasket and any seals at the same time, as these are commonly disturbed during removal
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Insulation, Heat Shields & Firebricks |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 7809902 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI QUINTA ACE S 50KW | — | — | — | |
| BAXI QUINTA ACE S 60KW | — | — | — | |
| BAXI QUINTA ACE S 70KW | — | — | — | |
| BAXI QUINTA ACE S 90KW | — | — | — | |
| POTTERTON COMMERCIAL GOLD WH46 | — | — | — | |
| POTTERTON COMMERCIAL GOLD WH65 | — | — | — | |
| POTTERTON COMMERCIAL POTTERTON COMMERCIAL SPARES | — | — | — | |
| POTTERTON COMMERCIAL SIRIUS 2 WH110 (FROM APRIL 2016) | — | — | — | |
| POTTERTON COMMERCIAL SIRIUS 2 WH50 | — | — | — | |
| POTTERTON COMMERCIAL SIRIUS 2 WH50 (FROM APRIL 2016) | — | — | — |
Showing 10 of 27 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
POTTERTON COMMERCIAL appliance manual — GOLD WH46, GOLD WH65
manualmanualPOTTERTON COMMERCIAL appliance manual — SIRIUS 2 WH110 (FROM APRIL 2016), SIRIUS 2 WH50, SIRIUS 2 WH50 (FROM APRIL 2016), SIRIUS 2 WH60, SIRIUS 2 WH60 (FROM APRIL 2016), SIRIUS 2 WH70, SIRIUS 2 WH70 (FROM APRIL 2016), SIRIUS 2 WH90 (FROM APRIL 2016)
manualmanualPOTTERTON COMMERCIAL appliance manual — SIRIUS 3 WH50, SIRIUS 3 WH60, SIRIUS 3 WH70
manualmanualPOTTERTON COMMERCIAL appliance manual — SIRIUS 3 WH90
manualmanualPOTTERTON COMMERCIAL appliance manual — SIRIUS FS 130-160, SIRIUS FS 90-105
manualmanualPOTTERTON COMMERCIAL appliance manual — SIRIUS FS 50-70
manualmanualPOTTERTON COMMERCIAL appliance manual — SIRIUS WH110, SIRIUS WH90
manualmanualPOTTERTON COMMERCIAL appliance manual — SIRIUS WH50, SIRIUS WH60, SIRIUS WH70
manualNo technical questions yet for this part.
