Worcester Bosch

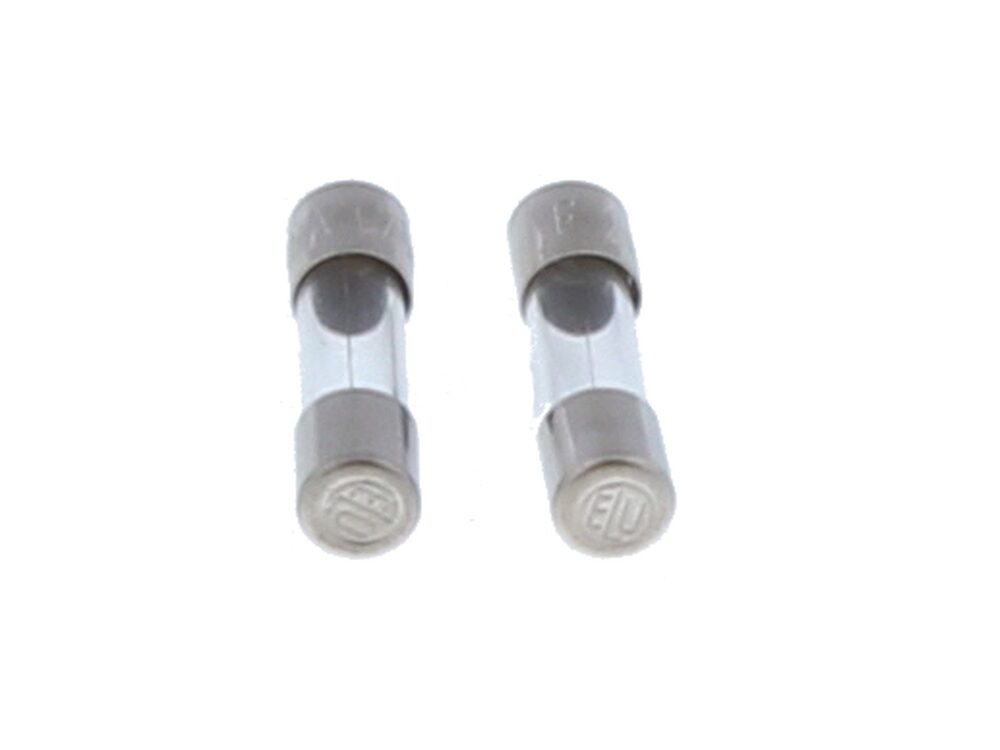

Worcester Bosch Fuse Pack CDI 77161922060
Worcester Bosch CDI fuse pack, part 77161922060, for 24 CDI and other CDI boiler variants; protects the appliance's electrical circuits.
At a glance
- Part type: Fuses
- Also known as 1011537
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£8.52
£7.10 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 77161922060 is a fuse pack supplied for CDI-series boilers. The fuses protect the appliance's electrical circuits, interrupting the supply if current rises beyond the designed limit, so a blown fuse is often the first sign of an underlying electrical fault rather than a fault in the fuse itself. This pack is the correct service item for the CDI models listed in the compatibility table below.
Signs this part needs replacing
- The boiler is completely dead with no display, no fan and no ignition sequence
- The appliance repeatedly blows a fuse shortly after power is restored
- Intermittent shutdowns or loss of power during a heating or hot water demand
- A visibly blackened, discoloured or broken fuse element
- Fuse failure following work on the wiring, pump, fan or PCB
Before you order
- Check the GC number and appliance serial plate to confirm the boiler is a CDI variant covered by this pack
- Confirm the previous number SPK0130 if you are matching against an older parts list
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Fuses |
|---|
Compliance
| Manufacturer part number (MPN) | 77161922060 |
|---|---|
| GC number | 299-357 |
| Barcode / EAN | 4010009741725 |
| Commodity code | 8536 10 10 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | SPK0130, 1011537 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 CDI BF NG | 47-311-29 | 47-311-29 | — | — |
| WORCESTER 24 CDI OF LPG | 47-311-33 | 47-311-33 | — | — |
| WORCESTER 24 CDI OF NG | 47-311-32 | 47-311-32 | — | — |
| WORCESTER 24 CDI RSF LPG | 47-311-31 | 47-311-31 | — | — |
| WORCESTER 24 CDI RSF NG | 47-311-30 | 47-311-30 | — | — |
| WORCESTER 24i RSF COMBI NG (NOV 2004) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 24i RSF COMBI NG (SEP 2001) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 26 CDI RSF NG | 47-311-41 | 47-311-41 | — | — |
| WORCESTER 26 CDI XTRA RSF LPG | 47-311-42 | 47-311-42 | — | — |
| WORCESTER 26 CDI XTRA RSF NG | 47-311-41 | 47-311-41 | — | — |
Showing 10 of 32 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 24 CDI BF NG (GC 47-311-29)
manualmanualWORCESTER appliance manual — 24 CDI OF LPG (GC 47-311-33), 24 CDI OF NG (GC 47-311-32)
manualmanualWORCESTER appliance manual — 24 CDI RSF LPG (GC 47-311-31), 24 CDI RSF NG (GC 47-311-30)
manualmanualWORCESTER appliance manual — 24i RSF COMBI NG (NOV 2004) (GC 47-311-37), 24i RSF COMBI NG (SEP 2001) (GC 47-311-37)
manualmanualWORCESTER appliance manual — 26 CDI RSF NG (GC 47-311-41), 26 CDI XTRA RSF LPG (GC 47-311-42), 26 CDI XTRA RSF NG (GC 47-311-41)
manualmanualWORCESTER appliance manual — 28 CDI RSF LPG (GC 47-311-35), 28 CDI RSF NG (GC 47-311-34)
manualmanualWORCESTER appliance manual — 28i RSF NG (GC 47-311-54)
manualmanualWORCESTER appliance manual — 35 CDI II RSF LPG (GC 47-311-59), 35 CDI II RSF NG (GC 47-311-58)
manualmanualWORCESTER appliance manual — 35 CDI RSF LPG (GC 47-311-40), 35 CDI RSF NG (GC 47-311-39)
manualNo technical questions yet for this part.
