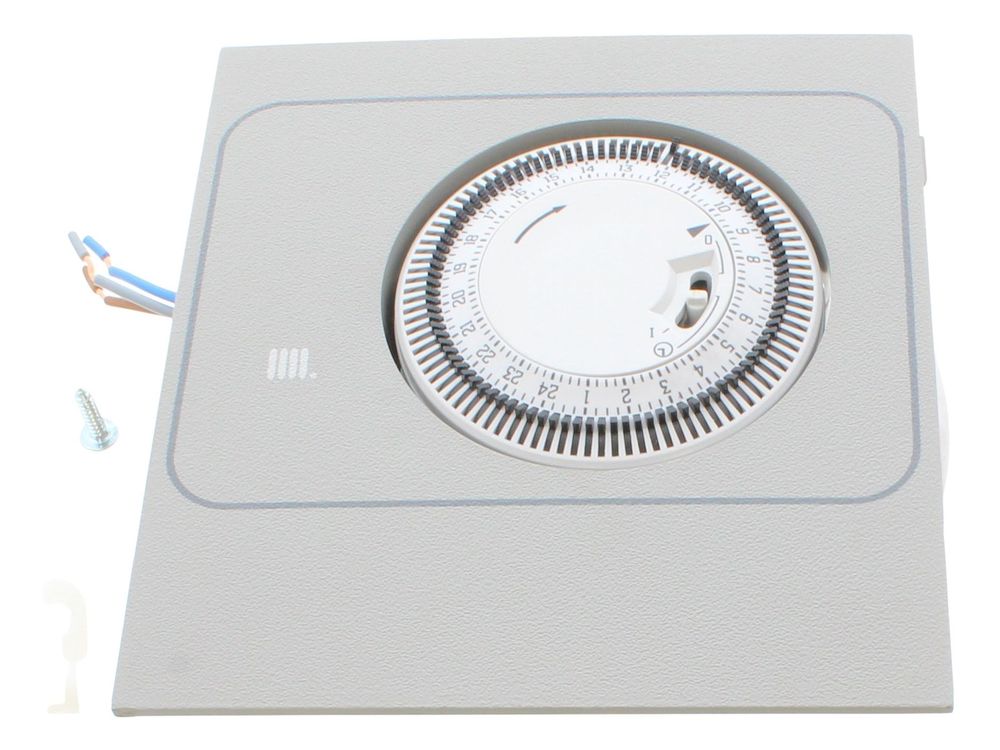

Worcester Bosch Mechanical Timer CDi 77161920020
Worcester Bosch CDi mechanical timer (77161920020) for CDi, CDiXtra, i Series and Bosch boilers, controlling heating and hot water on/off times.
At a glance
- Part type: Clocks and timers
- Also known as 1011431, N6195
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£169.81
£141.51 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch mechanical timer is a plug-in time switch that controls when the heating and hot water circuits run on compatible boilers. It is also referred to as a clock, programmer or time switch, and gives the user direct control over on and off periods to suit daily routines. The unit is designed for the CDi Series, CDiXtra Series, i Series and Bosch boiler ranges.
Signs this part needs replacing
- The boiler stops responding to the set programme and runs only on continuous or manual operation
- The timer dial becomes stiff, slips or will not hold the selected switching times
- Heating or hot water fails to come on at the programmed period
- The clock loses time or drifts, so switching points move away from the intended schedule
- Physical damage to the dial, pins or housing on the front of the control panel
Before you order
- Check the boiler's GC number and serial plate against the compatibility list to confirm the correct timer for your appliance
- Confirm the existing timer's part number and any alternative numbers before ordering
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Clocks & Timers |
|---|
Compliance
| Manufacturer part number (MPN) | 77161920020 |
|---|---|
| GC number | 299-360 |
| Barcode / EAN | 4010009741114 |
| Commodity code | 9107 00 00 00 |
| GPC classification | Heating System Controls |
| Alternative numbers | WB77161920020, ZAMAJ232, 1011431, N6195 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 CDI BF NG | 47-311-29 | 47-311-29 | — | — |
| WORCESTER 24 CDI OF LPG | 47-311-33 | 47-311-33 | — | — |
| WORCESTER 24 CDI OF NG | 47-311-32 | 47-311-32 | — | — |
| WORCESTER 24 CDI RSF LPG | 47-311-31 | 47-311-31 | — | — |
| WORCESTER 24 CDI RSF NG | 47-311-30 | 47-311-30 | — | — |
| WORCESTER 24i RSF COMBI NG (NOV 2004) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 24i RSF COMBI NG (SEP 2001) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 26 CDI RSF NG | 47-311-41 | 47-311-41 | — | — |
| WORCESTER 26 CDI XTRA RSF LPG | 47-311-42 | 47-311-42 | — | — |
| WORCESTER 26 CDI XTRA RSF NG | 47-311-41 | 47-311-41 | — | — |
Showing 10 of 32 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 24 CDI BF NG (GC 47-311-29)
manualmanualWORCESTER appliance manual — 24 CDI OF LPG (GC 47-311-33), 24 CDI OF NG (GC 47-311-32)
manualmanualWORCESTER appliance manual — 24 CDI RSF LPG (GC 47-311-31), 24 CDI RSF NG (GC 47-311-30)
manualmanualWORCESTER appliance manual — 24i RSF COMBI NG (NOV 2004) (GC 47-311-37), 24i RSF COMBI NG (SEP 2001) (GC 47-311-37)
manualmanualWORCESTER appliance manual — 26 CDI RSF NG (GC 47-311-41), 26 CDI XTRA RSF LPG (GC 47-311-42), 26 CDI XTRA RSF NG (GC 47-311-41)
manualmanualWORCESTER appliance manual — 28 CDI RSF LPG (GC 47-311-35), 28 CDI RSF NG (GC 47-311-34)
manualmanualWORCESTER appliance manual — 28i RSF NG (GC 47-311-54)
manualmanualWORCESTER appliance manual — 35 CDI II RSF LPG (GC 47-311-59), 35 CDI II RSF NG (GC 47-311-58)
manualmanualWORCESTER appliance manual — 35 CDI RSF LPG (GC 47-311-40), 35 CDI RSF NG (GC 47-311-39)
manualNo technical questions yet for this part.
