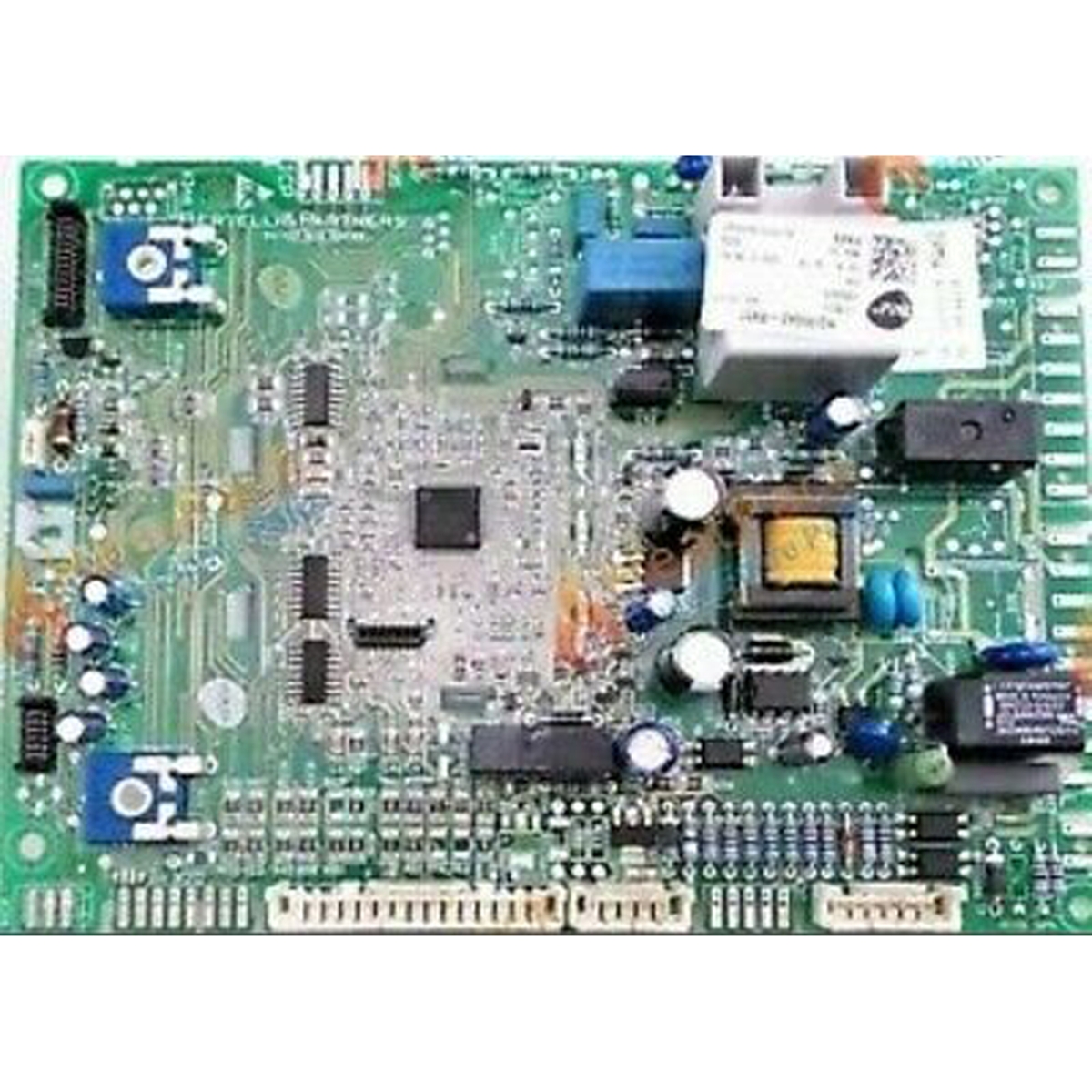

Baxi Printed Circuit Board Megaflo System 24 7692710
Baxi 7692710 printed circuit board for Megaflo System 24 IE ErP and System 24HE IE appliances, replacing previous number 5129833.
At a glance
- Part type: Printed circuit board
- Appliance family: Megaflo System 24 IE ErP / System 24HE IE
£240.12
£200.10 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 7692710 is a printed circuit board used in Baxi Megaflo System 24 IE ErP and System 24HE IE appliances. It is the control board that governs the appliance's operating sequence, handling ignition, fan and pump control, temperature regulation and fault monitoring. The board carries the previous Baxi part number 5129833.
Signs this part needs replacing
- The appliance shows no display or fails to power up when the demand is present.
- The boiler locks out repeatedly and will not reset, or resets only briefly before locking out again.
- The fan, pump or ignition sequence does not run in the correct order, or a stage is skipped entirely.
- Temperature control becomes erratic, with the appliance over- or under-shooting the set point.
- Fault codes appear that point to control or sequencing faults rather than to a sensor or mechanical component.
Before you order
- Confirm the serial number suffix on the appliance data badge. This board covers units ending BC and CC, and the serial range determines which variant is correct.
- Check the existing board for the number 5129833, which this part replaces.
- Confirm the appliance is a Megaflo System 24 IE ErP or System 24HE IE before ordering, as the board is specific to these models.
- Work on the appliance should be carried out by a competent person, with the electrical supply isolated before the board is removed.
Mechanical
| Part type | Printed Circuit Board |
|---|---|
| Appliance family | Megaflo System 24 IE ErP / System 24HE IE |
Compliance
| Manufacturer part number (MPN) | 7692710 |
|---|---|
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5129833 |
| Previous numbers | 5129833 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI MEGAFLO 24 SYSTEM IE ErP FROM SERIAL No. ENDING BC | — | — | — | |
| BAXI BAXI SYSTEM 24HE IE | — | — | — | |
| BAXI MEGAFLO 24 SYSTEM IE ErP SERIAL No. ENDING BC | — | — | — | |
| BAXI MEGAFLO 24 SYSTEM IE ErP SERIAL No. ENDING CC | — | — | — |
