Baxi 7690352 Combi 33kW LMU 34 Printed Circuit Board - 5 Coil
Baxi 7690352 printed circuit board for Combi 33 5 Coil appliances, controlling ignition, fan, pump and safety sequencing.
At a glance
- Part type: Printed Circuit Boards (PCB)
- Also known as 7625864082905, BAXI7690352, 263650835553, 43375518
Showing prices
£187.20
£156.00 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

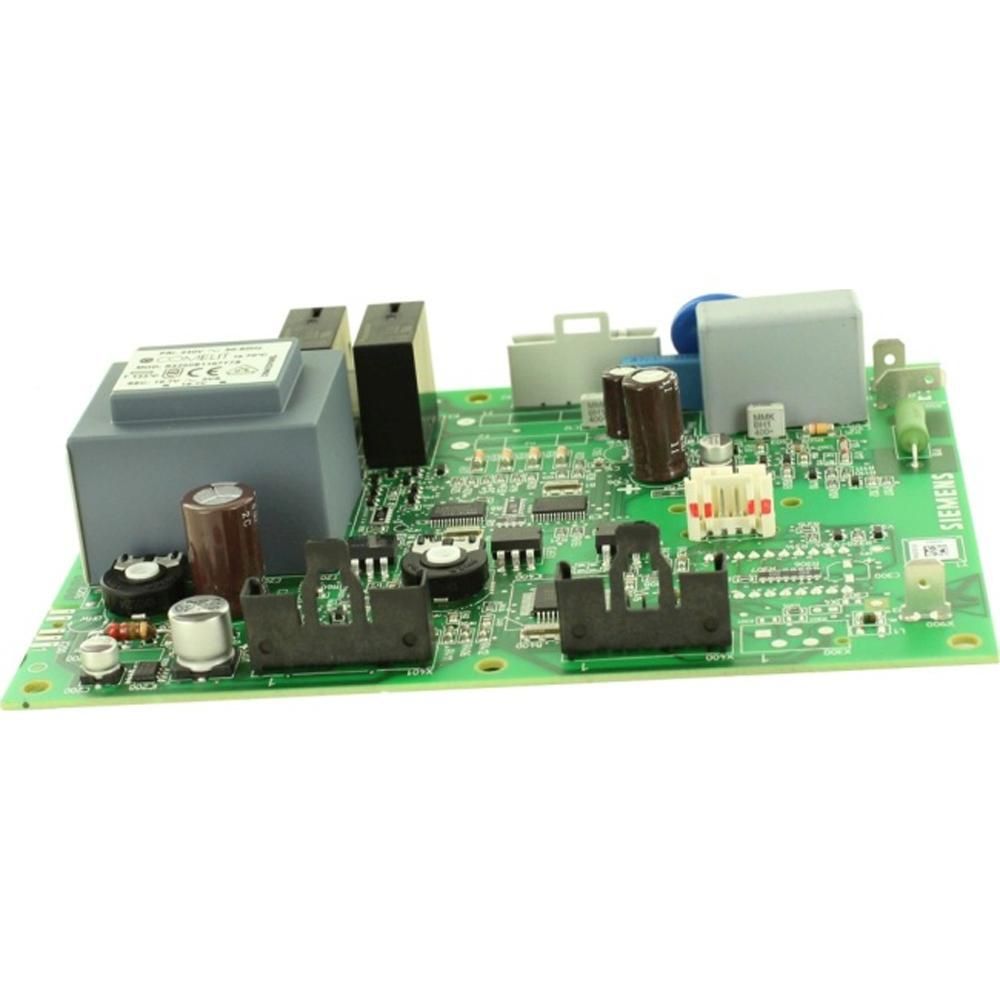

The Baxi 7690352 is a printed circuit board (PCB) supplied for the Baxi Combi 33 5 Coil appliance. It is the main control board, handling the sequencing of ignition, fan operation, pump running and the safety interlocks that keep the boiler working within its design limits. As a factory-specified board it carries the connector layout and software configuration matched to this combi model.
Signs this part needs replacing
- The boiler locks out repeatedly and will not complete an ignition sequence.
- No heating or hot water demand is registered, with the display dead or showing no response to controls.
- Fan, pump or diverter operation becomes erratic, or the boiler runs through a start cycle and stops.
- Fault codes appear on the display that clear only temporarily after a reset.
- Visible damage on the board itself, such as scorching, a blown track or a swollen capacitor.
Before you order
- Confirm the appliance model and GC number from the data plate, then match them against the compatibility list on this page.
- Check the part number printed on the existing board against BAXI7690352 before removal, as board revisions are model-specific.
- Inspect the wiring loom, connectors and any seals disturbed during access, and replace them if they show heat damage or brittleness.
- Work on the appliance should be carried out by a competent engineer, with the electrical supply isolated before the board is unplugged.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | BAXI7690352 |
|---|---|
| GC number | H92-801 |
| Commodity code | 8537 10 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 7625864082905, BAXI7690352, 263650835553, 43375518 |
