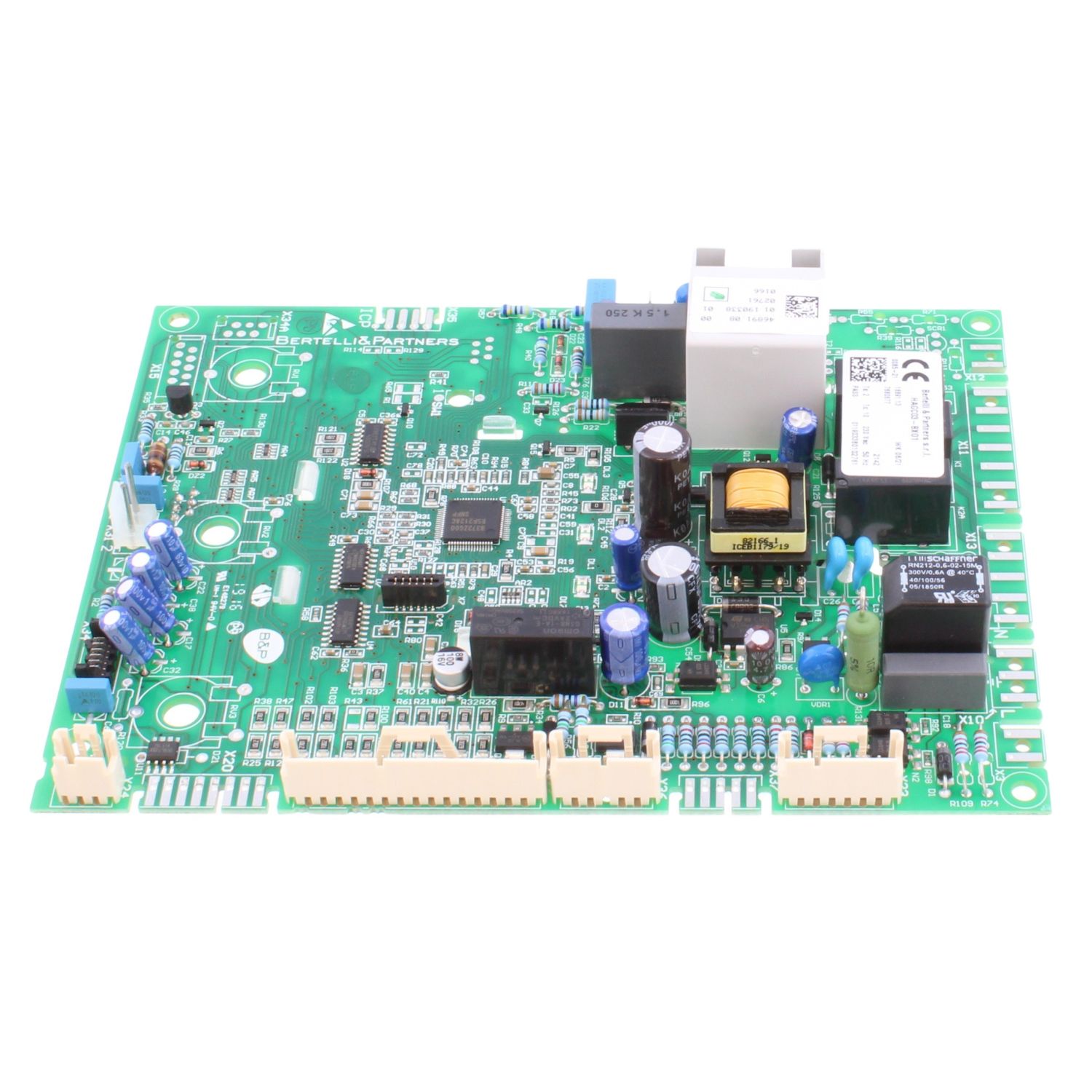

Baxi 7678800 Service PCB Combi System L4
At a glance
- Part type: Service PCB (printed circuit board)
- Also known as BAXI7678800
£162.00
£135.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 7678800 is a service printed circuit board (PCB) for Baxi combi and system boilers, supplied within the L4 electronics range. It is the main control board, handling ignition sequencing, burner modulation, pump and fan output, and the boiler's safety interlocks. Replacing a failed board restores normal control of the appliance.
Signs this part needs replacing
- The boiler locks out or fails to fire, with no ignition sequence starting
- No heating or hot water despite a call for heat from the programmer or thermostat
- Repeated fault codes, or a blank or erratic display on the boiler fascia
- Visible scorching, burn marks or bulging capacitors on the board
- Fan, pump or diverter valve not being driven while the boiler is running
Before you order
- Match 7678800 against the label on the existing PCB and the boiler data plate.
- Isolate the electrical supply and photograph or note the wiring connections before removing the old board.
- Check whether the replacement board needs parameter setting or a particular software variant for the appliance it is going into.
- Electrical control work on the boiler should be carried out by a competent engineer.
Mechanical
| Part type | PCB COMBI SYSTEM L4 |
|---|
Compliance
| Manufacturer part number (MPN) | 7678800 |
|---|---|
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5039177805908, BAXI7678800, BAXI7678800, BAXI7678800, 265075904518, 43375512 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI 124 ErP COMBI - SERIAL NUMBER ENDING BC | 47-077-25 | 47-077-25 | — | — |
| BAXI 128 ErP COMBI - SERIAL NUMBER ENDING BC | 47-077-26 | 47-077-26 | — | — |
| POTTERTON PROMAX ULTRA 24 COMBI ErP - SERIAL No. ENDING DC | 47-393-54 | 47-393-54 | — | — |
| POTTERTON PROMAX ULTRA 28 COMBI ErP - SERIAL No. ENDING DC | 47-393-55 | 47-393-55 | — | — |
| POTTERTON PROMAX ULTRA 33 COMBI ErP - SERIAL No. ENDING DC | 47-393-56 | 47-393-56 | — | — |
| POTTERTON PROMAX ULTRA 40 COMBI ErP - SERIAL No. ENDING DC | 47-393-57 | 47-393-57 | — | — |
| POTTERTON ULTRA SYSTEM 12 ErP | 41-592-71 | 41-592-71 | — | — |
| POTTERTON ULTRA SYSTEM 15 ErP | 41-592-72 | 41-592-72 | — | — |
| POTTERTON ULTRA SYSTEM 18 ErP | 41-592-73 | 41-592-73 | — | — |
| POTTERTON ULTRA SYSTEM 24 ErP | 41-592-74 | 41-592-74 | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — 124 ErP COMBI - SERIAL NUMBER ENDING BC (GC 47-077-25), 128 ErP COMBI - SERIAL NUMBER ENDING BC (GC 47-077-26)
manualmanualPOTTERTON appliance manual — PROMAX ULTRA 24 COMBI ErP - SERIAL No. ENDING DC (GC 47-393-54), PROMAX ULTRA 28 COMBI ErP - SERIAL No. ENDING DC (GC 47-393-55), PROMAX ULTRA 33 COMBI ErP - SERIAL No. ENDING DC (GC 47-393-56), PROMAX ULTRA 40 COMBI ErP - SERIAL No. ENDING DC (GC 47-393-57)
manualmanualPOTTERTON appliance manual — ULTRA SYSTEM 12 ErP (GC 41-592-71), ULTRA SYSTEM 15 ErP (GC 41-592-72), ULTRA SYSTEM 18 ErP (GC 41-592-73), ULTRA SYSTEM 24 ErP (GC 41-592-74), ULTRA SYSTEM 28 ErP (GC 41-592-75)
manualNo technical questions yet for this part.
