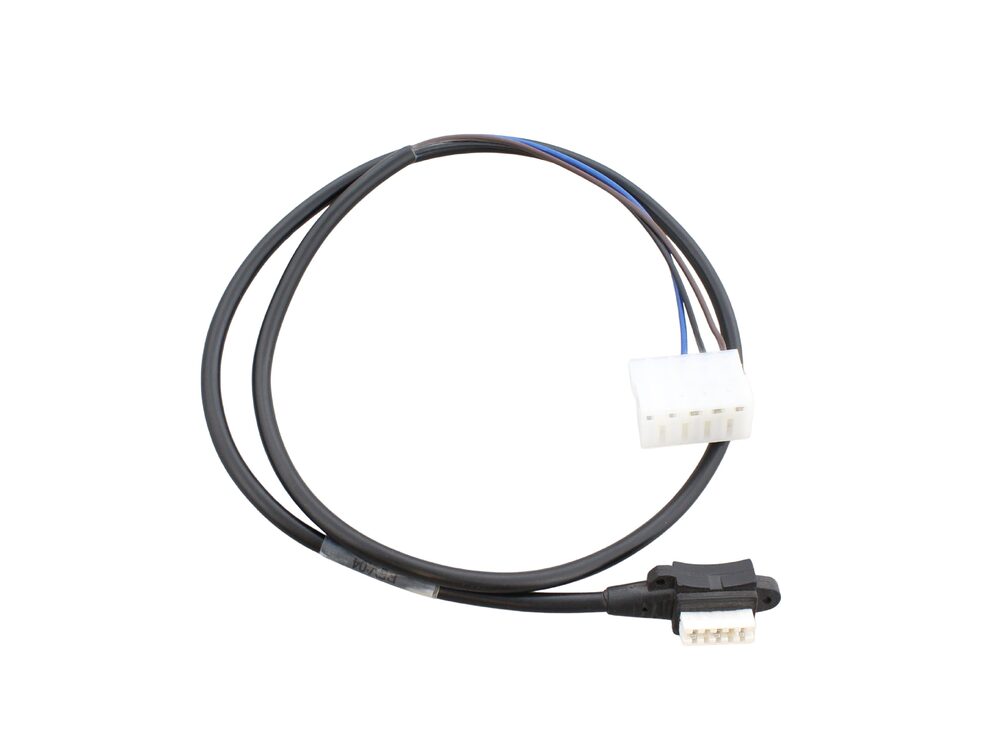

Baxi Wiring Harness 3 Way Valve 7661139
Baxi 7661139 wiring harness for the three-way valve on 124 and 128 ErP Combi boilers, linking the valve actuator to the control board.
At a glance
- Part type: Wiring
- Also known as 1132173
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£27.60
£23.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 7661139 is a wiring harness for the three-way valve assembly on Baxi ErP Combi boilers. It carries the electrical connection between the valve actuator and the boiler control board, allowing the valve to be driven between the central heating and domestic hot water positions. It is a Baxi spare produced for the 124 and 128 ErP Combi range.
Signs this part needs replacing
- The three-way valve does not move between heating and hot water positions
- The boiler stays in heating mode when hot water is drawn, or the reverse
- Fault codes or lockouts linked to the valve or the domestic hot water circuit
- Visible damage to the plug, pins or connector housing
- Chafed, cracked or broken conductors along the harness
- Valve operation becomes intermittent and changes when the harness is disturbed
Before you order
- Check the GC number and the serial number suffix on the appliance data badge against the compatibility list.
- The alternative part number 1132173 may appear on older stock or documentation for the same harness.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Wiring |
|---|
Compliance
| Manufacturer part number (MPN) | 7661139 |
|---|---|
| GC number | H90-622 |
| Commodity code | 8544 42 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1132173 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI 124 ErP COMBI - SERIAL NUMBER ENDING AC | 47-077-25 | 47-077-25 | — | — |
| BAXI 124 ErP COMBI - SERIAL NUMBER ENDING BC | 47-077-25 | 47-077-25 | — | — |
| BAXI 128 ErP COMBI - SERIAL NUMBER ENDING AC | 47-077-26 | 47-077-26 | — | — |
| BAXI 128 ErP COMBI - SERIAL NUMBER ENDING BC | 47-077-26 | 47-077-26 | — | — |
| BAXI BAXI 124 ErP COMBI - SERIAL NUM ENDING BC | — | — | — | |
| BAXI BAXI 128 ErP COMBI - SERIAL NUM ENDING BC | — | — | — |
