Hamworthy

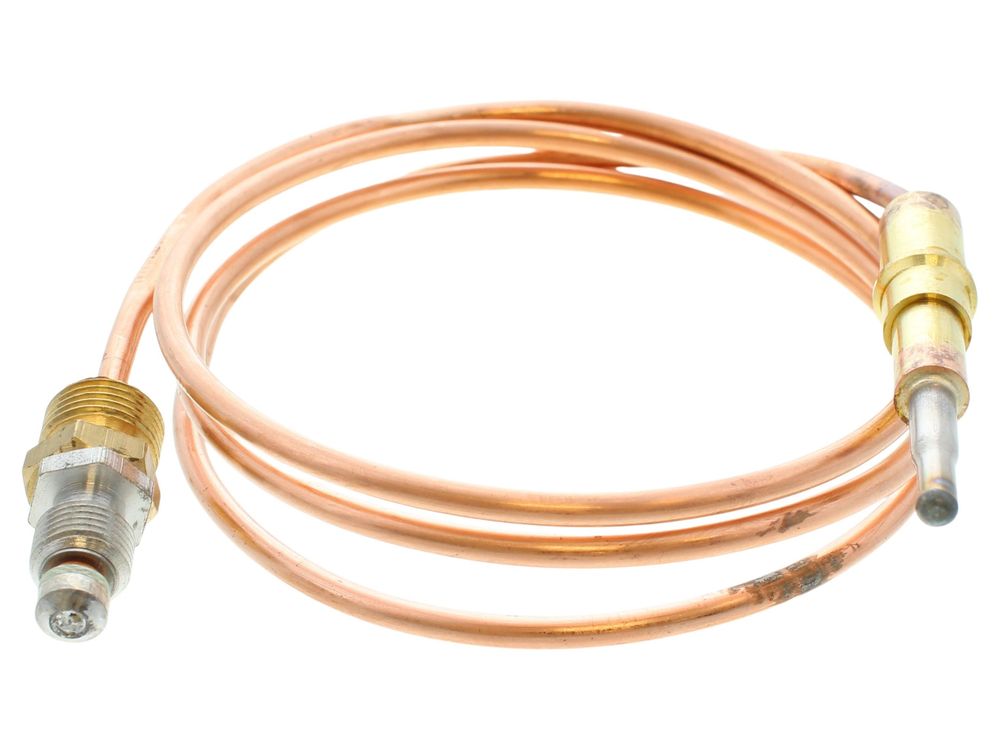

Hamworthy Thermocouple 747439864
Hamworthy thermocouple 747439864 for Purwell and Ur series permanent pilot floor standing boilers.
At a glance
- Also known as 2063820
£26.29
£21.91 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Hamworthy 747439864 is a thermocouple used in Hamworthy gas appliances. It sits in the pilot flame path and generates the small voltage that holds the gas valve open while the pilot is lit. It is listed under the catalogue references Q309A2754B-36" or Q309A2788 and is suited to permanent pilot floor standing boiler ranges.
Signs this part needs replacing
- The pilot flame will not stay lit once the control knob is released.
- The pilot lights but the boiler drops out shortly afterwards.
- Repeated lockouts or loss of the pilot on the same appliance.
- The pilot flame has to be held manually for an extended period before the valve stays open.
- Visible damage, sooting or a loose connection at the thermocouple tip or its terminal.
Before you order
- Check the appliance model and confirm it appears in the fits list above.
- Confirm whether the boiler is a permanent pilot type, as listed against this thermocouple.
- Match the catalogue reference against the thermocouple being removed, whether Q309A2754B-36" or Q309A2788.
- Check the condition of the pilot assembly and its connections before ordering, so any associated faults are identified at the same time.
Compliance
| Alternative numbers | 2063820 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HAMWORTHY PURWELL CLASSIC PC105 PERMANENT PILOT FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL CLASSIC PC120 PERMANENT PILOT FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL CLASSIC PC40 PERMANENT PILOT FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL CLASSIC PC50 PERMANENT PILOT FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL CLASSIC PC60 PERMANENT PILOT FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL CLASSIC PC70 PERMANENT PILOT FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL CLASSIC PC80 PERMANENT PILOT FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL CLASSIC PC95 PERMANENT PILOT FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL LOWLINE P105 PERMANENT PILOT FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL LOWLINE P120 PERMANENT PILOT FLOOR STANDING | — | — | — |
Showing 10 of 32 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
HAMWORTHY appliance manual — PURWELL CLASSIC PC105 PERMANENT PILOT FLOOR STANDING, PURWELL CLASSIC PC120 PERMANENT PILOT FLOOR STANDING, PURWELL CLASSIC PC40 PERMANENT PILOT FLOOR STANDING, PURWELL CLASSIC PC50 PERMANENT PILOT FLOOR STANDING, PURWELL CLASSIC PC60 PERMANENT PILOT FLOOR STANDING, PURWELL CLASSIC PC70 PERMANENT PILOT FLOOR STANDING, PURWELL CLASSIC PC80 PERMANENT PILOT FLOOR STANDING, PURWELL CLASSIC PC95 PERMANENT PILOT FLOOR STANDING
manualmanualHAMWORTHY appliance manual — PURWELL P120 PERMANENT PILOT FLOOR STANDING, PURWELL P40 PERMANENT PILOT FLOOR STANDING, PURWELL P50 PERMANENT PILOT FLOOR STANDING, PURWELL P60 PERMANENT PILOT FLOOR STANDING, PURWELL P70 PERMANENT PILOT FLOOR STANDING, PURWELL P80 PERMANENT PILOT FLOOR STANDING, PURWELL P95 PERMANENT PILOT FLOOR STANDING
manualmanualHAMWORTHY appliance manual — UR180 SERIES FLOOR STANDING, UR250 SERIES FLOOR STANDING, UR300 SERIES FLOOR STANDING, UR365 SERIES FLOOR STANDING, UR430 SERIES FLOOR STANDING, UR470 SERIES FLOOR STANDING
manualmanualHAMWORTHY appliance manual — UR235LL LOWLINE PERMANENT PILOT FLOOR STANDING, UR384LL LOWLINE PERMANENT PILOT FLOOR STANDING
manualNo technical questions yet for this part.
