Baxi 7224763 Potterton & Main 3-Way Valve Assembly With Bypass
At a glance
- Part type: Diverter and motorised valves
- Also known as BAXI7224763
Showing prices
£108.00
£90.00 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

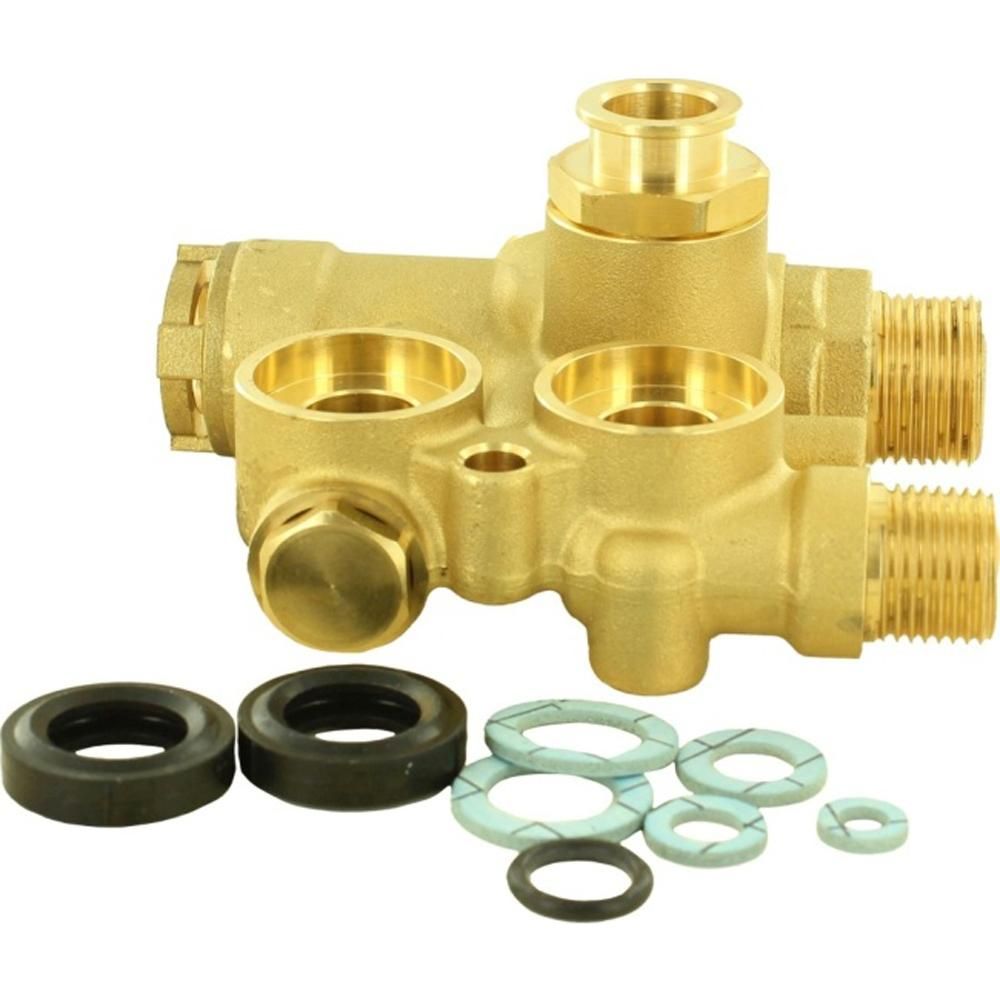

The Baxi 3 Way Valve Assembly With Bypass is a diverter and motorised valve component manufactured by Baxi. It sits within the appliance's water circuit and directs flow between the heating and hot water paths, with an integrated bypass to maintain circulation through the primary circuit. It is supplied under part number BAXI7224763.
Signs this part needs replacing
- Domestic hot water runs cold or only lukewarm while the heating circuit works normally
- Radiators heat up when only hot water is called for, or hot water is produced when only heating is demanded
- The valve head motor runs continuously, buzzes, or fails to move when the appliance changes mode
- Water weeps or drips from the valve body, spindle or connection points
- The appliance locks out or reports a flow or diverter fault during a mode change
Before you order
- Confirm the model and GC number on the appliance data badge match the compatibility information for this part
- Check the existing valve body and head markings against part number 7224763 before removing anything
- Inspect the sealing washers and O-rings on the valve connections and replace them if they are compressed or perished
- Isolate the water and electrical supplies to the appliance before starting work
Mechanical
| Part type | Diverter & Motorised Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | BAXI7224763 |
|---|---|
| GC number | H43-528 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5039177804994, BAXI7224763, BAXI7224763, BAXI7224763, 251836486287, 43375486 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI DUO-TEC 24 HE | 47-075-23 | 47-075-23 | — | — |
| BAXI DUO-TEC 28 HE | 47-075-25 | 47-075-25 | — | — |
| BAXI DUO-TEC 28 HE LPG | 47-075-39 | 47-075-39 | — | — |
| BAXI DUO-TEC 33 HE | 47-075-24 | 47-075-24 | — | — |
| BAXI DUO-TEC 40 HE | 47-075-26 | 47-075-26 | — | — |
| BAXI DUO-TEC COMBI 24 HE A (AFTER SERIAL No. BTG 0815) | 47-075-35 | 47-075-35 | — | — |
| BAXI DUO-TEC COMBI 24 HE A (BEFORE SERIAL No. BTG 0815) | 47-075-35 | 47-075-35 | — | — |
| BAXI DUO-TEC COMBI 28 HE A (AFTER SERIAL No. CAC 0929) | 47-075-36 | 47-075-36 | — | — |
| BAXI DUO-TEC COMBI 28 HE A (BEFORE SERIAL No. CAC 0929) | 47-075-36 | 47-075-36 | — | — |
| BAXI DUO-TEC COMBI 33 HE A (AFTER SERIAL No. BTH 1112) | 47-075-37 | 47-075-37 | — | — |
Showing 10 of 37 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
