Baxi

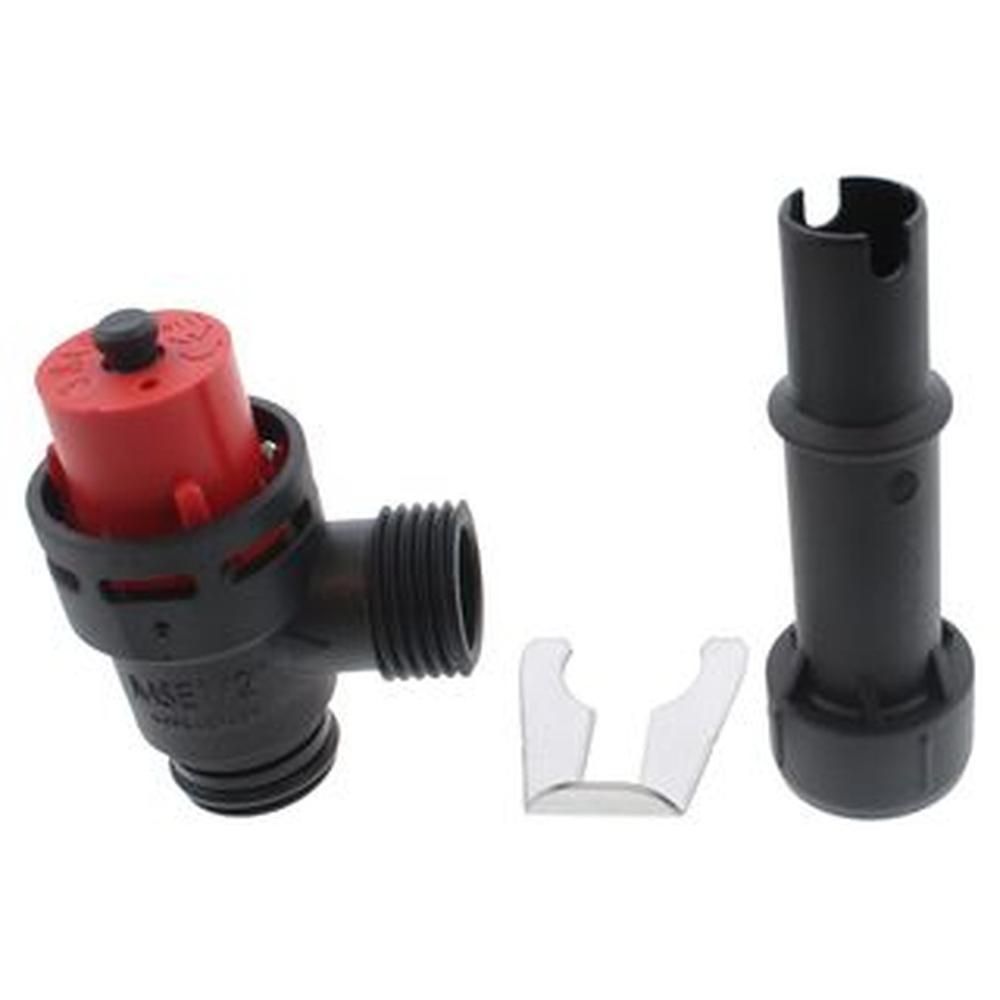

Baxi Safety Pressure Relief Valve 7216617
Baxi 7216617 safety pressure relief valve for Main Eco Combi and other Baxi combi boilers, relieving excess pressure in the appliance.
At a glance
- Part type: Safety pressure relief valve
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£60.00
£50.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 7216617 is a safety pressure relief valve manufactured by Baxi for use in its combi boiler range. It sits in the water circuit and opens automatically when internal pressure rises beyond the set limit, discharging through the outlet to protect the heat exchanger and other components from over-pressurisation. It is a direct replacement item for the valve originally fitted to the appliance.
Signs this part needs replacing
- Water continually dripping or running from the pressure relief discharge pipe when the system is cold
- System pressure gauge creeping up and the boiler losing pressure after the valve has discharged
- The valve failing to reseat after operating, leaving the discharge pipe wet
- Scale or debris holding the valve partially open, causing a constant weep
- Visible corrosion or damage around the valve body or its seating
Before you order
- Check the GC number on the appliance data badge against the list above to confirm the valve is correct for your model
- Compare the part number 7216617 with the marking on the valve being removed
- Inspect the valve seating and any sealing washer, and renew the seal if it is compressed or perished
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Temperature & Pressure Relief Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 7216617 |
|---|---|
| Commodity code | 8481 40 10 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI MAIN ECO COMBI 24KW | — | — | — | |
| BAXI BAXI MAIN ECO COMBI 28KW | — | — | — | |
| BAXI BAXI MAIN ECO COMBI 35KW | — | — | — | |
| BAXI BAXI MAIN ECO COMBI ErP 24 | — | — | — | |
| BAXI BAXI MAIN ECO COMBI ErP 28 | — | — | — | |
| BAXI BAXI MAIN ECO COMBI ErP 35 | — | — | — | |
| BAXI BAXI MAIN ECO SYSTEM 18KW | — | — | — | |
| BAXI BAXI MAIN ECO SYSTEM 24KW | — | — | — | |
| BAXI BAXI MAIN ECO SYSTEM ErP 18 | — | — | — | |
| BAXI BAXI MAIN ECO SYSTEM ErP 24 | — | — | — |
Showing 10 of 20 compatible appliances.
