Baxi

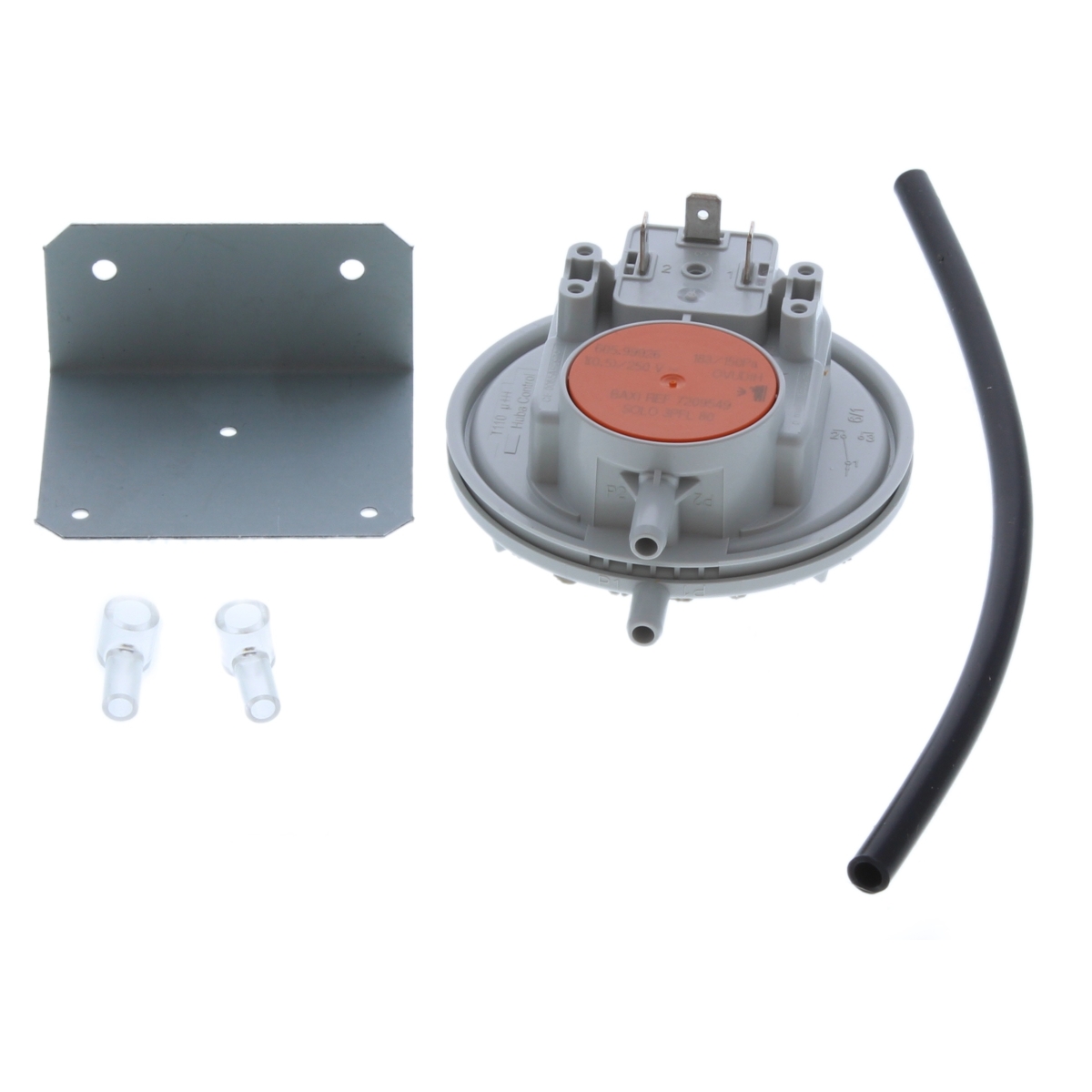

Baxi Pressure Switch Kit 80PF 720954401
Baxi 720954401 air pressure switch kit for Solo 3 60PF, 70PF and 80PF boilers, proving fan operation before the burner is allowed to fire.
At a glance
- Part type: Pressure switch kit
- Also known as 1119656
£78.00
£65.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 720954401 is an air pressure switch kit used on Baxi Solo 3 PF and Solo 3 PF System boilers. It monitors the pressure created by the combustion fan and signals the printed circuit board that the fan is running and clearing flue gases. If the fan stops or the pressure signal is lost, the board prevents the appliance from firing, so noxious products of combustion cannot build up inside the boiler.
Signs this part needs replacing
- The boiler locks out or fails to fire even though the fan runs
- The fan runs but the burner never lights, with the appliance repeatedly going to lockout
- Intermittent ignition that clears after a reset and returns shortly afterwards
- The fan is noisy, slow to start or stops part-way through a cycle
- The printed circuit board reports a fan or air pressure fault
Before you order
- Check the GC number and model plate on the appliance against the compatibility list below, as Solo 3 variants differ by output and system type
- Confirm the number on the existing switch matches 720954401, 246055 or 1119656 before ordering
Mechanical
| Part type | Pressure Switches |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 720954401 |
|---|---|
| GC number | E26-221 |
| Barcode / EAN | 5039177757672 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 246055, 1119656 |
| Previous numbers | 246055 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI SOLO 3 60PF | — | — | — | |
| BAXI BAXI SOLO 3 60PF SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 70PF | — | — | — | |
| BAXI BAXI SOLO 3 70PF SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 80PF | — | — | — | |
| BAXI BAXI SOLO 3 80PF SYSTEM | — | — | — | |
| BAXI SOLO 3 80 PF | 41-075-09 | 41-075-09 | — | — |
| BAXI SOLO 3 80 PF SYSTEM | 41-075-17 | 41-075-17 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
