Baxi

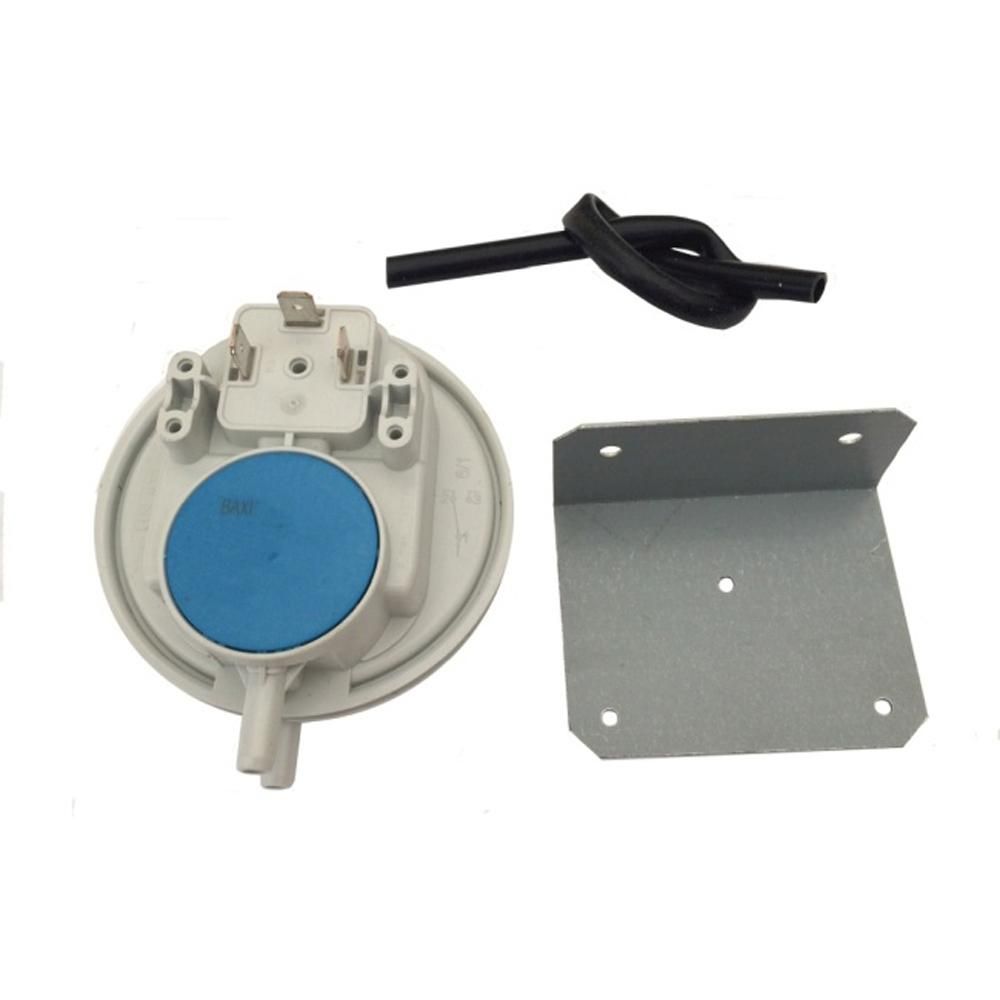

Baxi Pressure Switch Solo 60 PF 720954201
Baxi pressure switch for Solo 3 60PF and 70PF boilers, part 720954201, used to detect system activation and flow changes.
At a glance
- Part type: Pressure switch
- Appliance family: Baxi Solo 3 60PF, 60PFL and 70PF
- Also known as 1119352
£75.60
£63.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi pressure switch is a replacement sensing component used on Baxi Solo 3 PF and PFL appliances. It monitors system activation and changes in flow, signalling the boiler's control circuit so that the appliance responds correctly during a demand for heat. This is the switch supplied under part number 720954201 and is listed by the manufacturer under the pressure switches spare category.
Signs this part needs replacing
- The boiler fails to fire on a call for heat even though the pump and fan run.
- Repeated lockouts or a lockout that clears only after a reset, then returns.
- Intermittent ignition or a boiler that starts and stops erratically through a demand cycle.
- The appliance runs for a short period and then shuts down before reaching temperature.
- Fault diagnosis points to the pressure sensing circuit rather than the fan, PCB or gas valve.
Before you order
- Confirm the appliance GC number against the compatibility list, as the same model name can be built to different specifications.
- Check the numbers on the existing switch and compare them with 720954201, 1119352, 246054 and 5111609 before ordering.
- Inspect the sensing tube and its connections at the same time, as a blocked or split tube can produce the same symptoms as a failed switch.
Mechanical
| Part type | Pressure Switches |
|---|---|
| Appliance family | Baxi Solo 3 60PF / 60PFL / 70PF |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 720954201 |
|---|---|
| GC number | E26-219 |
| Barcode / EAN | 5039177757658 |
| Commodity code | 8536 50 80 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 246054, 5111609, 1119352 |
| Previous numbers | 246054, 5111609 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI SOLO 3 60PF | — | — | — | |
| BAXI BAXI SOLO 3 60PF SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 60PFL | — | — | — | |
| BAXI BAXI SOLO 3 60PFL SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 70PF | — | — | — | |
| BAXI BAXI SOLO 3 70PF SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 70PFL | — | — | — | |
| BAXI BAXI SOLO 3 70PFL SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 80PF | — | — | — | |
| BAXI BAXI SOLO 3 80PF SYSTEM | — | — | — |
Showing 10 of 18 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — SOLO 3 60 PF (GC 41-075-07)
manualmanualBAXI appliance manual — SOLO 3 60 PF SYSTEM (GC 41-075-15)
manualmanualBAXI appliance manual — SOLO 3 60 PFL (GC 41-075-23), SOLO 3 80 PFL (GC 41-075-30)
manualmanualBAXI appliance manual — SOLO 3 60 PFL SYSTEM (GC 41-075-28), SOLO 3 80 PFL SYSTEM (GC 41-075-31)
manualNo technical questions yet for this part.
