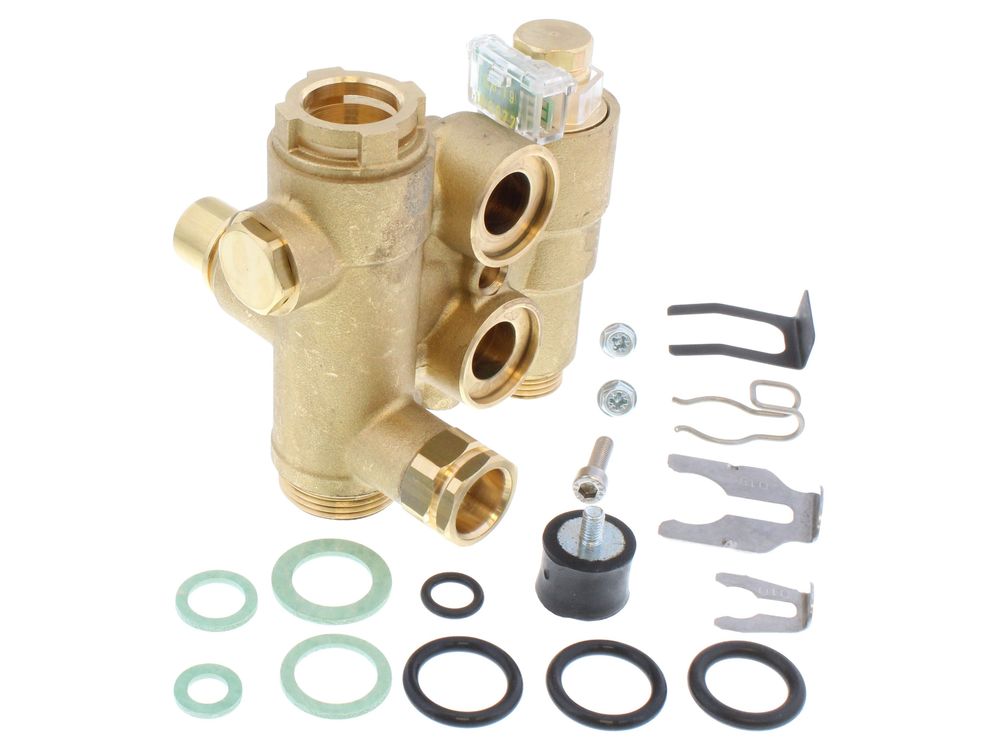

Baxi Hydro Block Right Hand 720544201
Right-hand hydro block for Baxi and Broag Remeha Avanta Plus combi boilers, part 720544201, previously S62773.
At a glance
- Part type: Diverter valves and hydraulics
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£276.00
£230.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 720544201 is a right-hand hydro block forming part of the hydraulic and manifold assembly on Avanta Plus and Avanta Exclusive combi boilers. It carries water through the heating and domestic hot water circuits inside the appliance. The same component is fitted to Broag Remeha versions of these combi models.
Signs this part needs replacing
- No domestic hot water, or hot water that runs intermittently while the boiler is otherwise working
- Water weeping from the hydro block or the surrounding hydraulic assembly
- System pressure dropping repeatedly, or the boiler failing to hold pressure
- Heating that does not come on when a hot tap is opened, or error codes linked to the hydraulic circuit
- Visible scale, corrosion, cracking or distortion on the block body
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering.
- Confirm the previous part number S62773 if you are working from older documentation or an older stock reference.
- Check whether a gasket or seal kit is needed for the joint being disturbed during replacement.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Hydraulic & Manifold Components |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 720544201 |
|---|---|
| GC number | H39-174 |
| Barcode / EAN | 720544201 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | S62773 |
| Previous numbers | S62773 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI AVANTA PLUS COMBI 35C | 47-075-79 | 47-075-79 | — | — |
| BAXI AVANTA PLUS COMBI 39C | 47-075-80 | 47-075-80 | — | — |
| BROAG REMEHA AVANTA EXCLUSIVE 35C | 47-288-04 | 47-288-04 | — | — |
| BROAG REMEHA AVANTA EXCLUSIVE 39C | 47-288-05 | 47-288-05 | — | — |
| BROAG REMEHA AVANTA PLUS COMBI 35C | 47-673-03 | 47-673-03 | — | — |
| BROAG REMEHA AVANTA PLUS COMBI 39C | 47-673-04 | 47-673-04 | — | — |
| BROAG REMEHA REMEHA AVANTA PLUS 35C COMBI | — | — | — | |
| BROAG REMEHA REMEHA AVANTA PLUS 39C COMBI | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — AVANTA PLUS COMBI 35C (GC 47-075-79), AVANTA PLUS COMBI 39C (GC 47-075-80)
manualmanualBROAG REMEHA appliance manual — AVANTA EXCLUSIVE 35C (GC 47-288-04), AVANTA EXCLUSIVE 39C (GC 47-288-05)
manualmanualBROAG REMEHA appliance manual — AVANTA PLUS COMBI 35C (GC 47-673-03), AVANTA PLUS COMBI 39C (GC 47-673-04)
manualNo technical questions yet for this part.
