Baxi

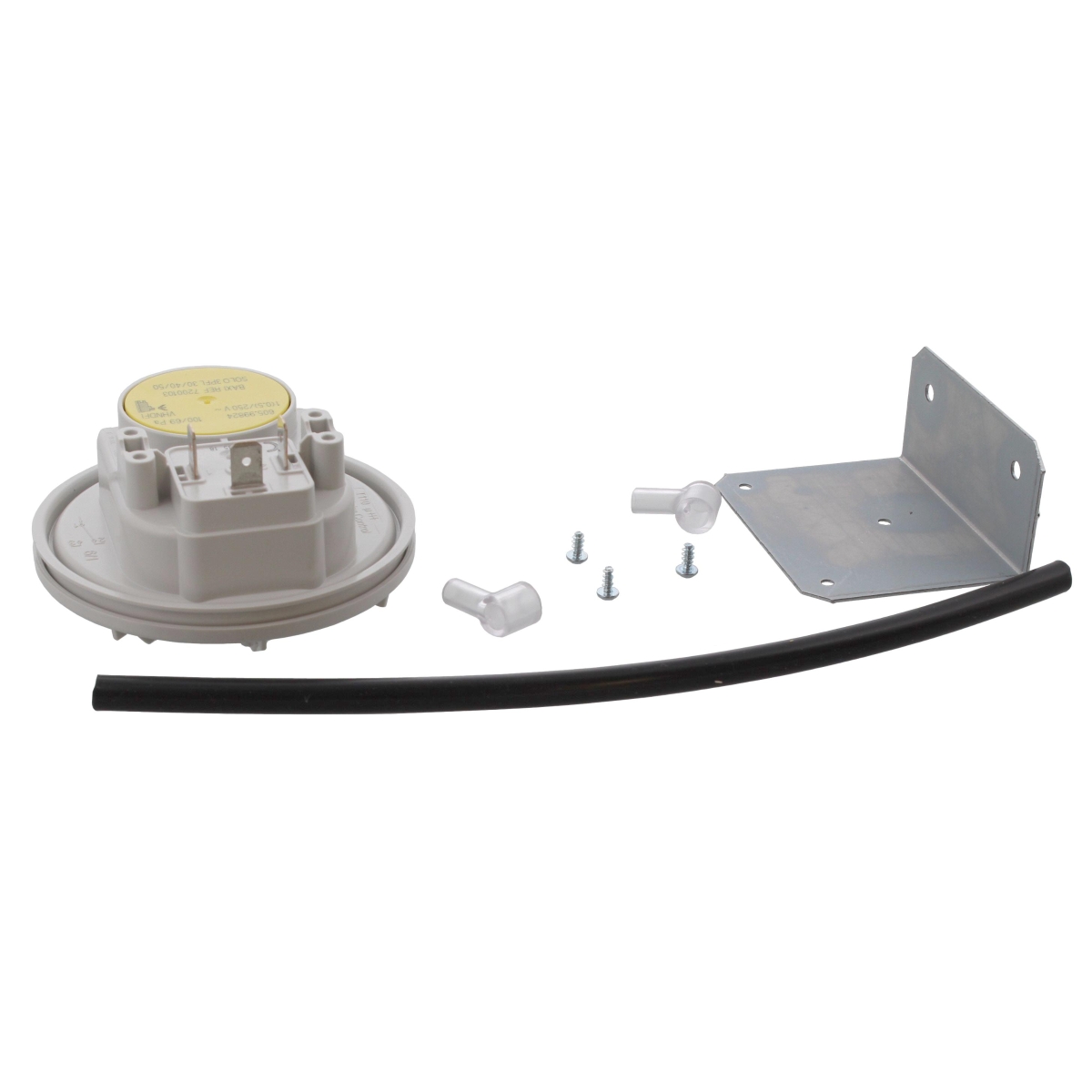

Baxi Air Pressure Switch Solo 3 720011401
Baxi air pressure switch 720011401 for Solo 3 boilers, monitoring fan pressure so the appliance only fires when the fan is running correctly.
At a glance
- Part type: Air pressure switch
- Appliance family: Solo 3
- Also known as 1115886
£91.20
£76.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi air pressure switch, part number 720011401, is a safety device fitted to Baxi Solo 3 boilers. It senses the pressure created by the combustion fan and passes that signal to the appliance's printed circuit board, which checks the switch is working before allowing the boiler to fire. If the fan stops or the pressure signal is lost, the switch prevents the boiler from starting, so unburnt gas and flue products cannot build up inside the appliance.
Signs this part needs replacing
- The boiler locks out on start-up or shortly after the fan begins to run.
- The fan spins but the appliance will not fire, with the PCB reporting a fan or air pressure fault.
- Repeated lockouts that clear on reset and then return.
- The boiler shuts down mid-cycle and will not restart until it has been reset.
- Fault code or diagnostic indication pointing to the air pressure switch circuit.
Before you order
- Check the model and GC number on the appliance data badge against the compatibility list, as the switch is used across several Solo 3 variants.
- Confirm the part number on the existing switch matches 720011401 or one of the alternative numbers listed below.
Mechanical
| Part type | Pressure Switches |
|---|---|
| Appliance family | Solo 3 |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 720011401 |
|---|---|
| GC number | E26-186 |
| Barcode / EAN | 5039177714682 |
| Commodity code | 8536 50 80 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 246053, 1115886 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI SOLO 3 30PF | — | — | — | |
| BAXI BAXI SOLO 3 30PF SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 30PFL | — | — | — | |
| BAXI BAXI SOLO 3 30PFL SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 40PF | — | — | — | |
| BAXI BAXI SOLO 3 40PF SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 40PFL | — | — | — | |
| BAXI BAXI SOLO 3 40PFL SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 50PF | — | — | — | |
| BAXI BAXI SOLO 3 50PF SYSTEM | — | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — SOLO 3 30 PF (GC 41-075-04), SOLO 3 40 PF (GC 41-075-05), SOLO 3 50 PF (GC 41-075-06)
manualmanualBAXI appliance manual — SOLO 3 30 PF SYSTEM (GC 41-075-12), SOLO 3 40 PF SYSTEM (GC 41-075-13), SOLO 3 50 PF SYSTEM (GC 41-075-14)
manualmanualBAXI appliance manual — SOLO 3 30 PFL (GC 41-075-20), SOLO 3 40 PFL (GC 41-075-21), SOLO 3 50 PFL (GC 41-075-22)
manualmanualBAXI appliance manual — SOLO 3 30 PFL SYSTEM (GC 41-075-25), SOLO 3 40 PFL SYSTEM (GC 41-075-26), SOLO 3 50 PFL SYSTEM (GC 41-075-27)
manualNo technical questions yet for this part.
