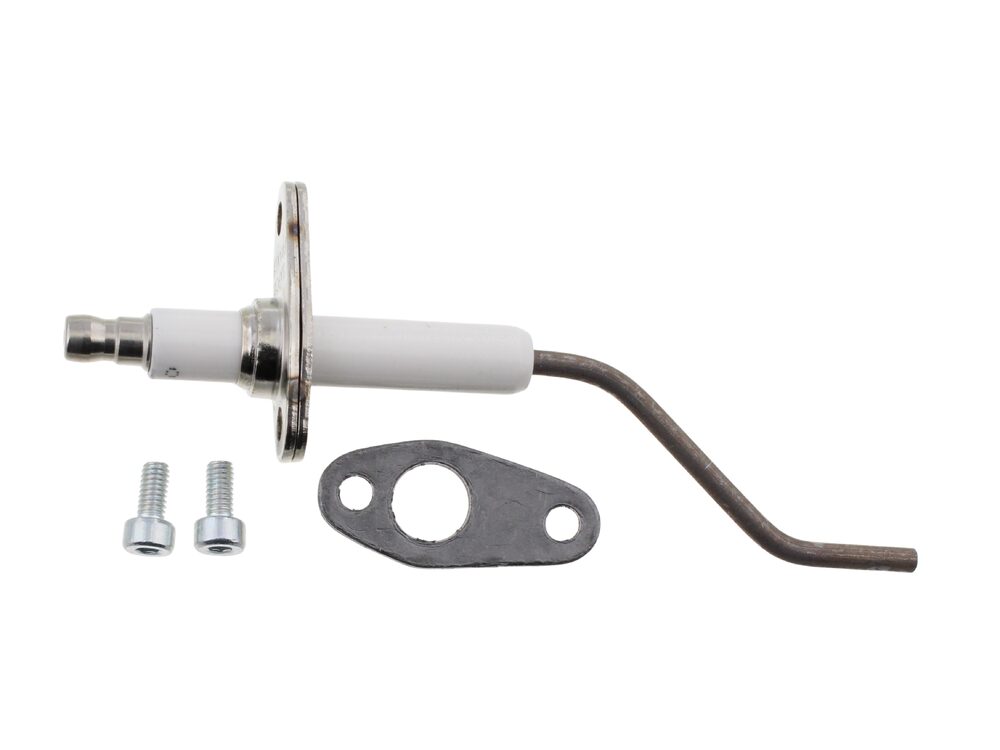

Baxi Spark Detection Electrode 711509200
Baxi 711509200 spark detection electrode for Quinta Ace S commercial boilers and Potterton Commercial appliances, part of the ignition and flame-monitoring circuit.
At a glance
- Part type: Spark detection electrode
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£19.20
£16.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 711509200 is a spark detection electrode used in the ignition and flame-monitoring circuit of Baxi and Potterton commercial boilers. Mounted at the burner, it produces the ignition spark and returns the flame signal to the control board. It sits in the Electrodes & Ignitions spare part group and is used across the Quinta Ace S commercial range and Potterton Commercial appliances.
Signs this part needs replacing
- The boiler fails to light and locks out during the ignition sequence
- No spark is visible at the burner when the ignition cycle runs
- Repeated lockouts that clear on reset but return on the next heat demand
- Cracking, erosion or carbon tracking on the electrode tip or ceramic insulator
- Flame signal is lost shortly after ignition, causing the burner to drop out
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering
- Inspect the existing electrode, its lead and the electrode gap as part of the diagnosis
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Electrodes & Ignitions |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 711509200 |
|---|---|
| Barcode / EAN | 711509200 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI QUINTA ACE S 110KW | — | — | — | |
| BAXI QUINTA ACE S 50KW | — | — | — | |
| BAXI QUINTA ACE S 60KW | — | — | — | |
| BAXI QUINTA ACE S 70KW | — | — | — | |
| BAXI QUINTA ACE S 90KW | — | — | — | |
| POTTERTON COMMERCIAL POTTERTON COMMERCIAL SPARES | — | — | — | |
| POTTERTON COMMERCIAL SIRIUS 2 WH110 | — | — | — | |
| POTTERTON COMMERCIAL SIRIUS 2 WH50 | — | — | — | |
| POTTERTON COMMERCIAL SIRIUS 2 WH60 | — | — | — | |
| POTTERTON COMMERCIAL SIRIUS 2 WH70 | — | — | — |
Showing 10 of 16 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
POTTERTON COMMERCIAL appliance manual — SIRIUS 2 WH110, SIRIUS 2 WH50, SIRIUS 2 WH60, SIRIUS 2 WH70, SIRIUS 2 WH90
manualmanualPOTTERTON COMMERCIAL appliance manual — SIRIUS 3 WH110, SIRIUS 3 WH90
manualmanualPOTTERTON COMMERCIAL appliance manual — SIRIUS 3 WH50, SIRIUS 3 WH60, SIRIUS 3 WH70
