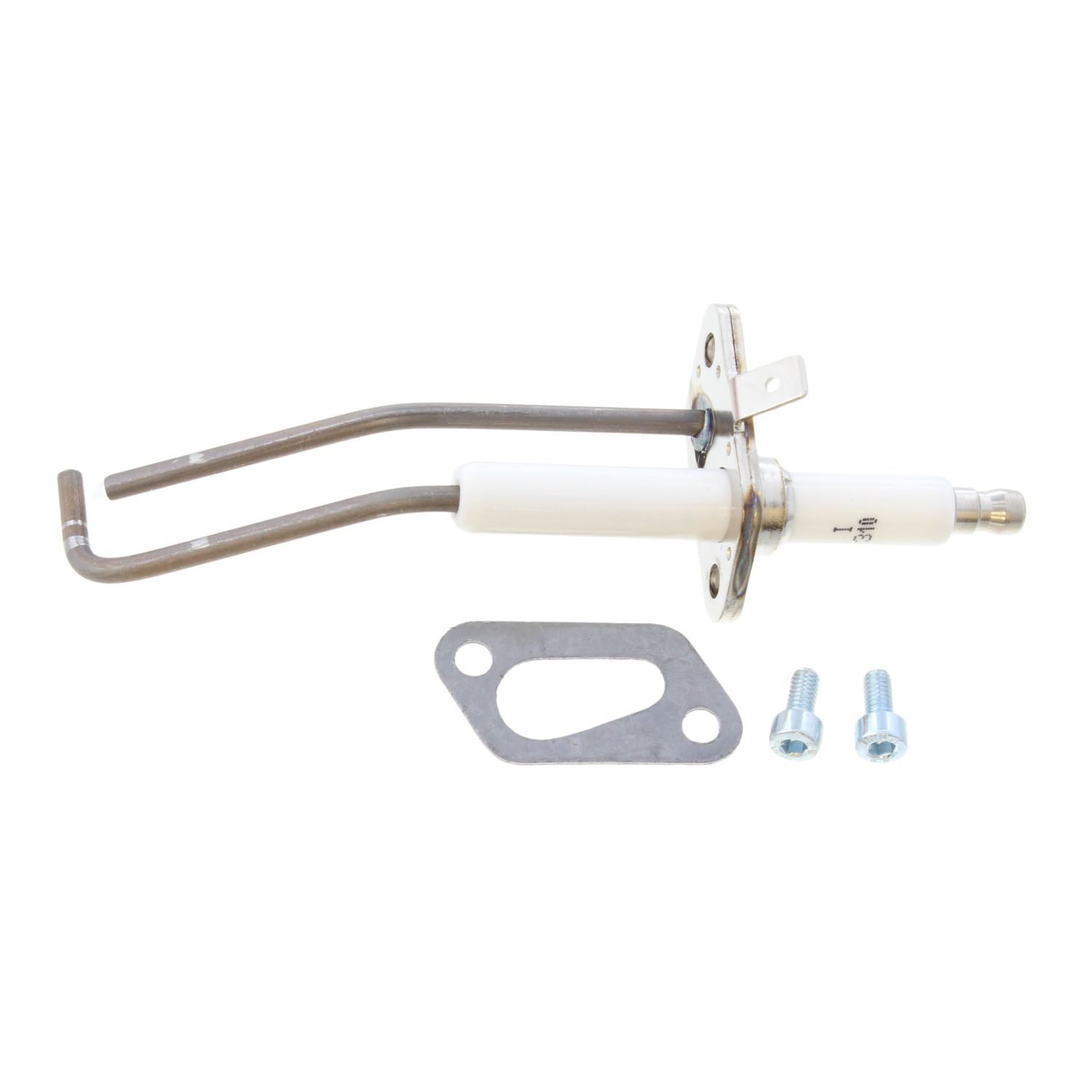

Baxi Spark Ignition Electrode 711509000
Baxi 711509000 spark ignition electrode for Potterton Commercial and Baxi Quinta Ace S appliances, supplying the ignition spark at burner start-up.
At a glance
- Part type: Electrode
- Appliance family: Potterton Commercial and Baxi Quinta Ace S
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£21.60
£18.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 711509000 is a spark ignition electrode used in Potterton and Baxi commercial heating appliances. It sits at the burner and provides the high-voltage spark that lights the gas at start-up, working alongside the ignition lead and control board. It is listed under the ignitors and spark generators spare part group and is common to the Quinta Ace S range.
Signs this part needs replacing
- The appliance fails to light and locks out on an ignition fault
- Repeated ignition attempts with no flame established at the burner
- Cracking, erosion or heavy carbon build-up visible on the electrode tip
- The spark arcs to earth instead of jumping the electrode gap
- Intermittent lockouts that clear after a reset but return on the next demand
Before you order
- Check the appliance model and GC number against the compatibility list before ordering
- Confirm the part number on the existing electrode matches 711509000
- Inspect the ignition lead and any burner cover seal while the appliance is open, and replace if damaged
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Ignitors & Spark Generators |
|---|---|
| Appliance family | Potterton Commercial / Baxi Quinta Ace S |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 711509000 |
|---|---|
| Barcode / EAN | 711509000 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI QUINTA ACE S 110KW | — | — | — | |
| BAXI QUINTA ACE S 130KW | — | — | — | |
| BAXI QUINTA ACE S 150KW | — | — | — | |
| BAXI QUINTA ACE S 50KW | — | — | — | |
| BAXI QUINTA ACE S 60KW | — | — | — | |
| BAXI QUINTA ACE S 70KW | — | — | — | |
| BAXI QUINTA ACE S 90KW | — | — | — | |
| POTTERTON COMMERCIAL POTTERTON COMMERCIAL SPARES | — | — | — | |
| POTTERTON COMMERCIAL SIRIUS 2 WH110 | — | — | — | |
| POTTERTON COMMERCIAL SIRIUS 2 WH50 | — | — | — |
Showing 10 of 18 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
POTTERTON COMMERCIAL appliance manual — SIRIUS 2 WH110, SIRIUS 2 WH50, SIRIUS 2 WH60, SIRIUS 2 WH70, SIRIUS 2 WH90
manualmanualPOTTERTON COMMERCIAL appliance manual — SIRIUS 3 WH110, SIRIUS 3 WH90
manualmanualPOTTERTON COMMERCIAL appliance manual — SIRIUS 3 WH50, SIRIUS 3 WH60, SIRIUS 3 WH70
manualNo technical questions yet for this part.
