Worcester Bosch

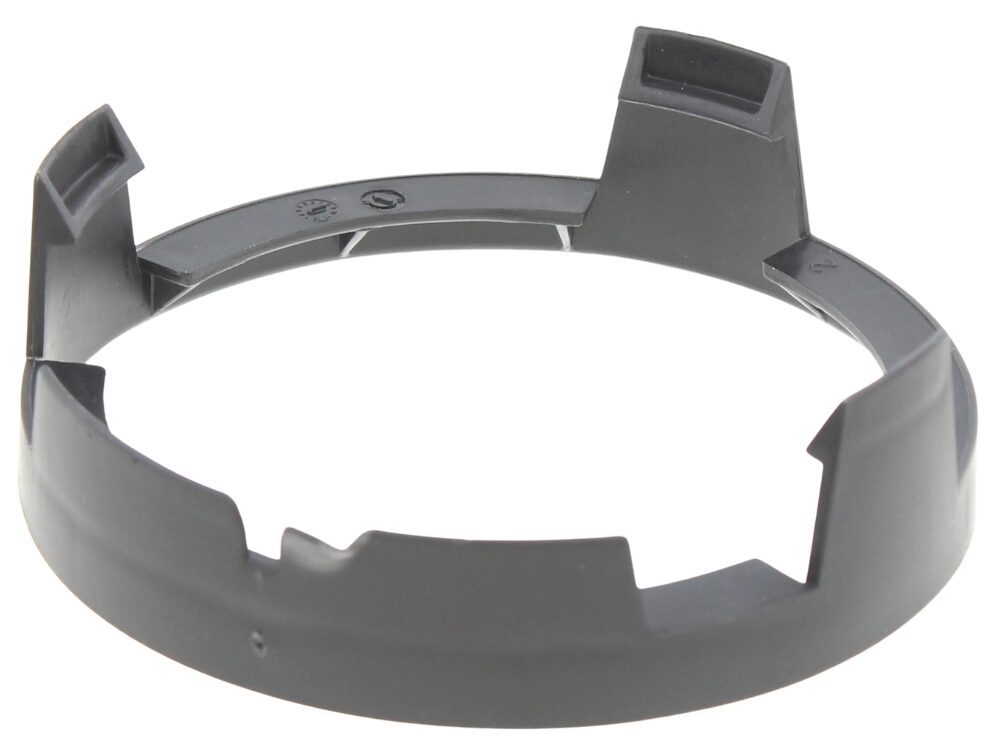

Worcester Bosch Ring Condensate Collector 7101402
Ring condensate collector, part 7101402, for Worcester Bosch and Buderus condensing boilers.
At a glance
- Also known as 2240976
£33.12
£27.60 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch ring condensate collector (part 7101402) is a condensate management component fitted to Buderus and Worcester Bosch condensing boiler ranges. It forms part of the condensate collection assembly, gathering condensate produced during combustion so it can be removed from the appliance. It is used across the Gb162 and Greenstar Condens 7000 series families listed below.
Signs this part needs replacing
- Water leaking from the condensate collection area
- Visible cracks, distortion or degradation of the ring collector
- Condensate pooling inside the boiler casing or overflowing
- Scale or corrosion build-up affecting the collector
- Boiler lockout linked to condensate drainage
Before you order
- Confirm your appliance model appears in the fit list above
- Check the existing part number 7101402 or compare the component visually
- Inspect the associated condensate trap and pipework for damage that may also need attention
Compliance
| Barcode / EAN | 4047416105604 |
|---|---|
| Alternative numbers | 2240976 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BUDERUS GB162 V2 100KW | — | — | — | |
| BUDERUS GB162 V2 50KW | 41-406-66 | 41-406-66 | — | — |
| BUDERUS GB162 V2 65KW | 41-406-67 | 41-406-67 | — | — |
| BUDERUS GB162 V2 85KW | — | — | — | |
| BUDERUS GB162-100 G20 | — | — | — | |
| BUDERUS GB162-50 G20 | — | — | — | |
| BUDERUS GB162-65 G20 | — | — | — | |
| BUDERUS GB162-80 G20 | — | — | — | |
| BUDERUS LOGAMAX PLUS GB162 65KW | — | — | — | |
| BUDERUS LOGAMAX PLUS GB162 80KW/100KW | — | — | — |
Showing 10 of 22 compatible appliances.
