Ariston

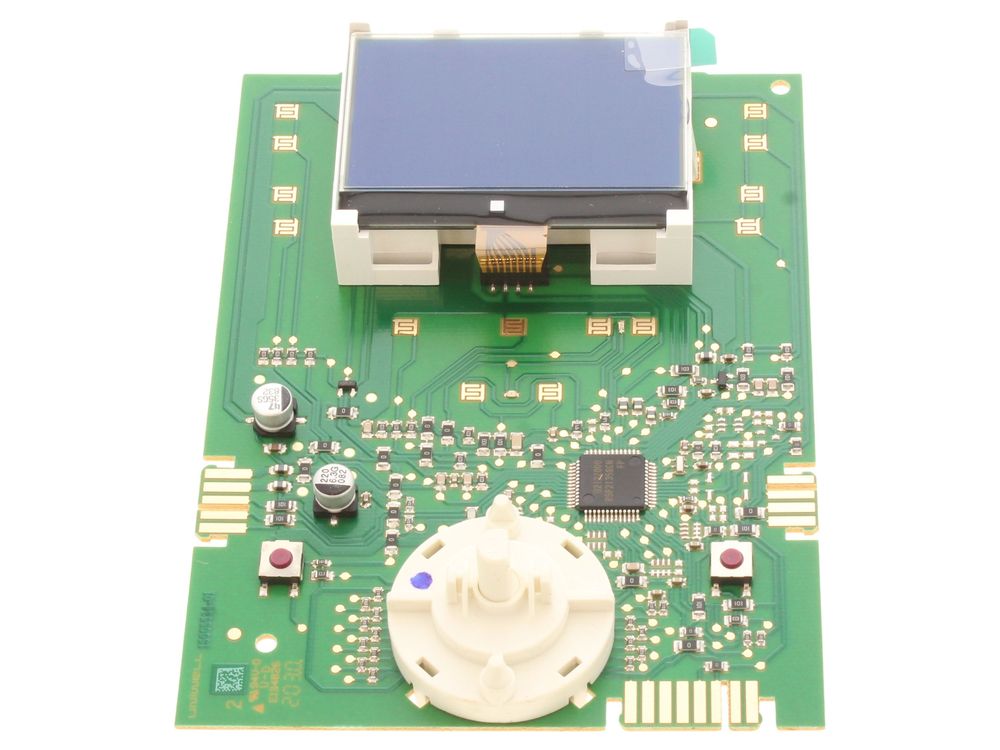

Ariston Display PCB Clas HE Evo 65111883-02
Ariston display printed circuit board, part 65111883-02, for Clas HE Evo and Clas HE System Evo boilers; fits 33 models.
At a glance
- Part type: Printed circuit board (display PCB)
- Also known as 1579972
£84.35
£70.29 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston display PCB, part 65111883-02, is the printed circuit board that carries the display and front-panel control electronics on Ariston Clas HE Evo and Clas HE System Evo boilers. It relays status information and fault codes from the main board to the user interface, and passes button inputs back to the boiler controls. Ariston lists the component under printed circuit boards for the Clas HE Evo appliance family.
Signs this part needs replacing
- The display is blank or unlit while the boiler continues to run.
- Fault codes are missing, garbled or shown incorrectly on the panel.
- Buttons are unresponsive, or need several presses before they register.
- The display flickers, dims or cuts in and out during operation.
- Repeated lockouts traced to the display board rather than the main PCB.
Before you order
- Check the GC number on the appliance data badge against the list above to confirm the boiler is covered.
- Compare the part number on the existing board; earlier builds may carry 65111883.
- Note the appliance model and serial number so the correct board revision is supplied.
- Inspect the ribbon and plug connections first, as a poor connection can mimic a failed display board.
Mechanical
| Part type | Printed circuit board |
|---|---|
| Appliance family | Clas HE Evo, Clas HE System Evo |
Compliance
| Manufacturer part number (MPN) | 65111883-02 |
|---|---|
| Barcode / EAN | 5414849538573 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 65111883, 1579972 |
| Previous numbers | 65111883 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON CLAS HE EVO 24 UK | 47-116-73 | 47-116-73 | — | — |
| ARISTON CLAS HE EVO 30 UK | 47-116-74 | 47-116-74 | — | — |
| ARISTON CLAS HE EVO 38 UK | 47-116-75 | 47-116-75 | — | — |
| ARISTON CLAS HE SYSTEM EVO 18 | — | — | — | |
| ARISTON CLAS HE SYSTEM EVO 18 UK | 41-116-41 | 41-116-41 | — | — |
| ARISTON CLAS HE SYSTEM EVO 24 | — | — | — | |
| ARISTON CLAS HE SYSTEM EVO 24 UK | 41-116-42 | 41-116-42 | — | — |
| ARISTON CLAS HE SYSTEM EVO 30 | — | — | — | |
| ARISTON CLAS HE SYSTEM EVO 30 UK | 41-116-43 | 41-116-43 | — | — |
| ARISTON CLAS PREMIUM EVO 24 | — | — | — |
Showing 10 of 33 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ARISTON appliance manual — CLAS HE EVO 24 UK (GC 47-116-73), CLAS HE EVO 30 UK (GC 47-116-74), CLAS HE EVO 38 UK (GC 47-116-75), CLAS HE SYSTEM EVO 18 UK (GC 41-116-41), CLAS HE SYSTEM EVO 24 UK (GC 41-116-42), CLAS HE SYSTEM EVO 30 UK (GC 41-116-43)
manualmanualARISTON appliance manual — E-COMBI EVO 24 FF UK (GC 47-116-68), E-COMBI EVO 30 FF UK (GC 47-116-69), E-COMBI EVO 38 FF UK (GC 47-116-70), E-SYSTEM EVO 24 UK (GC 41-116-39), E-SYSTEM EVO 30 UK (GC 41-116-40)
manualNo technical questions yet for this part.
