Ariston

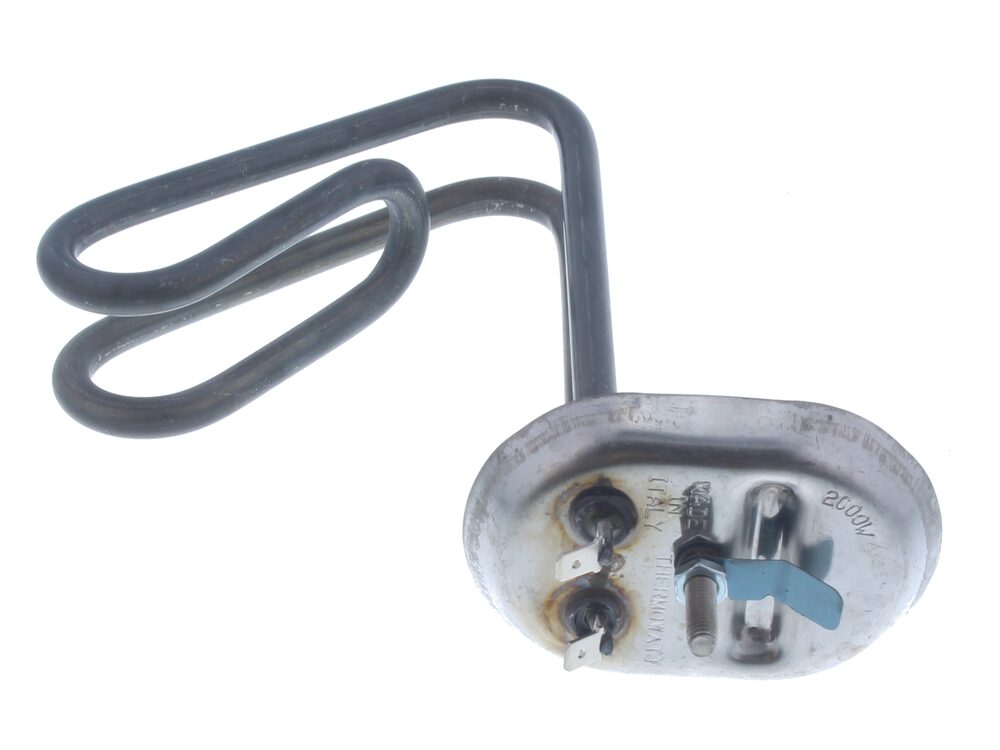

Ariston Heating Element 2kW 65104011
Ariston 2kW heating element, part 65104011, for EP 10 and EP 15 water heater models. Direct replacement for previous numbers 810759 and 810828.
At a glance
- Part type: Heating element
- Also known as 1577844
£57.20
£47.67 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 65104011 is a 2 kW heating element manufactured by Ariston for its EP-series water heaters. It sits in the cylinder and raises the stored water to temperature when the immersion circuit is energised. The part is supplied as a direct replacement for the earlier numbers 810759 and 810828.
Signs this part needs replacing
- No hot water at the outlet even though the immersion circuit is live
- The element trips the RCD or MCB as soon as the circuit is energised
- A continuity or resistance check across the element terminals reads open circuit
- Recovery times become noticeably longer, or the water only runs lukewarm
- Heavy scale or corrosion is visible on the element body once it is drawn out
Before you order
- Confirm the model and edition of the Ariston EP unit against the compatibility list, as the element is matched to the 2 kW specification
- Check the number on the existing element against the previous numbers 810759 and 810828 before ordering
- Inspect the element gasket and sealing washer while the unit is drained and renew them if they are perished or deformed
- Note the associated model numbers 877068, 877071, 868547, 868548, 868549, 868550 and 868551 when cross-referencing the appliance data plate
Mechanical
| Part type | Heating element |
|---|
Compliance
| Manufacturer part number (MPN) | 65104011 |
|---|---|
| Barcode / EAN | 5411692677381 |
| Commodity code | 8516 80 80 00 |
| GPC classification | Central Heating Replacement Parts/Accessories |
| Alternative numbers | 810759, 810828, 1577844 |
| Previous numbers | 810759, 810828 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON EP 10 U/2KW EDITION 1 (JUNE 2000) | — | — | — | |
| ARISTON EP 10 UR 2KW EDITION 9 (OCT 2009) | — | — | — | |
| ARISTON EP 15 U/2KW EDITION 1 (JUNE 2000) | — | — | — | |
| ARISTON EP 15 UR 2KW EDITION 9 (OCT 2009) | — | — | — |
