Ariston

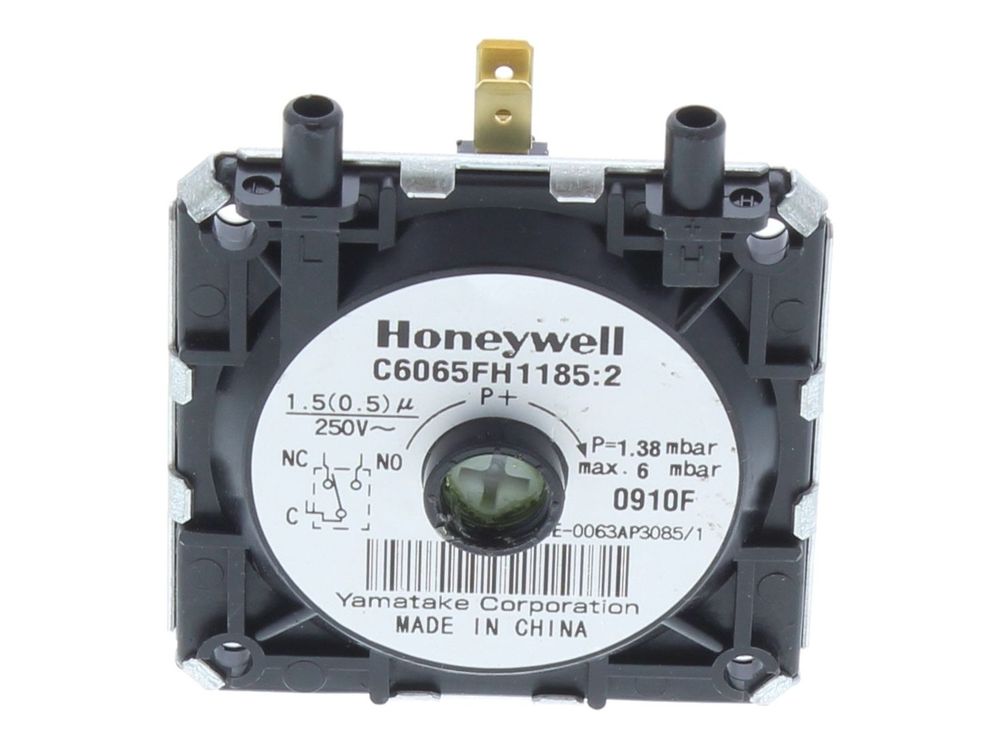

Ariston Air Pressure Switch 65102232-01
Air pressure switch rated at 150 Pa for Ariston ACO 27 and ACO 32 gas boilers.
At a glance
- Also known as 1575300
£75.26
£62.72 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 65102232-01 is an air pressure switch rated at 150 Pa, used in Ariston ACO series gas boilers. It monitors the pressure produced by the combustion fan and confirms sufficient air flow before the boiler is allowed to ignite. The switch forms part of the boiler's safety interlock chain.
Signs this part needs replacing
- Boiler fails to ignite and goes to lockout even though the fan runs.
- Repeated lockouts on start-up or during a demand for heat.
- Fan runs but the boiler does not proceed to ignition.
- Intermittent firing, with the boiler lighting only occasionally.
- Lockout or fault indication pointing to an air pressure or fan proving fault.
Before you order
- Confirm your boiler model and GC number against the list above.
- Check the pressure rating marked on the existing switch matches 150 Pa.
- Verify the part number on the old component is 65102232-01.
- Isolate the electrical supply and gas before removing the existing switch.
Compliance
| Barcode / EAN | 3234090790528 |
|---|---|
| Alternative numbers | 1575300 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON ACO 27 MFFI GPL | 47-116-34 | 47-116-34 | — | — |
| ARISTON ACO 27 MFFI MET | 47-116-34 | 47-116-34 | — | — |
| ARISTON ACO 27 RFFI SYSTEM GPL | 41-116-09 | 41-116-09 | — | — |
| ARISTON ACO 27 RFFI SYSTEM MET | 41-116-09 | 41-116-09 | — | — |
| ARISTON ACO 32 MFFI GPL | 47-116-35 | 47-116-35 | — | — |
| ARISTON ACO 32 MFFI MET | 47-116-35 | 47-116-35 | — | — |
| ARISTON ACO 32 RFFI SYSTEM GPL | 41-116-10 | 41-116-10 | — | — |
| ARISTON ACO 32 RFFI SYSTEM MET | 41-116-10 | 41-116-10 | — | — |
| ARISTON ARISTON ACO 27 MFFI | — | — | — | |
| ARISTON ARISTON ACO 27 RFFI SYSTEM | — | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
