Ariston

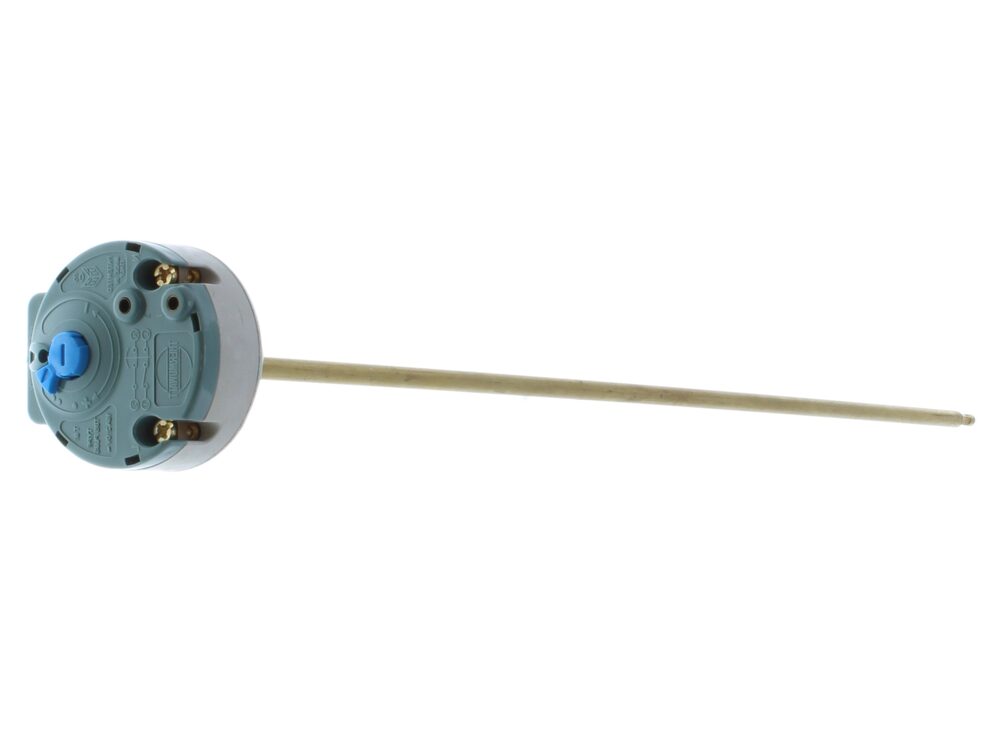

Ariston Thermostat TBS Plus 450 16A 65101396
Ariston TBS Plus 450 16A thermostat (65101396) for Protech ST 50, ST 80 and ST 100 wall hung models.
At a glance
- Part type: Thermostat
- Also known as 1574832
£54.96
£45.80 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston TBS Plus 450 16A is a replacement thermostat supplied by Ariston for its Protech range of wall hung unvented cylinders. It sits in the control circuit and switches the heating element on and off to hold the stored water at the set temperature. The 16A rating matches the load of the immersion heater it controls, and the TBS Plus 450 body is the format used across the ST 50, ST 80 and ST 100 Protech models.
Signs this part needs replacing
- Stored water stays cold even though the immersion heater and its supply are sound.
- The cylinder overheats or the water runs far hotter than the dial setting.
- Temperature swings between hot and cold with no change to the setting.
- The thermostat dial turns without any click or resistance at the switching point.
- The overheat cut-out trips repeatedly and has to be reset.
Before you order
- Confirm the appliance model and serial number against the compatibility list, as the Protech fitment is listed from serial No 040000001893166 onwards for the ST 50, ST 80 and ST 100.
- Check the thermostat designation on the existing unit reads TBS Plus 450 16A before ordering.
- Note the alternative part number 1574832 in case your records or supplier listing use it.
- Inspect the sealing washer and any retaining fixings on removal and replace them if they are perished or damaged.
Mechanical
| Part type | Thermostat |
|---|
Compliance
| Manufacturer part number (MPN) | 65101396 |
|---|---|
| Barcode / EAN | 5411692517267 |
| Commodity code | 9032 10 00 00 |
| GPC classification | Thermostats |
| Alternative numbers | 1574832 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON ARISTON WALL HUNG 1 ST 100 PROTECH - FROM SERIAL No 040000001893168 | — | — | — | |
| ARISTON ARISTON WALL HUNG 1 ST 50 PROTECH - FROM SERIAL No 040000001893166 | — | — | — | |
| ARISTON ARISTON WALL HUNG 1 ST 80 PROTECH - FROM SERIAL No 040000001893167 | — | — | — | |
| ARISTON ST 100 PROTECH EDITION 3 (JAN 2011) | — | — | — | |
| ARISTON ST 50 PROTECH EDITION 3 (JAN 2011) | — | — | — | |
| ARISTON ST 80 PROTECH EDITION 3 (JAN 2011) | — | — | — | |
| ARISTON ST100 Protech | — | — | — | |
| ARISTON ST100 EU Protech | — | — | — | |
| ARISTON ST50 Protech | — | — | — | |
| ARISTON ST75 Protech | — | — | — |
Showing 10 of 11 compatible appliances.
