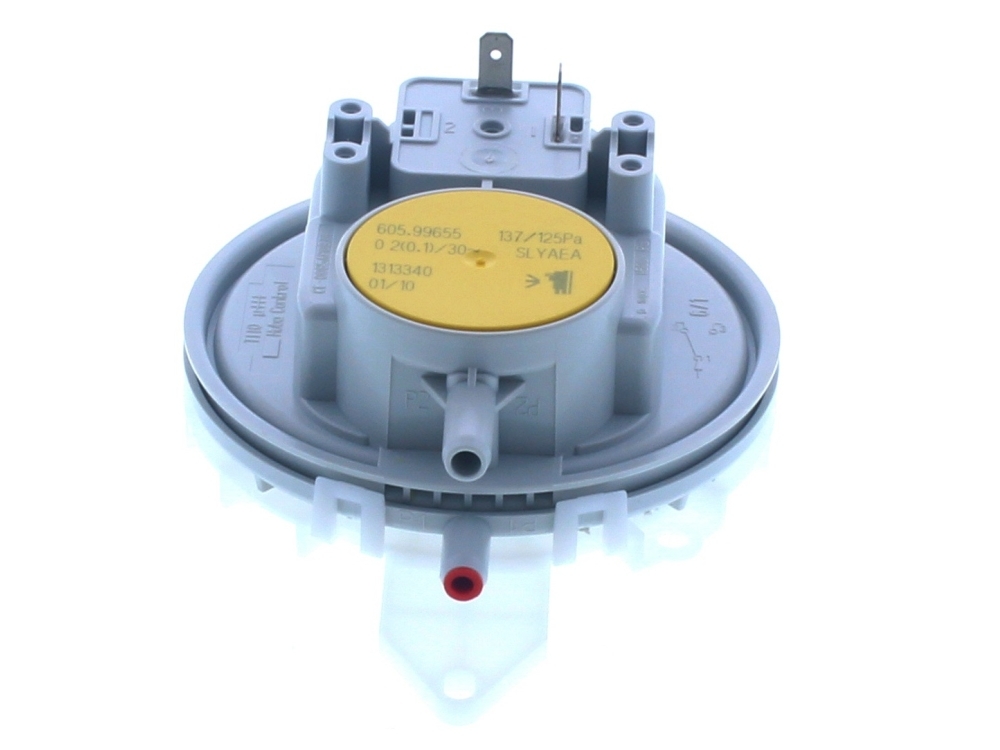

Chaffoteaux Air Pressure Switch 61313340-01
Air pressure switch for Chaffoteaux Minima Mx2 and Minima SE System 24 FF boilers, rated 116 to 138 Pa.
At a glance
- Also known as AIR-PRESSURE-SWITCH-125-PA, 1610316
£82.79
£68.99 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Chaffoteaux 61313340-01 is an air pressure switch used on Minima Mx2 and Minima SE System 24 FF gas boilers. It monitors the pressure produced by the combustion fan and proves that air is moving through the appliance before the gas valve is allowed to open. The switch operates within a pressure range of 116 to 138 Pa.
Signs this part needs replacing
- Boiler locks out on a call for heat, with the fan running but no ignition
- Repeated lockouts that clear after a reset and then return
- Boiler fails to fire intermittently, often in windy conditions or with a blocked flue
- Fan runs continuously or the appliance will not complete its pre-purge sequence
- Fault code or lockout pattern pointing to the air pressure switch or fan proving circuit
Before you order
- Confirm your appliance model against the fit list above, including whether it is the LPG or natural gas variant
- Check the part number on the existing switch matches 61313340-01
- Confirm the pressure rating of the fitted switch matches the 116 to 138 Pa range
- Check the fan, flue and sensing tubes for blockage or damage before assuming the switch has failed
Compliance
| Barcode / EAN | 3234090796957 |
|---|---|
| Alternative numbers | AIR-PRESSURE-SWITCH-125-PA, 1610316 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX MINIMA MX2 24 FF LPG | — | — | — | |
| CHAFFOTEAUX MINIMA MX2 24 FF LPG CLOCK | — | — | — | |
| CHAFFOTEAUX MINIMA MX2 24 FF NAT GAS | — | — | — | |
| CHAFFOTEAUX MINIMA SE SYSTEM 24 FF | — | — | — |
