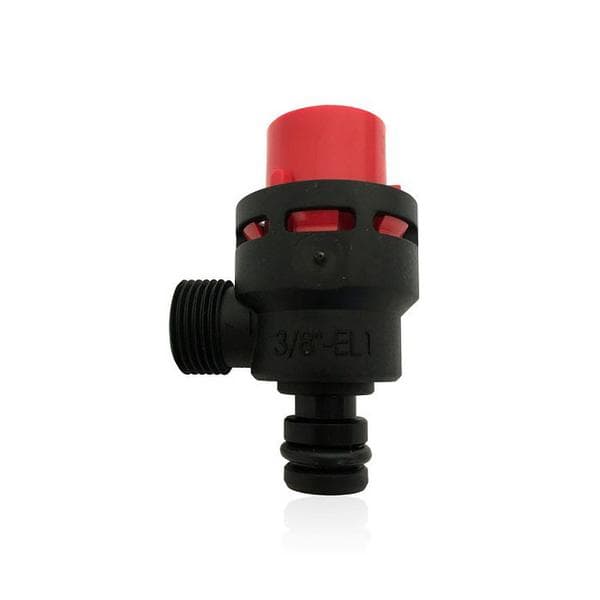

Ariston 61312668 Pressure Relief Valve
At a glance
- Part type: Pressure relief valve
- Also known as ARISTON61312668
Showing prices
£34.80
£29.00 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 61312668 is a 3 bar pressure relief valve used on Ariston and Chaffoteaux domestic gas boilers. It sits on the sealed heating circuit and opens when system pressure reaches its 3 bar set point, discharging water through the boiler's relief pipework to protect the heat exchanger and other components from over-pressurisation. It is a direct replacement item for the valve fitted across the Clas, E-Combi, E-System, Genus and Clas One families.
Signs this part needs replacing
- The system pressure gauge climbs past 3 bar and keeps rising during heating cycles.
- Water is discharging continuously from the boiler relief pipe, or the pipe is wet when the system is cold.
- The valve weeps or drips at the outlet with the system at normal cold fill pressure.
- System pressure drops repeatedly after topping up, with no visible leak elsewhere on the circuit.
- The valve body shows scale, corrosion or a hardened seat after long service.
Before you order
- Confirm the boiler model and, where shown on the data badge, the GC number against the compatibility list before ordering.
- Check the sealing washer or gasket at the valve connection and replace it if it is compressed or perished.
- Isolate the appliance, drain the relevant section of the heating circuit and depressurise before removing the old valve.
Mechanical
| Part type | Pressure relief valve |
|---|
Compliance
| Manufacturer part number (MPN) | 61312668 |
|---|---|
| Commodity code | 8481 40 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 3234090377026, ARISTON61312668, 265075904412, 1592963, N9159 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON ALTEAS ONE NET 24 | — | — | — | |
| ARISTON ALTEAS ONE NET 30 | 33-014-49 | 33-014-49 | — | — |
| ARISTON ALTEAS ONE NET 35 | 33-014-50 | 33-014-50 | — | — |
| ARISTON ARISTON CLAS 21 FF SYSTEM | — | — | — | |
| ARISTON ARISTON CLAS 24 FF | — | — | — | |
| ARISTON ARISTON CLAS 28 FF | — | — | — | |
| ARISTON ARISTON CLAS 28 FF SYSTEM | — | — | — | |
| ARISTON ARISTON CLAS 32 FF SYSTEM | — | — | — | |
| ARISTON ARISTON CLAS HE 18 FF SYSTEM | — | — | — | |
| ARISTON ARISTON CLAS HE 24 FF | — | — | — |
Showing 10 of 129 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
ARISTON appliance manual — CLAS 21 FF SYSTEM NG (IE) EDITION 3 (MAR 2008) (GC 41-116-27), CLAS 24 FF NG (IE) EDITION 3 (MAR 2008) (GC 47-116-59), CLAS 28 FF NG (IE) EDITION 3 (MAR 2008) (GC 47-116-61), CLAS 28 FF SYSTEM NG (IE) EDITION 3 (MAR 2008) (GC 41-116-28), CLAS HE 24 FF NG UK (MAY 2007) (GC 47-116-51), CLAS HE 30 FF NG UK (MAY 2007) (GC 47-116-52), CLAS HE 38 FF NG UK (MAY 2007) (GC 47-116-53)
manualmanualARISTON appliance manual — CLAS HE 18 FF SYSTEM NG UK (MAY 2007) (GC 41-116-26), CLAS HE 24 FF SYSTEM NG UK (MAY 2007) (GC 41-116-22), CLAS HE 30 FF SYSTEM NG UK (MAY 2007) (GC 41-116-23)
manualmanualARISTON appliance manual — CLAS HE EVO 24 UK (GC 47-116-73), CLAS HE EVO 30 UK (GC 47-116-74), CLAS HE EVO 38 UK (GC 47-116-75), CLAS HE SYSTEM EVO 18 UK (GC 41-116-41), CLAS HE SYSTEM EVO 24 UK (GC 41-116-42), CLAS HE SYSTEM EVO 30 UK (GC 41-116-43)
manualmanualARISTON appliance manual — CLAS NET ONE 24 UK (GC 47-116-88), CLAS NET ONE 30 UK (GC 47-116-89), CLAS NET ONE 38 UK (GC 47-116-90), CLAS ONE 24 UK (GC 47-116-85), CLAS ONE 30 UK (GC 47-116-86), CLAS ONE 38 UK (GC 47-116-87), CLAS SYSTEM ONE 18 UK (GC 41-116-49), CLAS SYSTEM ONE 24 UK (GC 41-116-50), CLAS SYSTEM ONE 30 UK (GC 41-116-51)
manualmanualARISTON appliance manual — COMBI A 24 MFFI NG FROM APRIL 2006 (GC 47-116-44), COMBI A 24 MFFI NG UPTO MARCH 2006 (GC 47-116-44), COMBI A 30 MFFI NG FROM APRIL 2006 (GC 47-116-45), COMBI A 30 MFFI NG UPTO MARCH 2006 (GC 47-116-45)
manualmanualARISTON appliance manual — E-COMBI 24 FF NG (UK) (GC 47-116-62), E-COMBI 30 FF NG (UK) (GC 47-116-63), E-COMBI 38 FF NG (UK) (GC 47-116-64), E-SYSTEM 24 NG (UK) (GC 41-116-34), E-SYSTEM 30 NG (UK) (GC 41-116-35)
manualmanualARISTON appliance manual — E-COMBI EVO 24 FF UK (GC 47-116-68), E-COMBI EVO 30 FF UK (GC 47-116-69), E-COMBI EVO 38 FF UK (GC 47-116-70), E-SYSTEM EVO 24 UK (GC 41-116-39), E-SYSTEM EVO 30 UK (GC 41-116-40)
manualmanualARISTON appliance manual — E-COMBI ONE 24 (GC 47-116-83), E-COMBI ONE 30 (GC 47-116-84), E-SYSTEM ONE 24 (GC 41-116-47), E-SYSTEM ONE 30 (GC 41-116-48)
manualmanualARISTON appliance manual — GENUS HE 24 FF NG UK (APRIL 2007) (GC 47-116-54), GENUS HE 30 FF NG UK (MAY 2007) (GC 47-116-55), GENUS HE 38 FF NG UK (MAY 2007) (GC 47-116-56)
manualmanualARISTON appliance manual — GENUS HE 24 FF SYSTEM NG UK (MAY 2007) (GC 41-116-24), GENUS HE 30 FF SYSTEM NG UK (MAY 2007) (GC 41-116-25)
manualNo technical questions yet for this part.
