Chaffoteaux

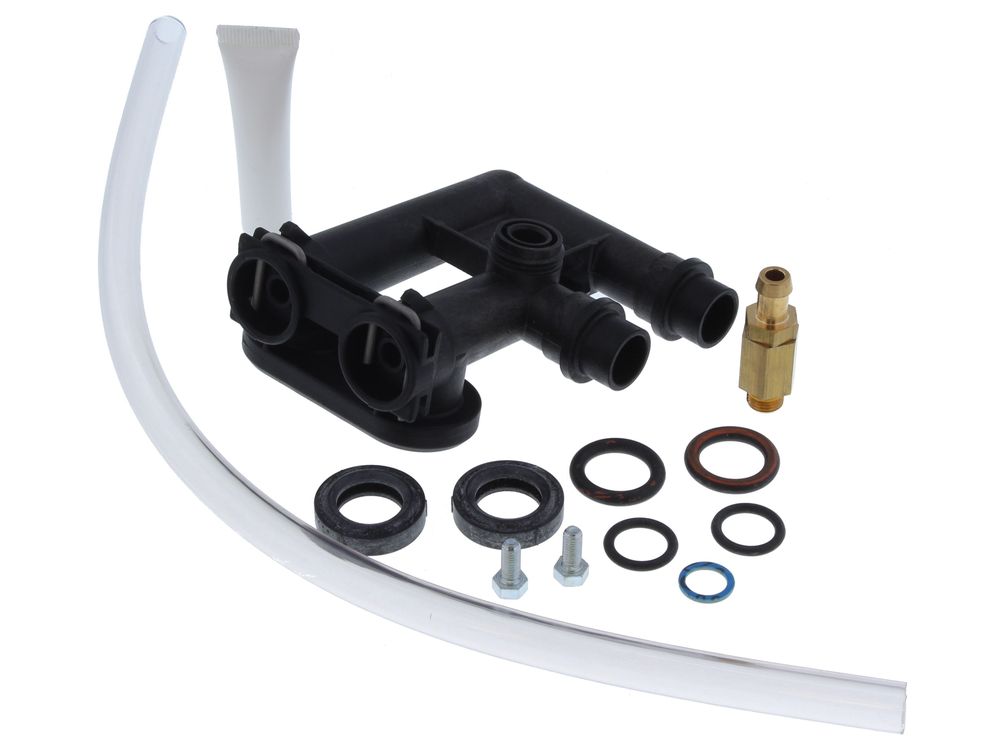

Chaffoteaux Top Interface System 61014228
Top interface system for Chaffoteaux Calydra and Calydra Comfort gas boilers.
At a glance
- Also known as TOP-INTERFACE-SYSTEM, 1610061
£58.63
£48.86 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The top interface system is a Chaffoteaux boiler component used on the Calydra and Calydra Comfort appliance families. It forms part of the boiler's upper control and connection assembly, linking the appliance's internal controls at the top of the casing. It is supplied under Chaffoteaux part number 61014228.
Signs this part needs replacing
- Faults or intermittent operation traced to the boiler's top control connections
- Visible damage, scorching or corrosion on the interface assembly
- Loose, brittle or degraded connections at the top of the appliance
- Boiler failing to respond correctly to control inputs after the interface has been disturbed
- Error or lockout conditions that persist after other top-mounted components have been checked
Before you order
- Confirm the boiler model and variant against the fitment list, including any date range shown
- Check the existing part number on the component before removal where it is legible
- Verify the superseded code 101422800 does not already appear on the fitted part
- Isolate the appliance and follow the manufacturer's instructions before dismantling
Compliance
| GC number | E23-512 |
|---|---|
| Barcode / EAN | 3234090116199 |
| Alternative numbers | TOP-INTERFACE-SYSTEM, 1610061 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX CALYDRA 100 LPG | — | — | — | |
| CHAFFOTEAUX CALYDRA 100 NAT GAS - FROM APR 1998 | — | — | — | |
| CHAFFOTEAUX CALYDRA 100 NAT GAS - FROM JAN 1999 | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 LPG | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 NAT GAS - FROM APR 1998 TO DEC 2001 | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 NAT GAS FROM MAY 2000 TO JUNE 2000 | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 V2 LPG | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 V2 NAT GAS - JAN 2002 | — | — | — | |
| CHAFFOTEAUX CALYDRA COMFORT 100 NAT GAS - APR 2005 | 47-980-23 | 47-980-23 | — | — |
| CHAFFOTEAUX CALYDRA COMFORT 80 NAT GAS - APR 2005 | 47-980-22 | 47-980-22 | — | — |
Showing 10 of 16 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
CHAFFOTEAUX appliance manual — CALYDRA 100 LPG, CALYDRA 100 NAT GAS - FROM APR 1998, CALYDRA 100 NAT GAS - FROM JAN 1999, CALYDRA 80 LPG, CALYDRA 80 NAT GAS - FROM APR 1998 TO DEC 2001, CALYDRA 80 NAT GAS FROM MAY 2000 TO JUNE 2000
manualmanualCHAFFOTEAUX appliance manual — CALYDRA COMFORT 100 NAT GAS - APR 2005 (GC 47-980-23), CALYDRA COMFORT 80 NAT GAS - APR 2005 (GC 47-980-22)
manualmanualCHAFFOTEAUX appliance manual — CALYDRA GREEN 24KW G20 (GC 47-980-25), CALYDRA GREEN 24KW G31 (GC 47-980-25), CALYDRA GREEN 30KW G20 (GC 47-980-26), CALYDRA GREEN 30KW G31 (GC 47-980-26)
manualNo technical questions yet for this part.
