Chaffoteaux

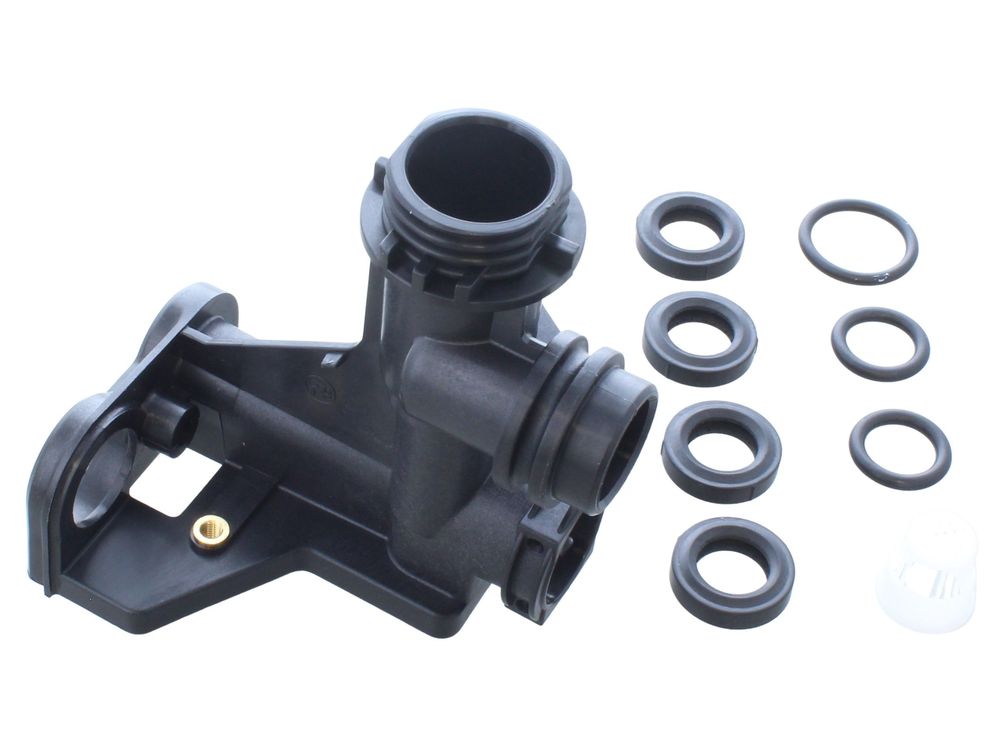

Chaffoteaux Bottom Interface System 61014172
Chaffoteaux bottom interface system, part number 61014172, for Calydra and Calydra Green gas boilers.
At a glance
- Appliance family: Calydra and Calydra Green gas boilers
- Also known as BOTTOM-INTERFACE, 1610050
£70.94
£59.12 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Chaffoteaux bottom interface system is the lower connection assembly fitted to Calydra and Calydra Green gas boilers. It forms the interface between the boiler's internal water and gas connections and the external pipework at the base of the appliance. It is supplied under Chaffoteaux part number 61014172.
Signs this part needs replacing
- Weeping or visible water leaks from the connection block at the bottom of the boiler
- Corrosion, scale or debris build-up on the interface assembly
- Water or gas connections that will not seal correctly at the boiler base
- Boiler failing to fire or operating intermittently where the interface assembly is at fault
- Physical damage to the pipework connections or mounting points
Before you order
- Confirm your boiler model and date of manufacture against the fit list above
- Check the part number on the existing component matches 61014172
- Confirm the gas type of your appliance (natural gas or LPG) matches the variant listed
- If your model is not listed, check it against the manufacturer's parts list before ordering
Compliance
| GC number | E23-522 |
|---|---|
| Barcode / EAN | 3234090115994 |
| Alternative numbers | BOTTOM-INTERFACE, 1610050 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX CALYDRA 100 LPG | — | — | — | |
| CHAFFOTEAUX CALYDRA 100 NAT GAS - FROM APR 1998 | — | — | — | |
| CHAFFOTEAUX CALYDRA 100 NAT GAS - FROM JAN 1999 | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 LPG | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 NAT GAS - FROM APR 1998 TO DEC 2001 | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 NAT GAS FROM MAY 2000 TO JUNE 2000 | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 V2 LPG | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 V2 NAT GAS - JAN 2002 | — | — | — | |
| CHAFFOTEAUX CALYDRA COMFORT 100 NAT GAS - APR 2005 | 47-980-23 | 47-980-23 | — | — |
| CHAFFOTEAUX CALYDRA COMFORT 80 NAT GAS - APR 2005 | 47-980-22 | 47-980-22 | — | — |
Showing 10 of 14 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
CHAFFOTEAUX appliance manual — CALYDRA 100 LPG, CALYDRA 100 NAT GAS - FROM APR 1998, CALYDRA 100 NAT GAS - FROM JAN 1999, CALYDRA 80 LPG, CALYDRA 80 NAT GAS - FROM APR 1998 TO DEC 2001, CALYDRA 80 NAT GAS FROM MAY 2000 TO JUNE 2000
manualmanualCHAFFOTEAUX appliance manual — CALYDRA COMFORT 100 NAT GAS - APR 2005 (GC 47-980-23), CALYDRA COMFORT 80 NAT GAS - APR 2005 (GC 47-980-22)
manualmanualCHAFFOTEAUX appliance manual — CALYDRA GREEN 24KW G20 (GC 47-980-25), CALYDRA GREEN 24KW G31 (GC 47-980-25), CALYDRA GREEN 30KW G20 (GC 47-980-26), CALYDRA GREEN 30KW G31 (GC 47-980-26)
manualNo technical questions yet for this part.
