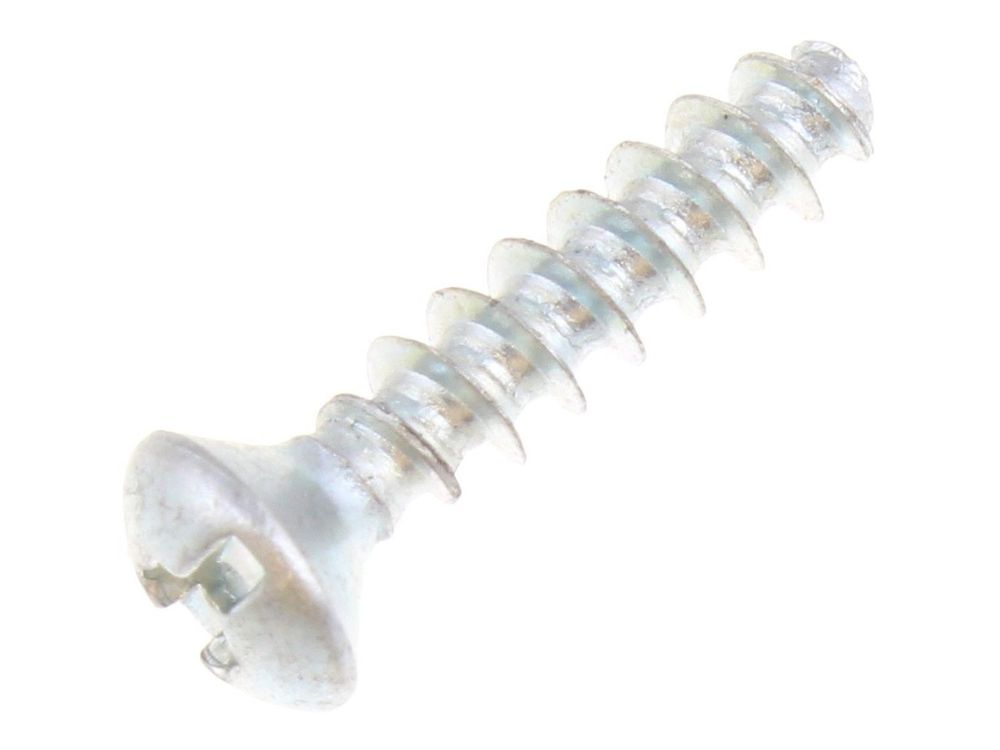

Chaffoteaux Screw FX90 3.5mm x 16mm 61010133
Chaffoteaux FX90 screw, 3.5 mm diameter by 16 mm long, for use across Britony, Calydra, Nexia and Genesis boiler models.
At a glance
- Also known as 1610691
£2.08
£1.73 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Chaffoteaux FX90 screw is a 3.5 mm diameter, 16 mm long fixing used in the assembly of Chaffoteaux gas boilers. It is listed under screws, nuts, bolts and clips for the Britony, Calydra, Nexia and Genesis appliance families. It serves as a securing fastener for internal components during service and repair work.
Signs this part needs replacing
- The screw head is rounded, chewed or otherwise damaged so a driver no longer grips it
- The thread is stripped and the screw will not tighten to hold the component
- Corrosion or rust is visible on the screw body or head
- The screw is missing after a previous strip-down or service
- The screw has snapped, leaving part of the shank in the fixing point
Before you order
- Confirm the part number 61010133 matches the item listed for your appliance
- Check the required screw size against the fixing point on your boiler, as 3.5 mm x 16 mm is specific
- Verify your boiler model against the fit list above, as the list covers 34 appliances in total
- Check whether any other fixings removed during the same job also need replacing
Compliance
| GC number | 277-871 |
|---|---|
| Barcode / EAN | 3234090289374 |
| Alternative numbers | 1610691 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX BAXI GENESIS 80 NAT GAS | 47-077-01 | 47-077-01 | — | — |
| CHAFFOTEAUX BAXI GENESIS 96 NAT GAS | 47-077-02 | 47-077-02 | — | — |
| CHAFFOTEAUX BRITONY COMBI 100 LPG - FROM JAN 97 TO JAN 01 | 47-980-13 | 47-980-13 | — | — |
| CHAFFOTEAUX BRITONY COMBI 100 NAT GAS - FROM AUG 96 TO APR 01 | 47-980-13 | 47-980-13 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 LPG - FROM APR 99 TO MAR 01 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 LPG - FROM JAN 97 TO MAR 00 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 NAT GAS - FROM JUL 96 TO APR 01 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 NAT GAS - JAN 01 TO FEB 02 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY SYSTEM + 100 NAT GAS | — | — | — | |
| CHAFFOTEAUX BRITONY SYSTEM + 40 NAT GAS - FROM JUN 97 | 41-980-04 | 41-980-04 | — | — |
Showing 10 of 34 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
CHAFFOTEAUX appliance manual — BRITONY COMBI 100 LPG - FROM JAN 97 TO JAN 01 (GC 47-980-13), BRITONY COMBI 100 NAT GAS - FROM AUG 96 TO APR 01 (GC 47-980-13), BRITONY COMBI 80 LPG - FROM APR 99 TO MAR 01 (GC 47-980-12), BRITONY COMBI 80 LPG - FROM JAN 97 TO MAR 00 (GC 47-980-12), BRITONY COMBI 80 NAT GAS - FROM JUL 96 TO APR 01 (GC 47-980-12), BRITONY COMBI 80 NAT GAS - JAN 01 TO FEB 02 (GC 47-980-12)
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM + 40 NAT GAS - FROM JUN 97 (GC 41-980-04), BRITONY SYSTEM + 60 NAT GAS - FROM JUN 97
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM 40 NAT GAS - FROM JUN 97 (GC 41-980-02), BRITONY SYSTEM 60 NAT GAS - FROM JUN 97 (GC 41-980-06)
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM II + 100 NAT GAS (GC 41-980-25), BRITONY SYSTEM II + 80 NAT GAS (GC 41-980-16)
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM II 100 NAT GAS (GC 41-980-17), BRITONY SYSTEM II 80 NAT GAS (GC 41-980-15)
manualmanualCHAFFOTEAUX appliance manual — CALYDRA 100 LPG, CALYDRA 100 NAT GAS - FROM APR 1998, CALYDRA 100 NAT GAS - FROM JAN 1999, CALYDRA 80 LPG, CALYDRA 80 NAT GAS - FROM APR 1998 TO DEC 2001, CALYDRA 80 NAT GAS FROM MAY 2000 TO JUNE 2000
manualNo technical questions yet for this part.
