Chaffoteaux

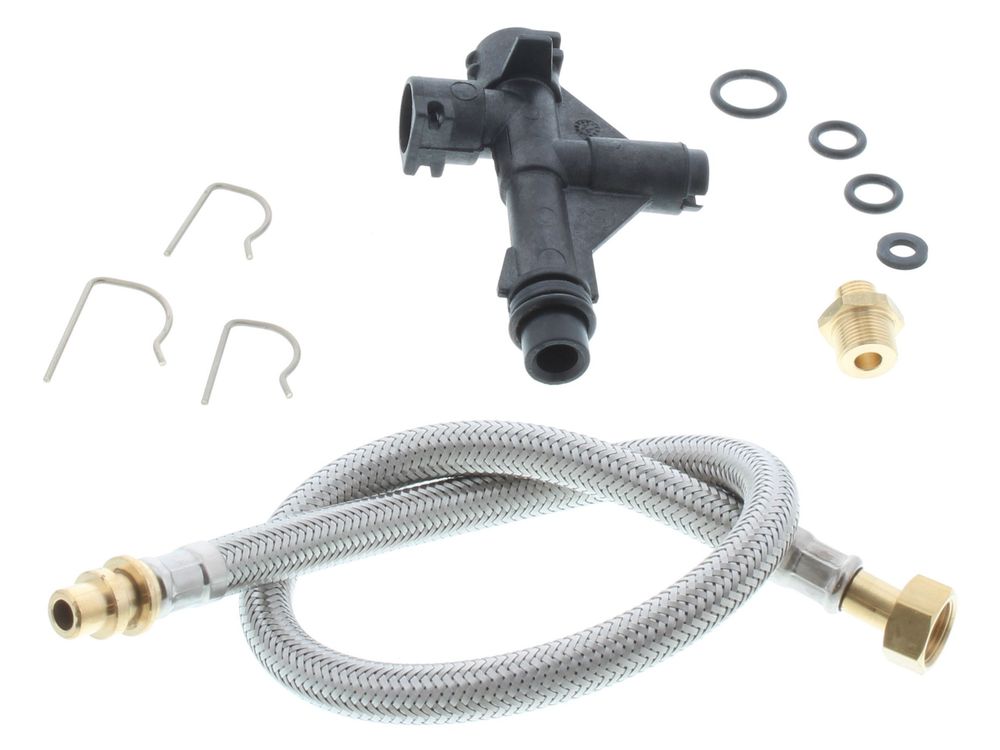

Chaffoteaux By-Pass Body 61010110
Chaffoteaux by-pass body, part 61010110, for Britony and BAXI Genesis gas boiler installations.
At a glance
- Also known as 1610043, N4963
£54.07
£45.06 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The by-pass body is a Chaffoteaux hydraulic component fitted within the boiler's water circuit. It maintains a minimum flow through the heat exchanger when system demand falls, protecting the appliance from overheating and excessive temperature differentials. This part is listed for Britony and BAXI Genesis gas boiler families.
Signs this part needs replacing
- Boiler cycling or short-cycling on heating demand
- Overheat lockout or high-limit trips during low-flow conditions
- Poor temperature control across radiators or hot water draw-off
- Visible scale, debris or seizure within the by-pass assembly
- Water weeping from the by-pass body or its seals
Before you order
- Confirm the appliance model and, where applicable, the production date range against the fit list
- Check the existing by-pass body part number before removal
- Inspect associated seals and O-rings for reuse or replacement
- Isolate and drain the boiler before fitting
Compliance
| GC number | 277-847 |
|---|---|
| Barcode / EAN | 3234090109207 |
| Alternative numbers | 1610043, N4963 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX BAXI GENESIS 80 NAT GAS | 47-077-01 | 47-077-01 | — | — |
| CHAFFOTEAUX BAXI GENESIS 96 NAT GAS | 47-077-02 | 47-077-02 | — | — |
| CHAFFOTEAUX BRITONY COMBI 100 LPG - FROM JAN 97 TO JAN 01 | 47-980-13 | 47-980-13 | — | — |
| CHAFFOTEAUX BRITONY COMBI 100 NAT GAS - FROM AUG 96 TO APR 01 | 47-980-13 | 47-980-13 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 LPG - FROM APR 99 TO MAR 01 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 LPG - FROM JAN 97 TO MAR 00 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 NAT GAS - FROM JUL 96 TO APR 01 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 NAT GAS - JAN 01 TO FEB 02 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY SYSTEM + 100 NAT GAS | — | — | — | |
| CHAFFOTEAUX BRITONY SYSTEM + 40 NAT GAS - FROM JUN 97 | 41-980-04 | 41-980-04 | — | — |
Showing 10 of 13 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
CHAFFOTEAUX appliance manual — BRITONY COMBI 100 LPG - FROM JAN 97 TO JAN 01 (GC 47-980-13), BRITONY COMBI 100 NAT GAS - FROM AUG 96 TO APR 01 (GC 47-980-13), BRITONY COMBI 80 LPG - FROM APR 99 TO MAR 01 (GC 47-980-12), BRITONY COMBI 80 LPG - FROM JAN 97 TO MAR 00 (GC 47-980-12), BRITONY COMBI 80 NAT GAS - FROM JUL 96 TO APR 01 (GC 47-980-12), BRITONY COMBI 80 NAT GAS - JAN 01 TO FEB 02 (GC 47-980-12)
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM + 40 NAT GAS - FROM JUN 97 (GC 41-980-04), BRITONY SYSTEM + 60 NAT GAS - FROM JUN 97
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM 40 NAT GAS - FROM JUN 97 (GC 41-980-02), BRITONY SYSTEM 60 NAT GAS - FROM JUN 97 (GC 41-980-06)
manualNo technical questions yet for this part.
