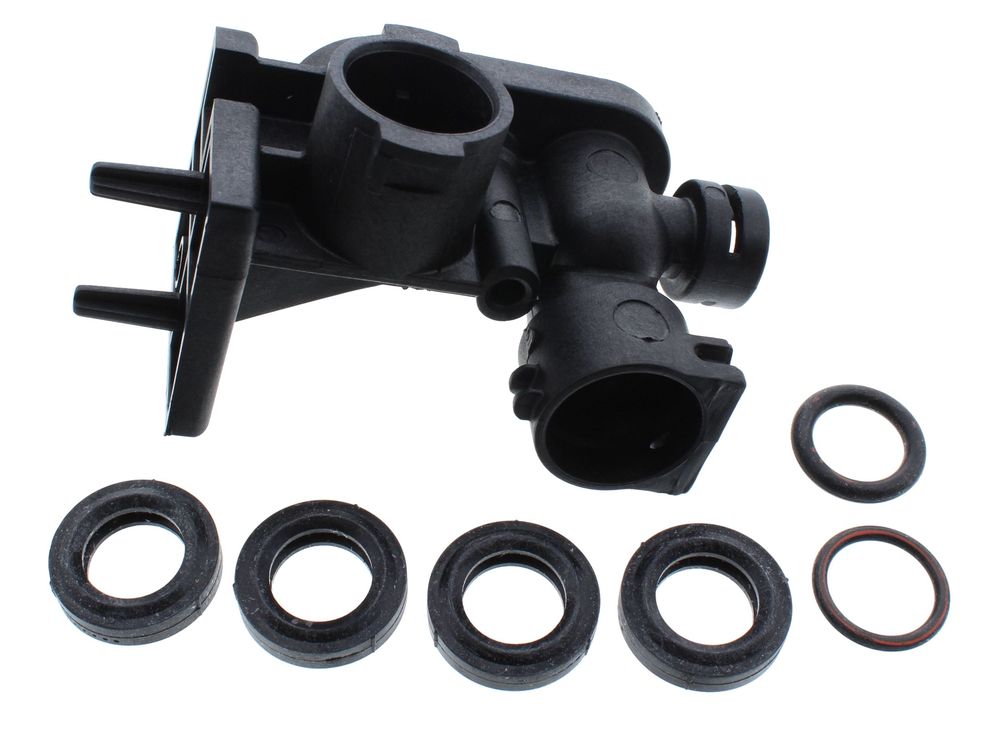

Chaffoteaux Left Hand Hydraulic Block 61010003
Left-hand hydraulic block for Chaffoteaux gas boilers, part number 61010003.
At a glance
- Also known as 1610041
Showing prices
£19.14
£15.95 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Chaffoteaux 61010003 is a left-hand hydraulic block for Chaffoteaux gas boilers. It is listed for Britony Combi applications and is associated with the diverter valve section of the boiler. The part forms part of the hydraulic circuit and is identified by the manufacturer part number 61010003.
Signs this part needs replacing
- Domestic hot water runs cold or fluctuates while the boiler is otherwise firing.
- Heating water passes into the hot water circuit, or hot water is not isolated when heating is demanded.
- Water leaks from the hydraulic block or diverter valve area.
- The boiler loses system pressure without an obvious external leak.
- The diverter valve does not move between heating and hot water modes.
Before you order
- Confirm the boiler model and GC number against the fitment list.
- Check the existing part is the left-hand hydraulic block and matches part number 61010003.
- Check whether the existing part carries the superseded code 101000300.
- Confirm the appliance is a Chaffoteaux gas boiler covered by the listed models.
Compliance
| GC number | 277-839 |
|---|---|
| Barcode / EAN | 3234090281712 |
| Alternative numbers | 1610041 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX BAXI GENESIS 80 NAT GAS | 47-077-01 | 47-077-01 | — | — |
| CHAFFOTEAUX BAXI GENESIS 96 NAT GAS | 47-077-02 | 47-077-02 | — | — |
| CHAFFOTEAUX BRITONY COMBI 100 LPG - FROM JAN 97 TO JAN 01 | 47-980-13 | 47-980-13 | — | — |
| CHAFFOTEAUX BRITONY COMBI 100 NAT GAS - FROM AUG 96 TO APR 01 | 47-980-13 | 47-980-13 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 LPG - FROM APR 99 TO MAR 01 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 LPG - FROM JAN 97 TO MAR 00 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 NAT GAS - FROM JUL 96 TO APR 01 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 NAT GAS - JAN 01 TO FEB 02 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY SYSTEM + 100 NAT GAS | — | — | — | |
| CHAFFOTEAUX BRITONY SYSTEM + 40 NAT GAS - FROM JUN 97 | 41-980-04 | 41-980-04 | — | — |
Showing 10 of 50 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
CHAFFOTEAUX appliance manual — BRITONY COMBI 100 LPG - FROM JAN 97 TO JAN 01 (GC 47-980-13), BRITONY COMBI 100 NAT GAS - FROM AUG 96 TO APR 01 (GC 47-980-13), BRITONY COMBI 80 LPG - FROM APR 99 TO MAR 01 (GC 47-980-12), BRITONY COMBI 80 LPG - FROM JAN 97 TO MAR 00 (GC 47-980-12), BRITONY COMBI 80 NAT GAS - FROM JUL 96 TO APR 01 (GC 47-980-12), BRITONY COMBI 80 NAT GAS - JAN 01 TO FEB 02 (GC 47-980-12)
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM + 40 NAT GAS - FROM JUN 97 (GC 41-980-04), BRITONY SYSTEM + 60 NAT GAS - FROM JUN 97
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM 40 NAT GAS - FROM JUN 97 (GC 41-980-02), BRITONY SYSTEM 60 NAT GAS - FROM JUN 97 (GC 41-980-06)
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM II + 100 NAT GAS (GC 41-980-25), BRITONY SYSTEM II + 80 NAT GAS (GC 41-980-16)
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM II 100 NAT GAS (GC 41-980-17), BRITONY SYSTEM II 80 NAT GAS (GC 41-980-15)
manualmanualCHAFFOTEAUX appliance manual — CENTORA GREEN 24 B/P (GC 47-980-21), CENTORA GREEN 24 NAT GAS - FROM APR 2002 TO OCT 2002 (GC 47-980-21), CENTORA GREEN 24 NAT GAS - FROM NOV 2002 (GC 47-980-21), CENTORA GREEN 30 B/P, CENTORA GREEN 30 NAT GAS
manualmanualCHAFFOTEAUX appliance manual — CENTORA GREEN SYSTEM 24 B/P (GC 41-980-12), CENTORA GREEN SYSTEM 24 NAT GAS - FROM AUG 2002 TO OCT 2002 (GC 41-980-12), CENTORA GREEN SYSTEM 24 NAT GAS - FROM NOV 2002 (GC 41-980-12), CENTORA GREEN SYSTEM 30 B/P (GC 41-980-31), CENTORA GREEN SYSTEM 30 NAT GAS (GC 41-980-31)
manualNo technical questions yet for this part.
