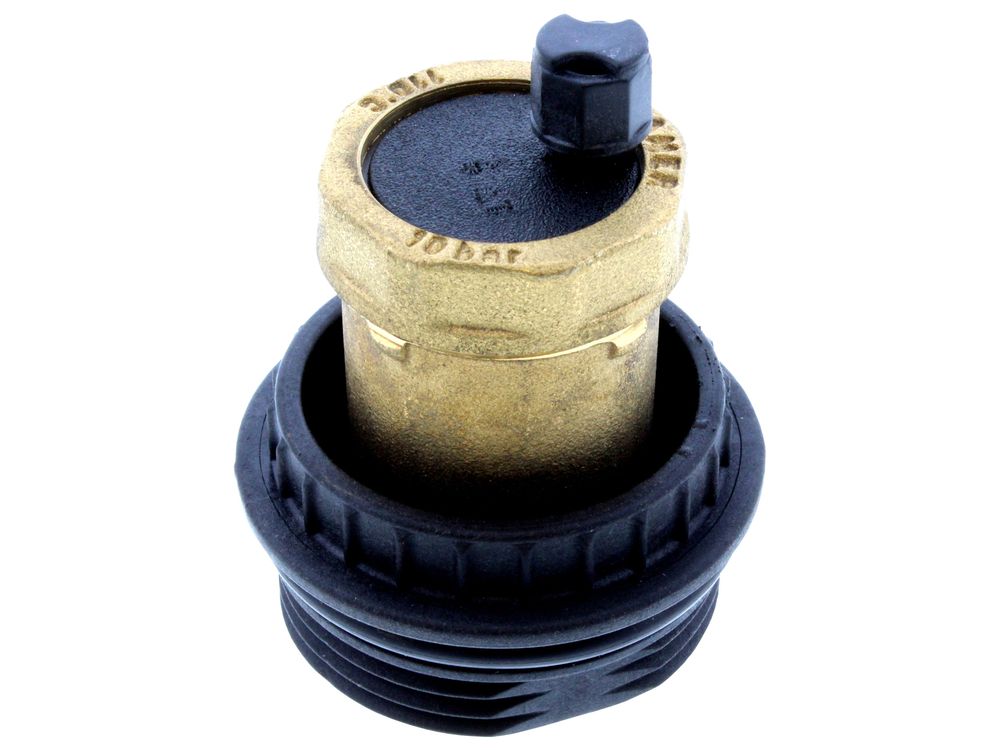

Chaffoteaux Air Separator Head Assembly 61002653
Chaffoteaux 61002653 air separator head assembly for Chaffoteaux and Baxi gas boilers, removing entrained air from the heating circuit.
At a glance
- Part type: Air vents / air valves - auto / manual
- Also known as 1610011
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£33.98
£28.32 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Chaffoteaux 61002653 is an air separator head assembly, the upper section of the automatic air vent fitted to the heating circuit of Chaffoteaux and Baxi gas boilers. It sits at the highest point of the water path and separates entrained air from the circulating water before releasing it, which keeps the pump, heat exchanger and radiators free of airlocks. The assembly is listed under the air vents and air valves category, covering automatic and manual venting arrangements.
Signs this part needs replacing
- Radiators need bleeding repeatedly, with air returning to the system shortly after venting
- Gurgling, bubbling or kettling noises from the boiler during heating or hot water demand
- The pump runs noisily or the boiler locks out on a flow or overheat fault
- Water weeping or staining around the vent head, or a head that no longer seals when closed
- System pressure drifting or fluctuating without an obvious leak on the pipework
Before you order
- Check the GC number and appliance serial plate against the compatibility list, as several Chaffoteaux and Baxi models share similar vent assemblies
- Compare the numbers on the existing part with the alternative part numbers listed below before ordering
- Inspect the sealing washer or O-ring at the base of the assembly and renew it if it is compressed or perished
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Air Vents / Air Valves - Auto / Manual |
|---|
Compliance
| Manufacturer part number (MPN) | 20143 |
|---|---|
| GC number | 277-857 |
| Barcode / EAN | 3234090281422 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1002653, 1002653.00, 61014224, 1610011 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX BAXI GENESIS 80 NAT GAS | 47-077-01 | 47-077-01 | — | — |
| CHAFFOTEAUX BAXI GENESIS 96 NAT GAS | 47-077-02 | 47-077-02 | — | — |
| CHAFFOTEAUX BRITONY COMBI 100 LPG - FROM JAN 97 TO JAN 01 | 47-980-13 | 47-980-13 | — | — |
| CHAFFOTEAUX BRITONY COMBI 100 NAT GAS - FROM AUG 96 TO APR 01 | 47-980-13 | 47-980-13 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 LPG - FROM APR 99 TO MAR 01 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 LPG - FROM JAN 97 TO MAR 00 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 NAT GAS - FROM JUL 96 TO APR 01 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY COMBI 80 NAT GAS - JAN 01 TO FEB 02 | 47-980-12 | 47-980-12 | — | — |
| CHAFFOTEAUX BRITONY SYSTEM + 100 NAT GAS | — | — | — | |
| CHAFFOTEAUX BRITONY SYSTEM + 40 NAT GAS - FROM JUN 97 | 41-980-04 | 41-980-04 | — | — |
Showing 10 of 50 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
CHAFFOTEAUX appliance manual — BRITONY COMBI 100 LPG - FROM JAN 97 TO JAN 01 (GC 47-980-13), BRITONY COMBI 100 NAT GAS - FROM AUG 96 TO APR 01 (GC 47-980-13), BRITONY COMBI 80 LPG - FROM APR 99 TO MAR 01 (GC 47-980-12), BRITONY COMBI 80 LPG - FROM JAN 97 TO MAR 00 (GC 47-980-12), BRITONY COMBI 80 NAT GAS - FROM JUL 96 TO APR 01 (GC 47-980-12), BRITONY COMBI 80 NAT GAS - JAN 01 TO FEB 02 (GC 47-980-12)
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM + 40 NAT GAS - FROM JUN 97 (GC 41-980-04), BRITONY SYSTEM + 60 NAT GAS - FROM JUN 97
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM 40 NAT GAS - FROM JUN 97 (GC 41-980-02), BRITONY SYSTEM 60 NAT GAS - FROM JUN 97 (GC 41-980-06)
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM II + 100 NAT GAS (GC 41-980-25), BRITONY SYSTEM II + 80 NAT GAS (GC 41-980-16)
manualmanualCHAFFOTEAUX appliance manual — BRITONY SYSTEM II 100 NAT GAS (GC 41-980-17), BRITONY SYSTEM II 80 NAT GAS (GC 41-980-15)
manualmanualCHAFFOTEAUX appliance manual — CENTORA GREEN 24 B/P (GC 47-980-21), CENTORA GREEN 24 NAT GAS - FROM APR 2002 TO OCT 2002 (GC 47-980-21), CENTORA GREEN 24 NAT GAS - FROM NOV 2002 (GC 47-980-21), CENTORA GREEN 30 B/P, CENTORA GREEN 30 NAT GAS
manualmanualCHAFFOTEAUX appliance manual — CENTORA GREEN SYSTEM 24 B/P (GC 41-980-12), CENTORA GREEN SYSTEM 24 NAT GAS - FROM AUG 2002 TO OCT 2002 (GC 41-980-12), CENTORA GREEN SYSTEM 24 NAT GAS - FROM NOV 2002 (GC 41-980-12), CENTORA GREEN SYSTEM 30 B/P (GC 41-980-31), CENTORA GREEN SYSTEM 30 NAT GAS (GC 41-980-31)
manualNo technical questions yet for this part.
