Chaffoteaux

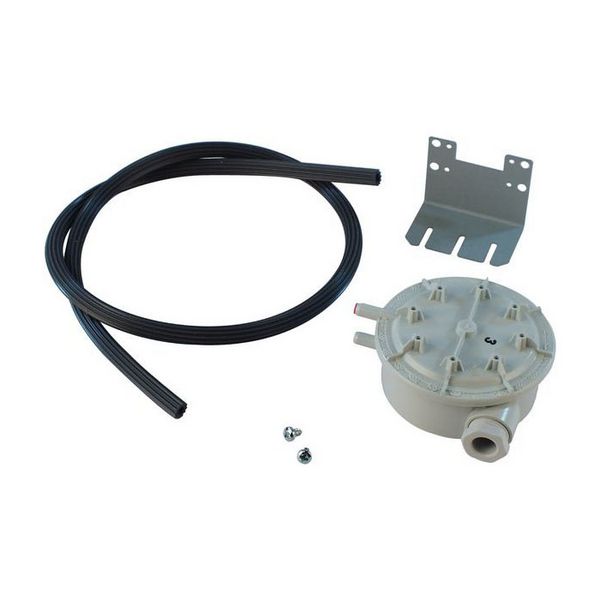

Chaffoteaux Air Pressure Switch 105 Pa 60081725
Chaffoteaux 60081725 air pressure switch rated at 105 Pa, a fan proving device used in Chaffoteaux gas boilers to confirm airflow before ignition.
At a glance
- Part type: Air pressure switch
- Also known as 1610029
£101.44
£84.53 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Chaffoteaux 60081725 is an air pressure switch rated at 105 Pa. It monitors the pressure differential produced by the combustion fan and proves that air is moving through the appliance before the control board permits ignition. The switch sits in the fan and air circuit of Chaffoteaux gas boilers, where it signals the PCB that the fan is running and the flue path is clear.
Signs this part needs replacing
- The boiler locks out or fails to fire even though the fan is running
- Repeated fan or air pressure fault codes appear on the control panel
- The ignition sequence begins and then shuts down within seconds
- Intermittent lockouts clear on reset and then return
- No attempt at ignition is made after a call for heat
Before you order
- Match the part number 60081725 and the 105 Pa rating against the switch being replaced
- Check the alternative number 1610029 against the component removed from the appliance
- Confirm the appliance model and serial number before ordering
Mechanical
| Part type | Air pressure switch |
|---|
Compliance
| Manufacturer part number (MPN) | 60081725 |
|---|---|
| Barcode / EAN | 3234090066029 |
| Commodity code | 8536 50 80 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1610029 |
Logistics
| Pack quantity | 1 |
|---|
No fitment data held for this part.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
